Devon Finsley

Carlisle All Porsche Car Show 2022

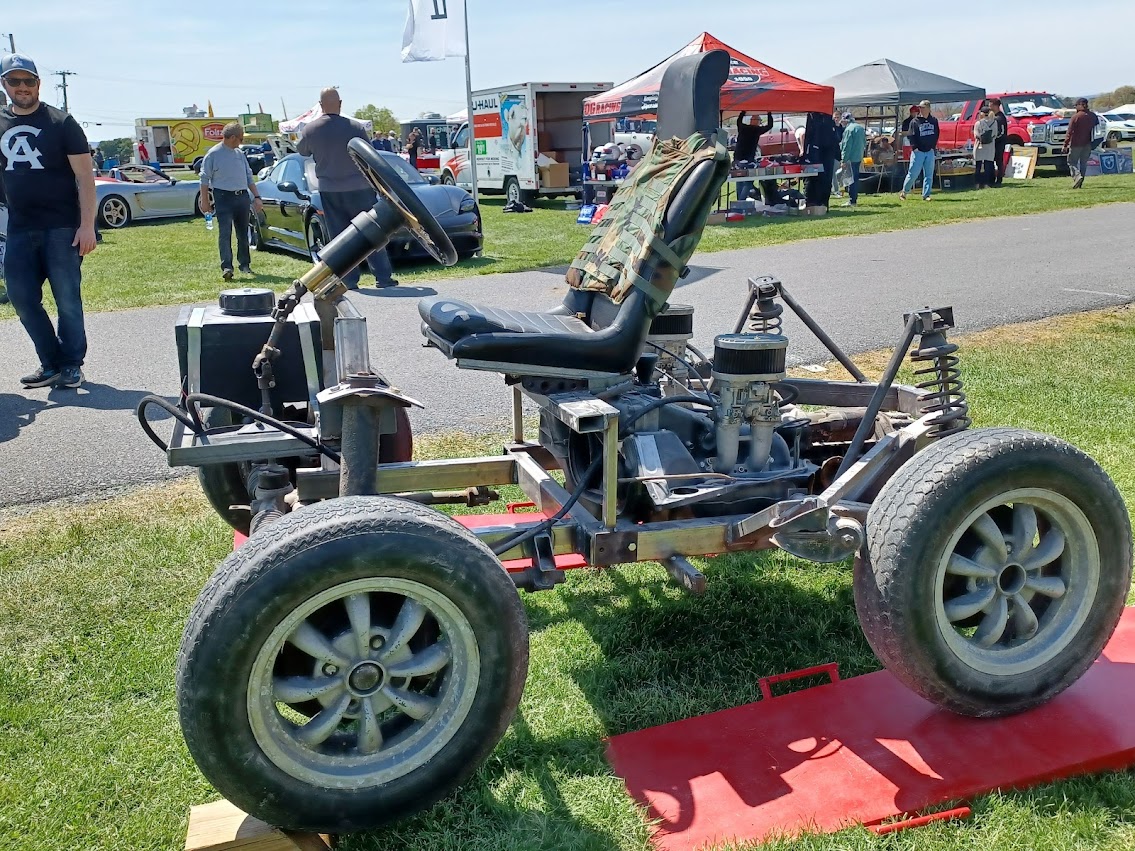

The 2022 Central PA region of the PCA had their annual swap meet at the Carlisle Fairgrounds.  The event was packed—we sold a variety of "scratch and dent" items and saw a lot of great deals from other vendors as well.  The weather was excellent—not something that can be said for every CPA swap meet.

Our next event is our own Stoddard Swap Meet on June 3-4th.  We'll have plenty of more deals and 10% off all regular orders as well.



Ask Brad Q&A: 356 Clutch Cable — May 22nd, 2020

Question:


I have a 356A coupe and getting it ready for driving this Spring. I have the brake and clutch pedals out of the car and thought to replace the clutch cable. But, I’m confused as to which cable to order – the online listings like the Porsche PET aren’t too clear. - A. Cunningham, Monroeville, PA.

Answer:

Yes, there continues to be confusion about the cables due to misleading printed catalogs and present on-line entries. Many guys seem to go by the length of the cable when ordering. All old used cables in the car for 20-40 years have stretched, so length isn’t a good identifier but can be a rough guide. By the way, the difference in lengths of new cables is only about 3 inches. So, a better guide is the thread diameters on both ends of the cable.  If you disregard the very early cable with the outer casing, you’ll see other three cables all have a different combination of end threads. So the thread diameter is the key to which cable you need.


Take a look at the chart below.
Askbradchart

In the chart I added the part number of the  German company, Gemo, that supplies these cables to the after-market.  In the last several years, Gemo has identified their cables with a red sleeve marked with their part number – a convenient way to lessen the confusion with these cables.

See our website for details for cable end fittings for each model/transmission combination. Also, I recommend application of the Wurth product, HHS-K lubricant, on the moving parts at each cable end.

Regards,
Brad Ripley


Ask Brad Q&A: Fuel System Banjo Bolts — April 27th, 2020

Question:
I’m finishing up the rebuild on my 356B Super engine. It’s been a couple of years and just now I’m installing the fuel system. I have several banjo-bolts and can’t figure out which one goes where.  Please enlighten me on banjo bolts. - P. Garvey, Concord, MA.

Answer:
Like many guys owning and working on 356s, you probably have a box of nuts, bolts and other fittings including a few banjo bolts. There were many banjos on Porsche engines, so it’s not surprising you have this question. If you are wondering, What’s a banjo bolt? See this video here. Porsche calls these "hollow bolts."

carbemail1  carbemail2 2 carbemail3.1

For 356 fuel systems there are only two bolts to worry about. First, for the carburetors (Zenith and Solex), the bolt looks like this photo:

banjo1  banjo2

The important dimension is the thread: 12 x 1,25. The length of the bolt is 22,45 and shoulder under the head is 12,00. With many original bolts, the head will be stamped with a “V” which denotes Vergaser, German for carburetor. Part number is 616 100 867 00 .

For fuel pumps, the bolt may look about the same but the thread is 12 x 1,50. Length is 24,00 and shoulder is 12,00. Part number is 900 175 020 01. Bolt looks like this below:

banjo3.1

Note, there is no shoulder under the head, although the same sealing washer is used.
The fiber sealing washer for both sides of the banjo (ID 12,12) for both carbs and pump is part number 616 108 423 00. You’ll need seven washers per engine.

Incidentally, for early 356A engines, the 900 175 020 01 bolt is used in the Solex 32 & 40 carbs and also in the early fuel pump.

I hope this sorts out some of those banjo bolts in your Treasure Box of Fittings.

Regards,
Brad Ripley

Ask Brad: Q&A -- Drum Brake Tips — 4/11/2019

Question:

I have a 1963 356B coupe which needs new front brakes.I’m pretty handy working on cars and want to do the work myself. I see you sell new brake shoes and all the other brake stuff. Tell me what to watch out for with this job. - George B.,  Cleveland, OH.


Answer:

There are no real mysteries in the Porsche 356 drum brakes. So here’s a few words that should help you out. Obviously, the front drums need the most attention and the drums themselves wear out after all these years.  Any cracks in the drum linings are cause to have the drums relined – there are a couple of sources for that service in the US – call me for names. Plus, the Porsche factory has recently manufactured new complete drums. However, usually the drums are good and may only need slight re-surfacing.


Assuming your drums are good, then your major job will be replacing the shoes and wheel cylinders. There are three areas to pay attention to. See photos below of both brake assemblies.

Brake cylinders – two of the cylinders you will receive will go in the upper location and two go in the lower location. Look in the photo of the right-hand assy: The upper cylinder has the adjuster on the left side and the bottom one has the adjustor on the right side.

Brake shoes – all four shoes should be the same design. The new production shoes from Stoddard NLA are modelled after the last and best original version. Previous Porsche versions can be used as well but are not as effective. Check the position of each in the photos.

Look at the shoe in the upper left in the right-hand assy.The thick end goes into the adjuster side of the cylinder and the thin end goes into the non-adjustor side of the lower cylinder.

Some shoes are slightly thicker and/or bent on the end and will bind in the slot. A little filing or slight grinding will take care of that problem. A very slight touch of anti-seize compound at those points will solve any binding.

Springs – carefully note which hole the ends of the springs attach to. Those springs are four of the big springs in your brake hardware kit (the other two are used on the rear brakes). You’ll find that vice-grip type pliers are your best friend to get the ends of these springs into the holes! The other springs are the little coil springs which tension the end caps against the “nails”. Again, there’s no problem if you have the right tool.  Buy one like this at Pep Boys which will take the grief out of setting the seats against the springs.

That should get you started on doing your brake job. Give us a call with any questions.

800-438-8119.

Regards,
Brad Ripley

Ask Brad: Q&A -- Fan Shroud Plugs — 3/28/2019

Question:

I have a 356C. This Spring I’m detailing my engine – painting the engine tin and coil and so forth. I bought two tiny rubber plugs but wonder where they go. The part number on my invoice is 539-06-116.
John C.,  Sacramento, CA.

Answer:
Good question. The Porsche Parts Catalog and the Porsche Electronic Catalog (PET) just shows those little plugs off to the side of the fan house and no real indication of where they go. Take a look at the photo below.  In the background is the fact that the fan housings started out from Volkswagen and were modified by Porsche as the years went by. You can see some metal plugs spot-welded here and there which close up
holes used in other applications, i.e., Pre-A and industrial engines.



You will need two of these plugs. Note, one of the plugs will be hidden after the coil and oil filter brackets are installed.

Give us a call with questions any time.

800-438-8119.

Regards,
Brad Ripley
