Oil and Lubrication

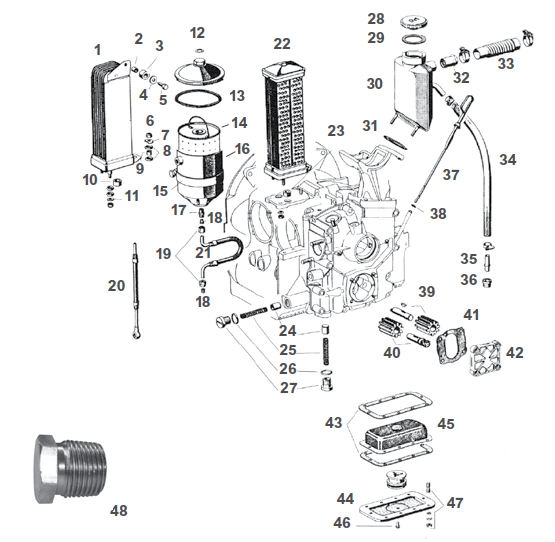

- Diagram # Multiple Usage 546-09-301 Mounting Strap For Generator, Oil Filter Housing, all 356, early 912 54609301$20.31
- Diagram # 24 (lube) 8 (case) # 10 For 356/912 NLA-01-123 Oil Cooler Seal Ring for 356 and 912. 53901123 61601123 NLA01123$5.50
- Diagram # 26 (356/912), 10 (911) 900-123-025-70 Copper Washer, oil pressure relief plug. For 356, 911 and 912. 90012302570$1.40
- Diagram # 27 (356/912) 999-064-010-02 Oil Pressure Relief Plug for 356B, 356C, 912, and 911 (1965-1970) 99906401002$22.87
- Diagram # 31 (356/912) 8 (911) 999-211-004-00 "OEL" Oil Tank Filler Cap for 356B T-6, 356C & 912 99921100400$44.95
- Diagram # 3 For 911 1965-73 / # 32 on 356 / Multiple Uses, Gas and Oil Tanks 901-201-272-00 Tank Cap Seal Fits 356 911 1965-77 912 930 90120127200$2.67
- Diagram # 3 # 35 For 912 616-107-727-00 Air Tube Connector for Oil Breather Hose to right cylinder head, fits 912, 1965-69 61610772700$10.13
- Diagram # 4 # 36 For 912 NLA-702-047-50 Crankcase Breather Hose Grommet For 356 / 912 99970204750 NLA70204750$6.33
-
- Diagram # 45 # 39 For 912 616-107-016-01 Upper Oil Pump Gear Fits Late Style "Large" Oil Pump. For 356B 356C 912 61610701600 61610701601$474.00
- Diagram # 57 # 41 For 912 NLA-107-902-01 Gasket For Oil Pump Cover, Large for Later version. 61610790201 NLA10790201$1.40
- Diagram # 47 # 41 For 912 616-107-902-01 Gasket For Oil Pump Cover fits late style "large" oil pump for 356B, 356C and 912. 61610790201$2.42
- Diagram # 53 #62 900-123-010-20 Oil Pump Tachometer Drive Plug Seal for 356 and 912. 90012301020$0.89
- Diagram # 54 / #63 616-107-109-00 Tachometer Drive Gear Oil Pump Plug for 356B, 356C, and 912 61610710900$32.89
- Diagram # 50 356B # 60 356B Engine #601994 539-07-117 Tachometer Drive Oil Seal fits 356 and 912 53907117$3.41
- Diagram # 33 on 356 616-107-081-00 Oil Filler / Tank Fits 912 65-69 Porsche Classic Part 61610708100$763.52
- Diagram # Multiple Usage for 356 / 911 / 912 SIC-613-571-01 Oil Pressure switch Fits 1965-1968 911 and 1965-1969 912 along with all 356. 90161357101 SIC61357101$10.74
- Diagram # 9 For 911 1965-73 999-113-068-50 Injection Pump Drive Oil Seal 911 1969-1973 with MFI 99911306850$12.00
- Diagram # Multiple use 930-107-272-01 Oil Tank Cap Seal Fits 911 964 993 1965-98 930 912 93010727201$10.72
