Crankshaft

Crankshaft
View as Grid List

61 Items

per page
Set Descending Direction
  1. NLA-102-201-03 200mm Flywheel Fits 356C, 356SC Replaces 61610220103

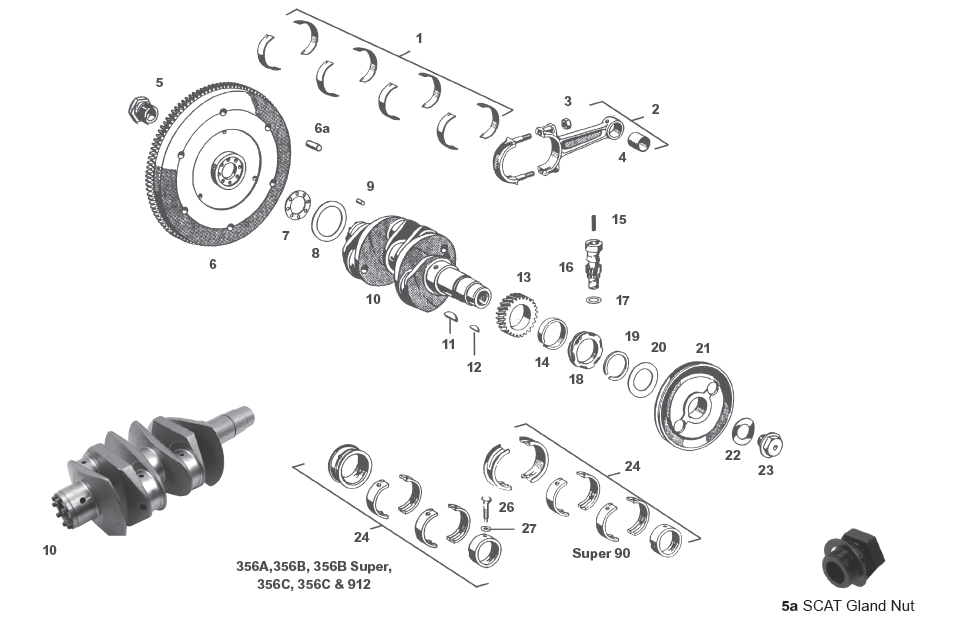

    Diagram # 6 NLA-102-201-03 200mm Flywheel Fits 356C, 356SC Replaces 61610220103
    $663.55
    Add to Wish List
  2. NLA-103-012-05 I-Beam Connecting Rod Set. for 356 and 912. Replaces 61610301205
    Diagram # 2 NLA-103-012-05 I-Beam Connecting Rod Set. for 356 and 912. Replaces 61610301205
    $1,765.76
    Add to Wish List
  3. 616-103-142-62-SET Second Undersize (0.50mm) Rod Bearing Set Fits 356B, 356C 356SC, 912 61610314262SET
    Diagram # 1 616-103-142-62-SET Second Undersize (0.50mm) Rod Bearing Set Fits 356B, 356C 356SC, 912 61610314262SET
    $58.55
    Add to Wish List
  4. 539-02-113 Genuine Porsche 4 Hole Crank Pulley 356A, 356B, 356C, & 912 53902113
    Diagram # 21 539-02-113 Genuine Porsche 4 Hole Crank Pulley 356A, 356B, 356C, & 912 53902113
    $514.33
    Add to Wish List
  5. 502-02-301 Flywheel Metal Plate Gasket, Fits 356 and 912 up to 1969. 50202301
    Diagram # 7 502-02-301 Flywheel Metal Plate Gasket, Fits 356 and 912 up to 1969. 50202301
    $2.97
    Add to Wish List
  6. 369-02-107-2 Flywheel Spacer OE Part .85mm All 356 and 912 (except Super 90) 369021072
    Diagram # 8 369-02-107-2 Flywheel Spacer OE Part .85mm All 356 and 912 (except Super 90) 369021072
    $34.27
    Add to Wish List
  7. 369-02-107-1 Flywheel Spacer OE Part .8mm All 356 and 912 (except Super 90) 369021071
    Diagram # 8 369-02-107-1 Flywheel Spacer OE Part .8mm All 356 and 912 (except Super 90) 369021071
    $34.27
    Add to Wish List
  8. 616-103-142-52-SET Rod Bearing Set for 356B, 356C and 912. First Undersize (.25mm) 61610314252SET
    Diagram # 1 616-103-142-52-SET Rod Bearing Set for 356B, 356C and 912. First Undersize (.25mm) 61610314252SET
    $57.89
    Add to Wish List
  9. 616-103-142-02-SET Standard Rod Bearing Set, Alloy, for 356B, 356C and 912 61610314202SET
    Diagram # 1 616-103-142-02-SET Standard Rod Bearing Set, Alloy, for 356B, 356C and 912 61610314202SET
    $59.32
    Add to Wish List
  10. NLA-103-012-06 Crower H Beam Connecting Rod Set . Fits 356 and 912 Replaces 61610301206
    Diagram # 2 NLA-103-012-06 Crower H Beam Connecting Rod Set . Fits 356 and 912 Replaces 61610301206
    $1,657.50
    Add to Wish List
  11. 502-03-114 Connecting Rod Nut All 356 and 912 50203114
    Diagram # 3 502-03-114 Connecting Rod Nut All 356 and 912 50203114
    $5.69
    Add to Wish List
  12. SIC-103-131-01 Solid Piston Wrist Pin Bushing Fits 356 911 1965-89 930 912 914 Replaces 90110313101
    Diagram # Multiple use SIC-103-131-01 Solid Piston Wrist Pin Bushing Fits 356 911 1965-89 930 912 914 Replaces 90110313101
    $12.49
    Add to Wish List
  13. NLA-102-025-02 Gland Nut, With internal roller bearing instead of bronze bushing. Made by SCAT. Replaces 61610202502
    Diagram # 5 NLA-102-025-02 Gland Nut, With internal roller bearing instead of bronze bushing. Made by SCAT. Replaces 61610202502
    $59.54
    Add to Wish List
  14. NLA-102-025-01 Stoddard Special Flywheel Gland Nut for all 356 and 912 Engines Replaces 61610202501
    Diagram # 5 NLA-102-025-01 Stoddard Special Flywheel Gland Nut for all 356 and 912 Engines Replaces 61610202501
    $41.58
    Add to Wish List
  15. 616-102-204-01 200mm Flywheel for 912, Made in Germany / Sebro. 61610220401
    Diagram # 6 616-102-204-01 200mm Flywheel for 912, Made in Germany / Sebro. 61610220401
    $459.30
    Add to Wish List
  16. 369-02-107-6 Flywheel Spacer 1.05mm All 356 and 912 (except Super 90) 369021076
    Diagram # 8 369-02-107-6 Flywheel Spacer 1.05mm All 356 and 912 (except Super 90) 369021076
    $34.27
    Add to Wish List
  17. NLA-02-107-7 Flywheel Thrust Washer Spacer 1.1mm, fits all 356, 912 (except Super 90).
    Diagram # 8 NLA-02-107-7 Flywheel Thrust Washer Spacer 1.1mm, fits all 356, 912 (except Super 90).
    $28.12
    Add to Wish List
  18. NLA-02-107-6 Flywheel Thrust Washer Spacer 1.05mm, fits all 356, 912 (except Super 90).
    Diagram # 8 NLA-02-107-6 Flywheel Thrust Washer Spacer 1.05mm, fits all 356, 912 (except Super 90).
    $27.58
    Add to Wish List
  19. NLA-02-107-3 Flywheel Thrust Washer Spacer 0.9mm, used to set crankshaft end play
    Diagram # 8 NLA-02-107-3 Flywheel Thrust Washer Spacer 0.9mm, used to set crankshaft end play
    $27.04
    Add to Wish List
  20. 369-02-107-5 Flywheel Spacer OE Part 1.0mm All 356 and 912 (except Super 90) 369021075
    Diagram # 8 369-02-107-5 Flywheel Spacer OE Part 1.0mm All 356 and 912 (except Super 90) 369021075
    $34.27
    Add to Wish List
  21. 369-02-107-4 Flywheel Spacer OE Part .95mm All 356 and 912 (except Super 90) 369021074
    Diagram # 8 369-02-107-4 Flywheel Spacer OE Part .95mm All 356 and 912 (except Super 90) 369021074
    $34.27
    Add to Wish List
  22. 369-02-107-3 Flywheel Spacer OE Part .9mm All 356 and 912 (except Super 90) 369021073
    Diagram # 8 369-02-107-3 Flywheel Spacer OE Part .9mm All 356 and 912 (except Super 90) 369021073
    $34.27
    Add to Wish List
  23. 900-109-004-00 Dowel Pin For Flywheel. Fits 356 and 912. 90010900400
    Diagram # 9 900-109-004-00 Dowel Pin For Flywheel. Fits 356 and 912. 90010900400
    $4.13
    Add to Wish List
  24. NLA-102-015-05 High Performance 356SC or 912 Counterweighted Crankshaft - Machined from Forged Billet 4340 Alloy, Balanced, Knife-Edged--Just about Bullet Proof.
    Diagram # 10 NLA-102-015-05 High Performance 356SC or 912 Counterweighted Crankshaft - Machined from Forged Billet 4340 Alloy, Balanced, Knife-Edged--Just about Bullet Proof.
    $2,385.00
    Add to Wish List
  25. NLA-102-015-01 Counterweighted Standard Stroke Crankshaft - 4340 Chromoly Steel - 18 pounds For 356SC and 912 Replaces 61610201501
    Diagram # 10 NLA-102-015-01 Counterweighted Standard Stroke Crankshaft - 4340 Chromoly Steel - 18 pounds For 356SC and 912 Replaces 61610201501
    $1,399.97
    Add to Wish List
  26. 901-102-147-00 Timing Gear Woodruff Key Fits 356, 912 1965-1969, 911 964 993 1965-1998. 90110214700
    Diagram # 11 (356), 18 (911 65-77), 17 (911 78-89) 901-102-147-00 Timing Gear Woodruff Key Fits 356, 912 1965-1969, 911 964 993 1965-1998. 90110214700
    $9.06
    Add to Wish List
  27. N-012-709-1 Woodruff Key for Pulley, fits 356, 912 and 914. N0127091
    Diagram # 12 N-012-709-1 Woodruff Key for Pulley, fits 356, 912 and 914. N0127091
    $1.96
    Add to Wish List
  28. 539-02-105 Steel Crankshaft Gear, Fits 356 and 912. 53902105
    Diagram # 13 539-02-105 Steel Crankshaft Gear, Fits 356 and 912. 53902105
    $330.48
    Add to Wish List
  29. 539-102-106-00 Crankshaft Spacer fits all 356 and 912 53910210600
    Diagram # 14 539-102-106-00 Crankshaft Spacer fits all 356 and 912 53910210600
    $44.98
    Add to Wish List
  30. 539-09-103 Distributor Drive Spring fits all 356 and 912 53909103
    Diagram # 15 539-09-103 Distributor Drive Spring fits all 356 and 912 53909103
    $4.58
    Add to Wish List
  31. NLA-09-102 Distributor Drive Shim Fits all 356 and 912. Replaces 53909102
    Diagram # 17 NLA-09-102 Distributor Drive Shim Fits all 356 and 912. Replaces 53909102
    $10.60
    Add to Wish List
  32. 900-028-024-01 #4 Bearing Set Screw Washer9mm x 14mm Zinc for 356 and 912. 90002802401
    Diagram # Multiple Use 900-028-024-01 #4 Bearing Set Screw Washer9mm x 14mm Zinc for 356 and 912. 90002802401
    $1.20
    Add to Wish List
  33. 901-102-115-01 Distributor Drive Gear for 356, 912, 911 1965-77, 914-6, 914-4, and 912E
    Diagram # Multiple use 901-102-115-01 Distributor Drive Gear for 356, 912, 911 1965-77, 914-6, 914-4, and 912E
    $111.23
    Add to Wish List
  34. 901-102-148-00 Lock Snap Ring For Brass Gear 2.4mm, fits 356, 912 (excluding 912e) and 911 from 1965-1998, 914-6 90110214800
    Diagram # 19 (356) # 19 (912) #23 (911 65-77) 901-102-148-00 Lock Snap Ring For Brass Gear 2.4mm, fits 356, 912 (excluding 912e) and 911 from 1965-1998, 914-6 90110214800
    $6.01
    Add to Wish List
  35. 616-102-163-01 Crank Pulley Sealing Washer, Fits All 356 and 912 61610216301
    Diagram # 20 (356) 12 (912) 616-102-163-01 Crank Pulley Sealing Washer, Fits All 356 and 912 61610216301
    $10.42
    Add to Wish List
  36. SIC-102-001-00 5-inch Aluminum Power Pulley for 356SC and 912 engines. 127mm / 5-inches with Degree marks. Spins fan slower for less parasitic drag.
    Diagram # 21 SIC-102-001-00 5-inch Aluminum Power Pulley for 356SC and 912 engines. 127mm / 5-inches with Degree marks. Spins fan slower for less parasitic drag.
    $198.00
    Add to Wish List
  37. NLA-02-113 4-hole Crank Pulley for all 356A, 356B, 356C, and 912 Replaces 53902113 61602113
    Diagram # 21 (356) 11 (912) NLA-02-113 4-hole Crank Pulley for all 356A, 356B, 356C, and 912 Replaces 53902113 61602113
    $346.62
    Add to Wish List
  38. 539-02-111 23mm x 44mm Zinc Crank pulley Lock Washer, Fits 356 and 912. 53902111
    Diagram # 22 (356) 12 (912) 539-02-111 23mm x 44mm Zinc Crank pulley Lock Washer, Fits 356 and 912. 53902111
    $4.35
    Add to Wish List
  39. 539-02-112 Crank Pulley Bolt,fits all 356 and 912 53902112
    Diagram # 23 (356) 13 (912) 539-02-112 Crank Pulley Bolt,fits all 356 and 912 53902112
    $45.57
    Add to Wish List
  40. 616-100-138-95 Main Bearing Set, Steel, for S90,356C and 912 55mm crank. Third .75mm case/standard inside crank. 61610013895
    Diagram # # 24 (356) 14 (912) 616-100-138-95 Main Bearing Set, Steel, for S90,356C and 912 55mm crank. Third .75mm case/standard inside crank. 61610013895
    $430.30
    Add to Wish List
  41. NLA-100-138-90 Main Bearing Set, Steel, for S90,356C and 912 55mm crank. Second .50mm case/standard inside crank.
    Diagram # # 24 (356) 14 (912) NLA-100-138-90 Main Bearing Set, Steel, for S90,356C and 912 55mm crank. Second .50mm case/standard inside crank.
    $450.27
    Add to Wish List
  42. NLA-100-138-65 Main Bearing Set, Steel, for S90,356C and 912 55mm crank. standard case/3rd .75mm inside crank. Replaces 61610013865
    Diagram # 24 (356) 14 (912) NLA-100-138-65 Main Bearing Set, Steel, for S90,356C and 912 55mm crank. standard case/3rd .75mm inside crank. Replaces 61610013865
    $452.21
    Add to Wish List
  43. 616-100-138-70 Main Bearing Set, Alloy, for S90, SC, 356C, 912 55mm crank. 1st .25mm case/1st .25mm inside crank. 61610013870
    Diagram # 24 (356) 14 (356) 616-100-138-70 Main Bearing Set, Alloy, for S90, SC, 356C, 912 55mm crank. 1st .25mm case/1st .25mm inside crank. 61610013870
    $597.48
    Add to Wish List
  44. NLA-100-138-75 Main Bearing Set, Steel, for S90,356C and 912 55mm crank. First .25mm case/Second .50mm inside crank. Replaces 61610013875
    Diagram # 24 (356) 14 (912) NLA-100-138-75 Main Bearing Set, Steel, for S90,356C and 912 55mm crank. First .25mm case/Second .50mm inside crank. Replaces 61610013875
    $440.88
    Add to Wish List
  45. NLA-100-138-70 Main Bearing Set, Steel, for S90,356C and 912 55mm crank. 1st .25mm case/1st .25mm inside crank. Replaces 61610013870
    Diagram # 24 (356) 14 (912) NLA-100-138-70 Main Bearing Set, Steel, for S90,356C and 912 55mm crank. 1st .25mm case/1st .25mm inside crank. Replaces 61610013870
    $441.31
    Add to Wish List
  46. NLA-100-138-60 Main Bearing Set, Steel, for S90,356C and 912 55mm crank. First .25mm Case/Standard inside crank. Replaces 61610013860
    Diagram # 24 (356) 14 (912) NLA-100-138-60 Main Bearing Set, Steel, for S90,356C and 912 55mm crank. First .25mm Case/Standard inside crank. Replaces 61610013860
    $466.00
    Add to Wish List
  47. NLA-100-138-55 Main Bearing Set, Steel, for S90,356C and 912 55mm crank. Standard case/Second .50mm inside crank. Replaces 61610013855
    Diagram # 24 (356) 14 (912) NLA-100-138-55 Main Bearing Set, Steel, for S90,356C and 912 55mm crank. Standard case/Second .50mm inside crank. Replaces 61610013855
    $475.90
    Add to Wish List
  48. NLA-100-138-50 Main Bearing Set, Steel, for S90,356C and 912 55mm crank. Standard case/First .25mm inside crank. Replaces 61610013850
    Diagram # 24 (356) 14 (912) NLA-100-138-50 Main Bearing Set, Steel, for S90,356C and 912 55mm crank. Standard case/First .25mm inside crank. Replaces 61610013850
    $420.89
    Add to Wish List
  49. NLA-100-138-00 Main Bearing Set, Steel, for 356C and 912 55mm crank. Standard case/Standard inside crank. Replaces 61610013800
    Diagram # 24 (356) 14 (912) NLA-100-138-00 Main Bearing Set, Steel, for 356C and 912 55mm crank. Standard case/Standard inside crank. Replaces 61610013800
    $431.23
    Add to Wish List
  50. 616-100-138-85 Main Bearing Set, Steel, for S90,356C and 912 55mm crank. First .25mm case/Third .75mm inside crank.
    Diagram # 24 (356) 14 (912) 616-100-138-85 Main Bearing Set, Steel, for S90,356C and 912 55mm crank. First .25mm case/Third .75mm inside crank.
    $442.60
    Add to Wish List
  51. 616-100-138-50 Main Bearing Set, Steel, for S90,356C and 912 55mm crank. Standard case/First .25mm inside crank. 61610013850
    Diagram # 24 (356) 14 (912) 616-100-138-50 Main Bearing Set, Steel, for S90,356C and 912 55mm crank. Standard case/First .25mm inside crank. 61610013850
    $954.37
    Add to Wish List
  52. 616-101-172-00 #1 Bearing Dowel Pin, Fits 356C, SC and 912. 61610117200
    Diagram # 25 (356) 9 (912) 616-101-172-00 #1 Bearing Dowel Pin, Fits 356C, SC and 912. 61610117200
    $15.27
    Add to Wish List
  53. 539-01-110 Bearing Dowel Pin for bearing #1, 356A/B Normal, Super 53901110
    539-01-110 Bearing Dowel Pin for bearing #1, 356A/B Normal, Super 53901110
    $7.46
    Add to Wish List
  54. SIC-102-992-41 Speedi Sleeve - Flywheel Hub End, Fits 356 and 912 up to 1969.
    Diagram # 29 SIC-102-992-41 Speedi Sleeve - Flywheel Hub End, Fits 356 and 912 up to 1969.
    $60.85
    Add to Wish List
  55. SIC-102-991-89 Speedi Sleeve for Crank Pulley Sealing Surface. Solves Sealing Issues from Wear Grooves on Pulley. Fits All 356 and 912 up to 1969.
    Diagram # 28 SIC-102-991-89 Speedi Sleeve for Crank Pulley Sealing Surface. Solves Sealing Issues from Wear Grooves on Pulley. Fits All 356 and 912 up to 1969.
    $53.76
    Add to Wish List
  56. 546-102-110-01 Distributor Timing Gear, Fits 356, 912 and 911 up to 1977 54610211001
    Diagram # Multiple Usage 546-102-110-01 Distributor Timing Gear, Fits 356, 912 and 911 up to 1977 54610211001
    $129.97
    Add to Wish List
  57. NLA-02-107-5 Flywheel Thrust Washer Spacer 1.0mm to set crankshaft end play. Fits 356 912 except Super 90
    Diagram # 8 NLA-02-107-5 Flywheel Thrust Washer Spacer 1.0mm to set crankshaft end play. Fits 356 912 except Super 90
    $32.93
    Add to Wish List
  58. NLA-02-107-4 Flywheel Thrust Washer Spacer .95mm to set crankshaft end play. Fits 356 912 except Super 90
    Diagram # 8 NLA-02-107-4 Flywheel Thrust Washer Spacer .95mm to set crankshaft end play. Fits 356 912 except Super 90
    $27.45
    Add to Wish List
  59. NLA-02-107-1 Flywheel Thrust Washer Spacer .8mm to set end play. Fits 356, 912 except Super 90
    Diagram # 8 NLA-02-107-1 Flywheel Thrust Washer Spacer .8mm to set end play. Fits 356, 912 except Super 90
    $24.58
    Add to Wish List
  60. NLA-02-107-2 Flywheel Thrust Washer Spacer .85mm, fits all 356, 912 (except Super 90).
    Diagram # 8 NLA-02-107-2 Flywheel Thrust Washer Spacer .85mm, fits all 356, 912 (except Super 90).
    $30.07
    Add to Wish List
  61. 539-01-115 Main Bearing Set Screw-Set screw for bearing #4, fits all 356 and 912 53901115
    Diagram # 26 (356) 15 (912) 539-01-115 Main Bearing Set Screw-Set screw for bearing #4, fits all 356 and 912 53901115
    $17.94
    Add to Wish List
