Porsche 911

Start by selecting
your vehicle

Porsche Parts Diagrams

Exploded Porsche parts diagrams for the 356, 911, 912, 914, 924 and every model in our catalog: find each part with its Porsche part number, check that it fits your car, and order it.

Live demo

Try an interactive diagram

ALTERNATOR BELT/ ALTERNATOR PULLEY · 1969 Porsche 911 2.0 T Coupe
Hover a part on the diagram or in the list, click to select it, scroll to zoom.

13 parts
  1. 1
    Fan Housing Strap. 911 From 1965-1994
    964 106 251 20 Authentic Ship Today (before 5:00pm)
    $104.34
    Fan Housing Strap. 911 From 1965-1994
    Part details →
  2. 2
    SOCKET HEAD BOLT
    900 075 126 03 Genuine Usually ships in 4 business days
    $3.37
    SOCKET HEAD BOLT
    Recommended quantity: 2
    Part details →
  3. 3

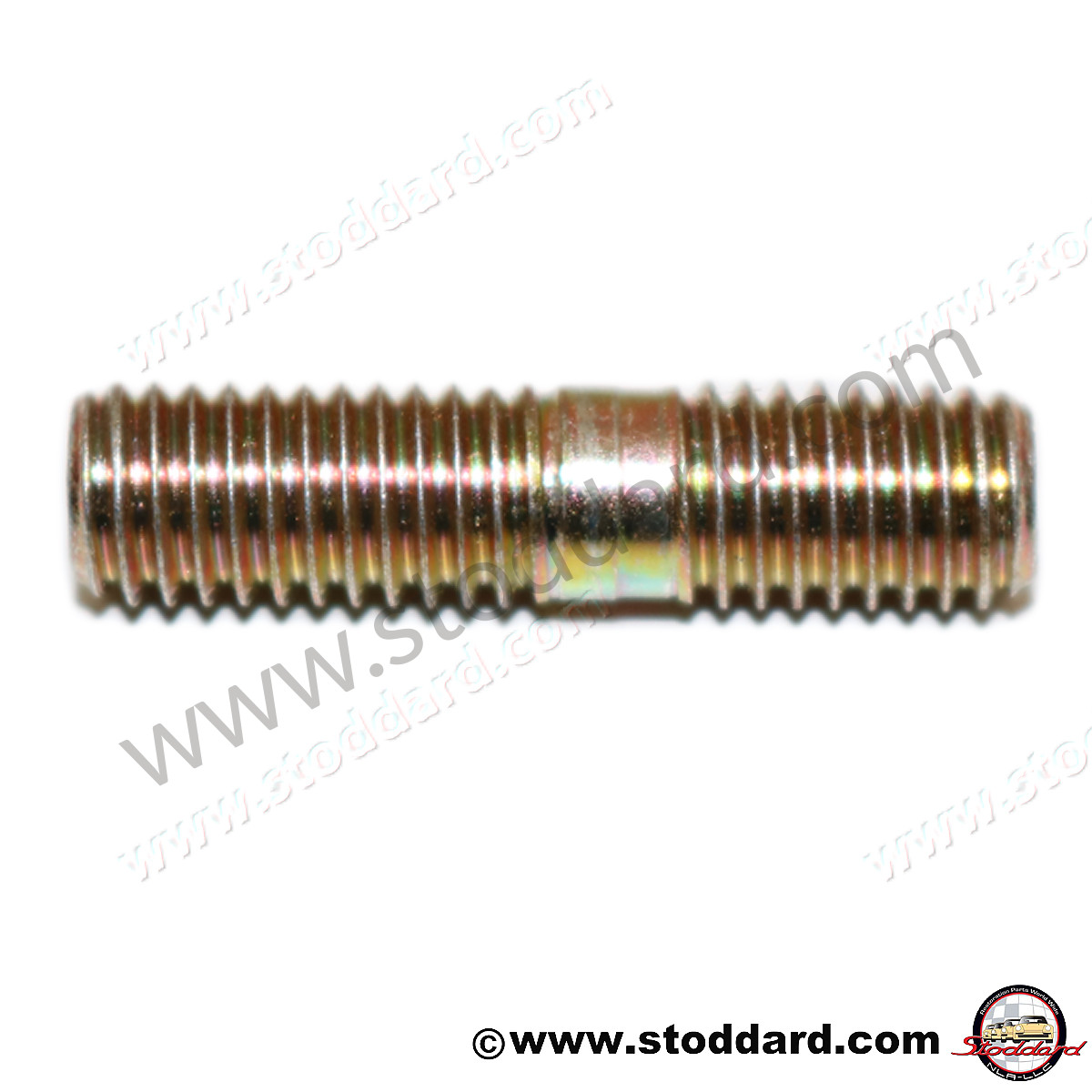

    Stud
    999 062 073 02 Genuine Ship Today (before 5:00pm)
    $6.77
    Stud 8 x 15 MM
    8 x 15 MM
    Recommended quantity: 2
    Part details →
  4. 4

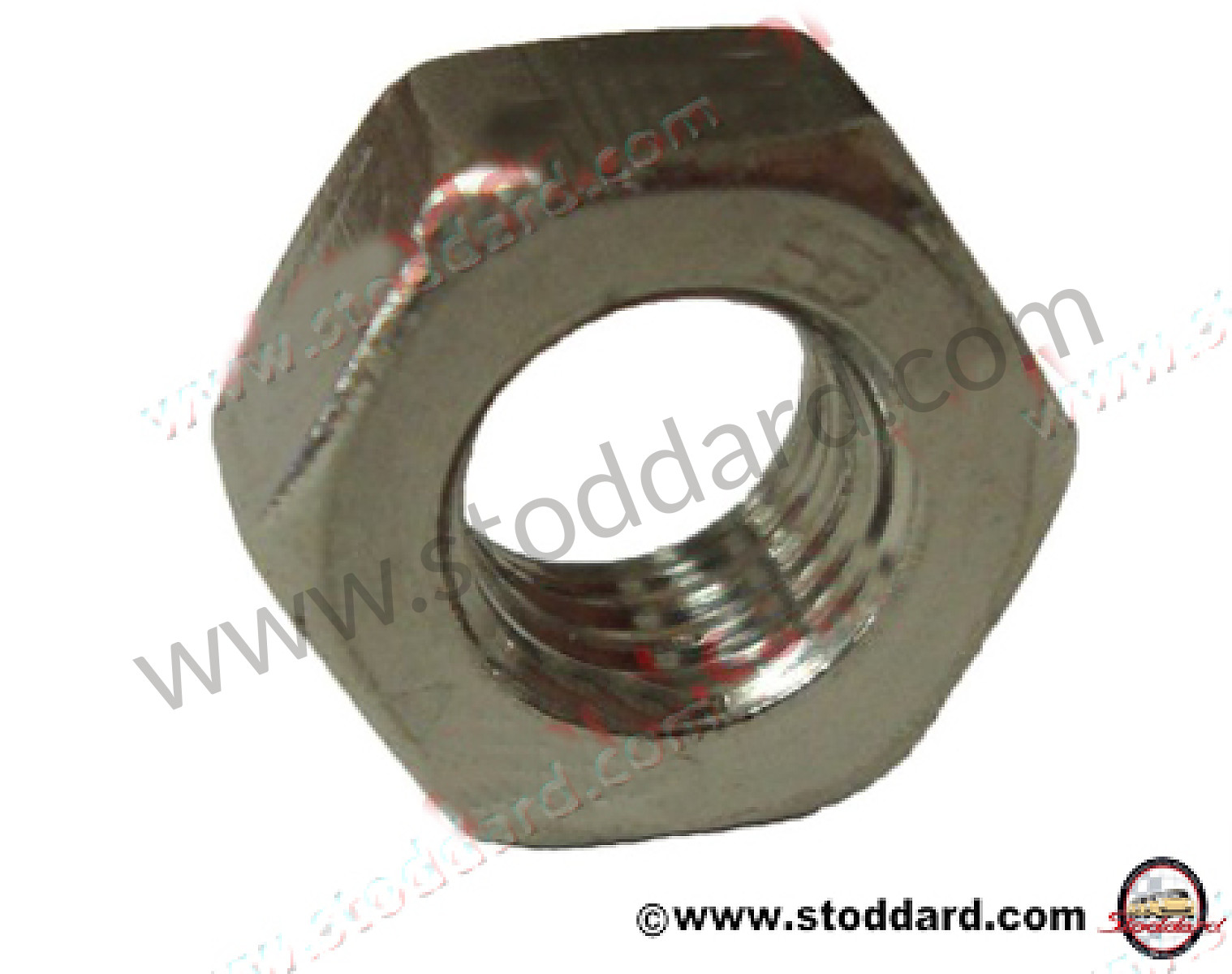

    6mm Nut 356 / 911 1965-89 912 914
    900 076 010 02 Stoddard Ship Today (before 5:00pm)
    $0.40
    6mm Nut 356 / 911 1965-89 912 914
    Recommended quantity: 6
    Part details →
  5. 5

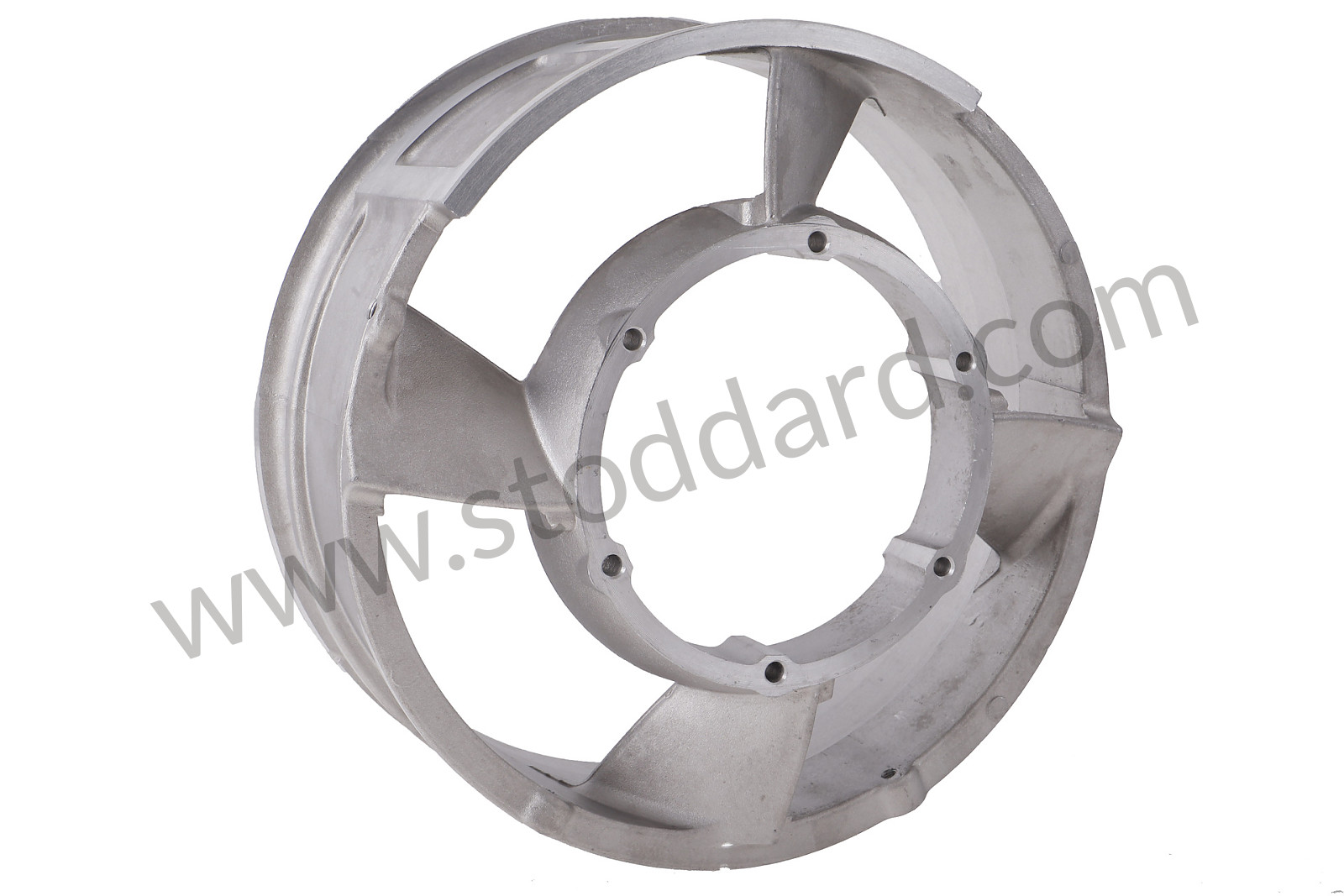

    FAN HOUSING
    A 901 106 101 04 Authentic Usually ships in 6 business days
    $1,034.31
    FAN HOUSING COMPLETE / 250 MM
    COMPLETE / 250 MM
    Part details →
  6. 6
    6mm X 12mm Spring Washer For Cam Box Cover 911 964 993 1965-1998
    2 versions Ship Today (before 5:00pm)
    From $0.25
    Choose ›
    6mm X 12mm Spring Washer For Cam Box Cover 911 964 993 1965-1998 2 Versions available for this part
    2 Versions available for this part
    Choose a version Part details →
  7. 7

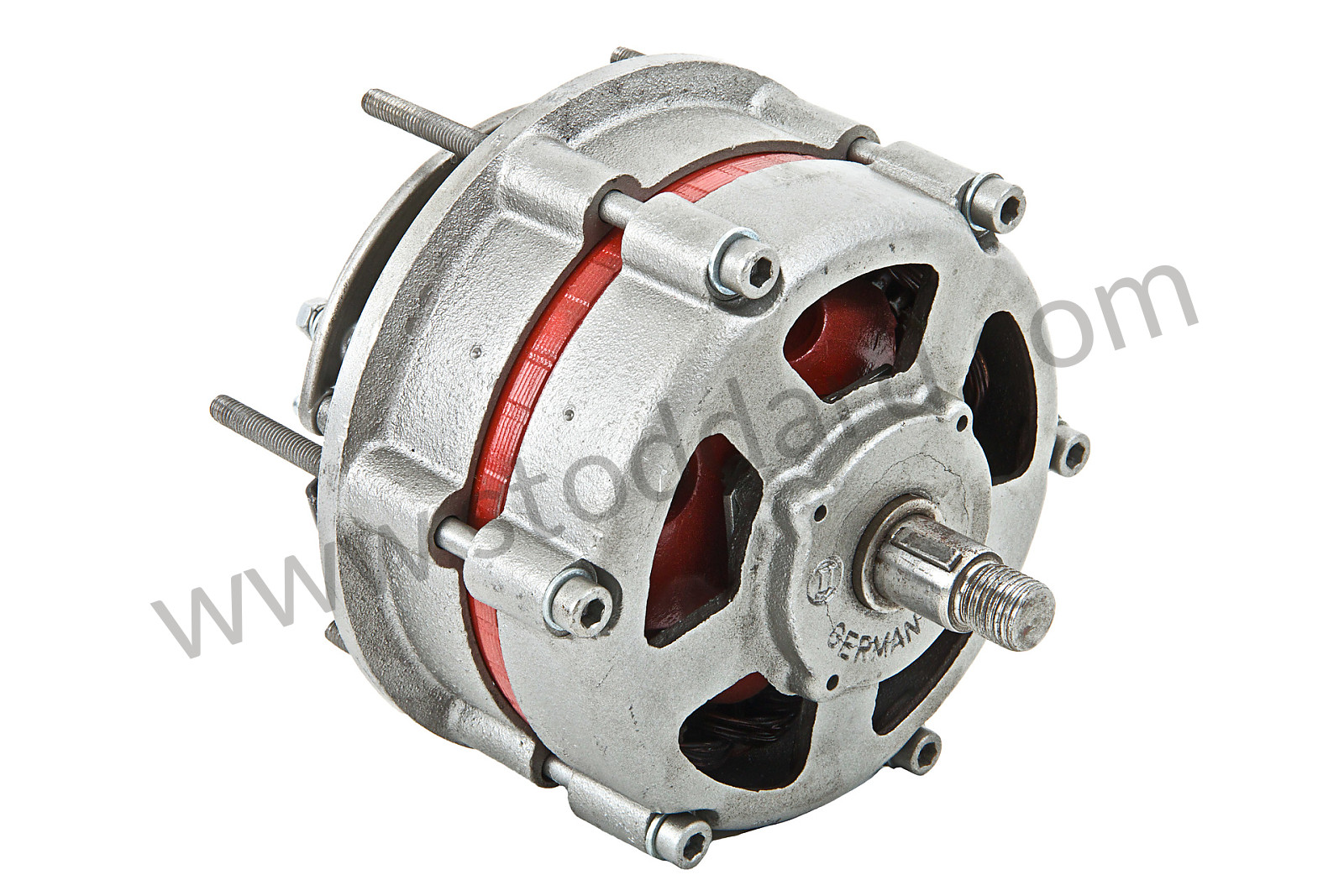

    BOSCH ALTERNATOR
    99A 000 072 943 Stoddard Currently out of stock. Will be ordered from our supplier
    $404.03
    BOSCH ALTERNATOR RENOVATED (Send us your old part to receive the new one)
    RENOVATED (Send us your old part to receive the new one)
    Part details →
  8. 8

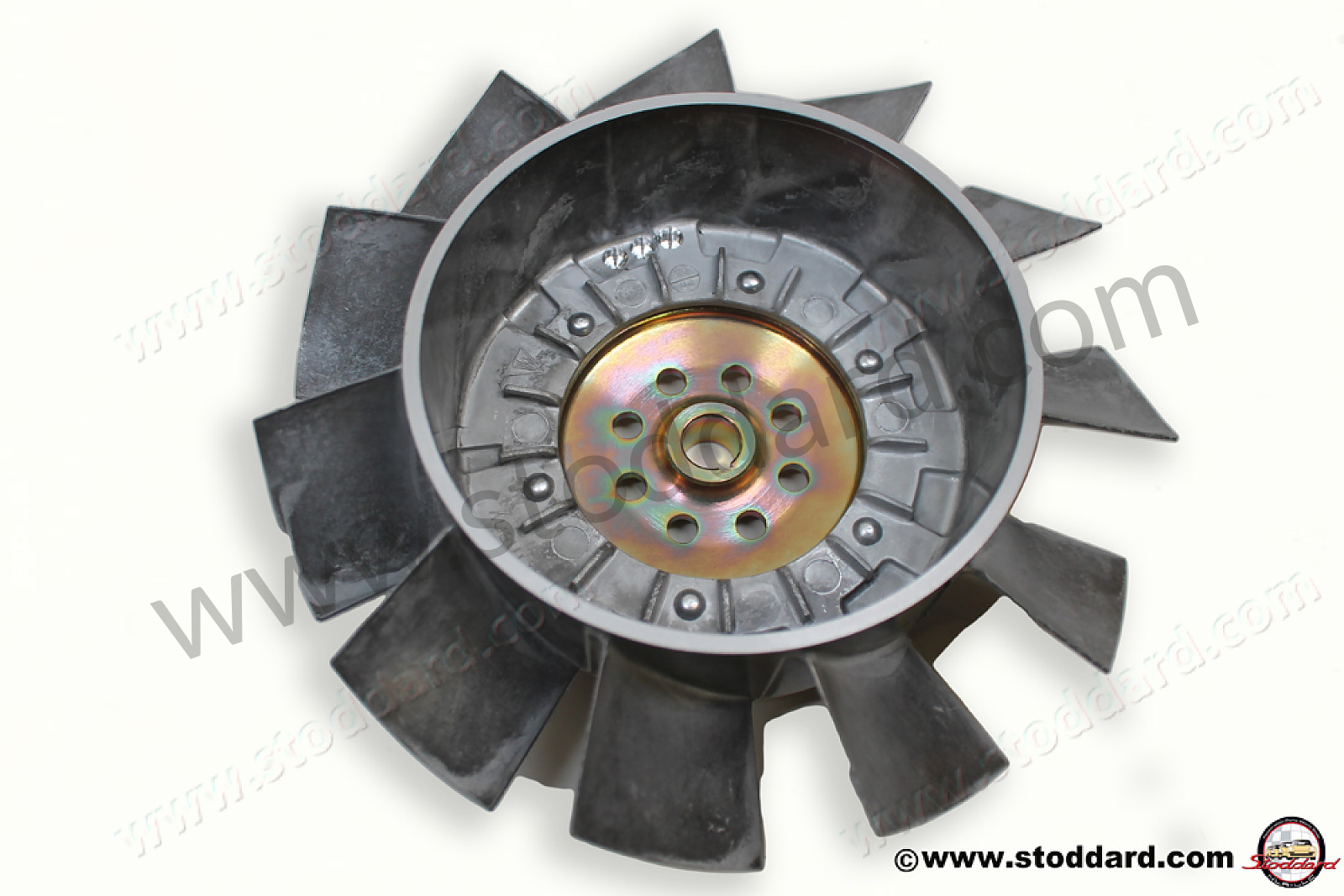

    11-Blade Alternator Cooling Fan Impeller 911 1965-1975
    901 106 010 03 Genuine Usually ships in 4 business days
    $1,582.42
    11-Blade Alternator Cooling Fan Impeller 911 1965-1975 250MM
    250MM
    Part details →
  9. 9

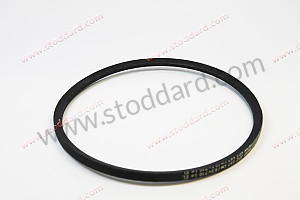

    Alternator Belt (9.5 X 710), Original Style, Non-Cogged. 911 1965-1975.
    2 versions Ship Today (before 5:00pm)
    From $6.60
    Choose ›
    Alternator Belt (9.5 X 710), Original Style, Non-Cogged. 911 1965-1975. 2 Versions available for this part
    2 Versions available for this part
    Choose a version Part details →
  10. 10

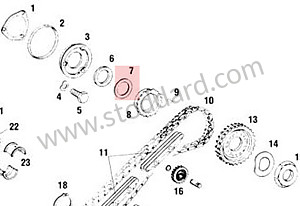

    Camshaft And Alternator Pulley Drive Shim 911 964 993 1965-1998 And 914-6
    901 105 561 00 Genuine Ship Today (before 5:00pm)
    $5.45
    Camshaft And Alternator Pulley Drive Shim 911 964 993 1965-1998 And 914-6 Epaisseur 0.55 MM
    Epaisseur 0.55 MM
    Shown 2× on this diagram
    Part details →
  11. 11
    Outer Pulley Half. 911 930 1965-1977
    2 versions Ship Today (before 5:00pm)
    From $35.44
    Choose ›
    Outer Pulley Half. 911 930 1965-1977 2 Versions available for this part
    2 Versions available for this part
    Choose a version Part details →
  12. 12

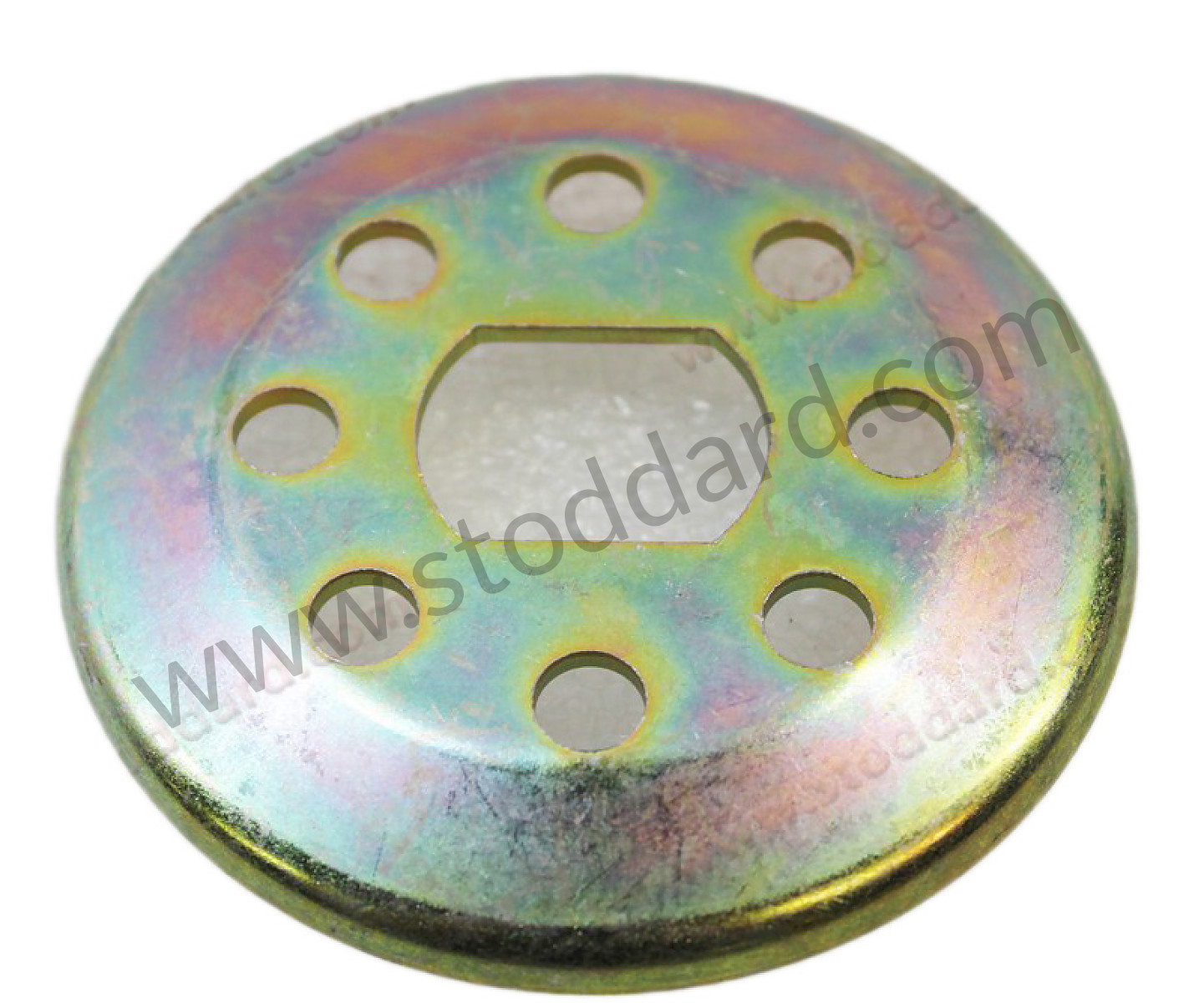

    Tensioning Cap For Generator 911 65-73
    2 versions Usually ships in 4 business days
    From $18.36
    Choose ›
    Tensioning Cap For Generator 911 65-73 2 Versions available for this part
    2 Versions available for this part
    Choose a version Part details →
  13. 13

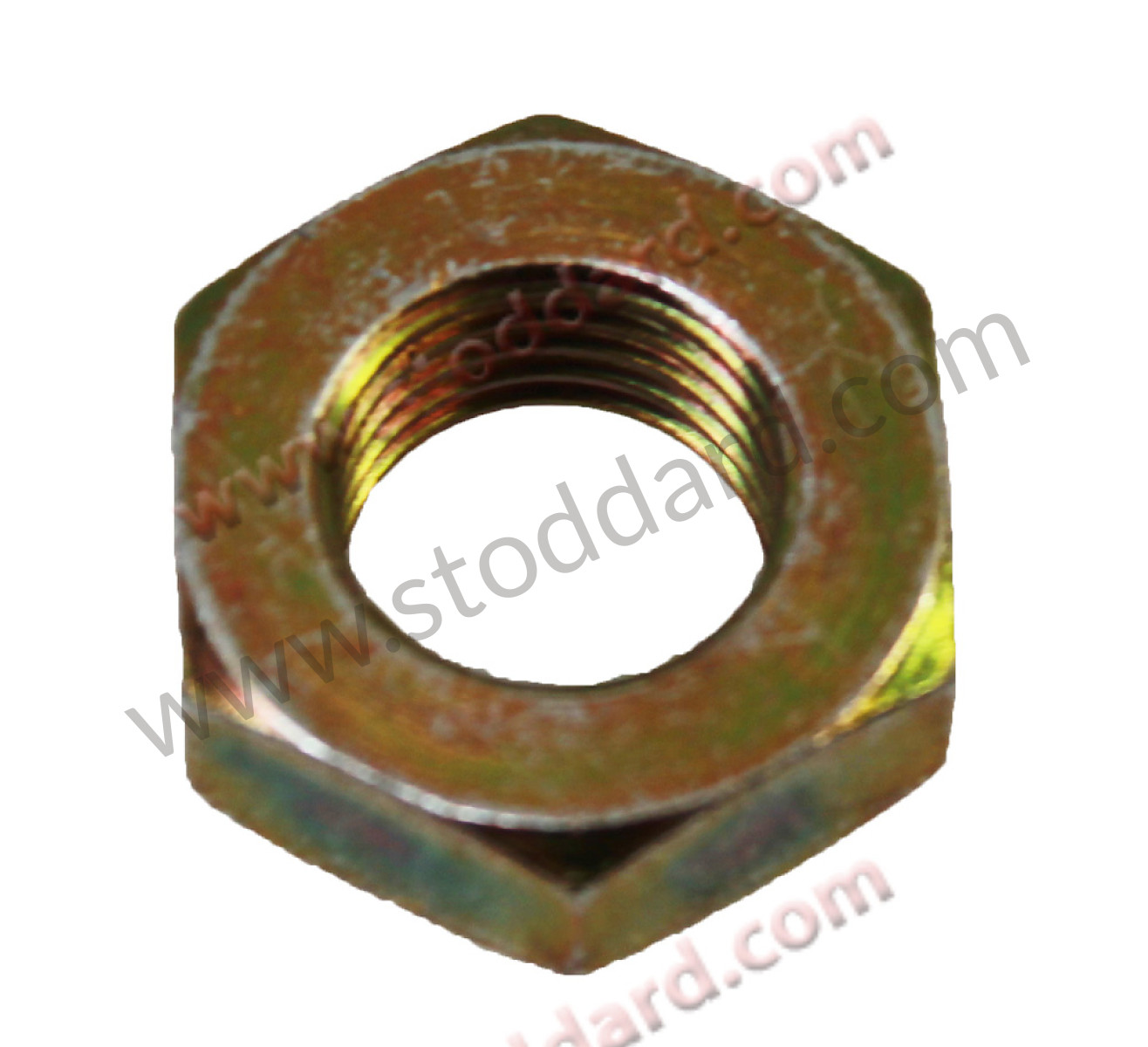

    Alt Nut
    4 versions Ship Today (before 5:00pm)
    From $5.23
    Choose ›
    Alt Nut 4 Versions available for this part
    4 Versions available for this part
    Choose a version Part details →

How our parts diagrams work

The exploded views are organised model by model and year by year, so the parts you see are the ones that fit your car. Step-by-step guide: how to use our online parts catalog.

1. Choose your model Pick your Porsche below, from the 356 Pre-A to the water-cooled cars.
2. Narrow it down to your car Select the year, version, body and gearbox, so that only the parts that fit your car are shown.
3. Open the diagrams Browse the part families (engine, body, brakes, suspension, electrical...) and their exploded views.
4. Find the exact part Each part is listed with its Porsche part number: open it to see the Stoddard reference, price and availability.
