Diagram « COOLANT PLUG / OIL FILLER PLUG » for Cayman 987C 06-08 • 2006 • Cayman S 3.4 • Manual Gearbox, 6 Speed

7 parts

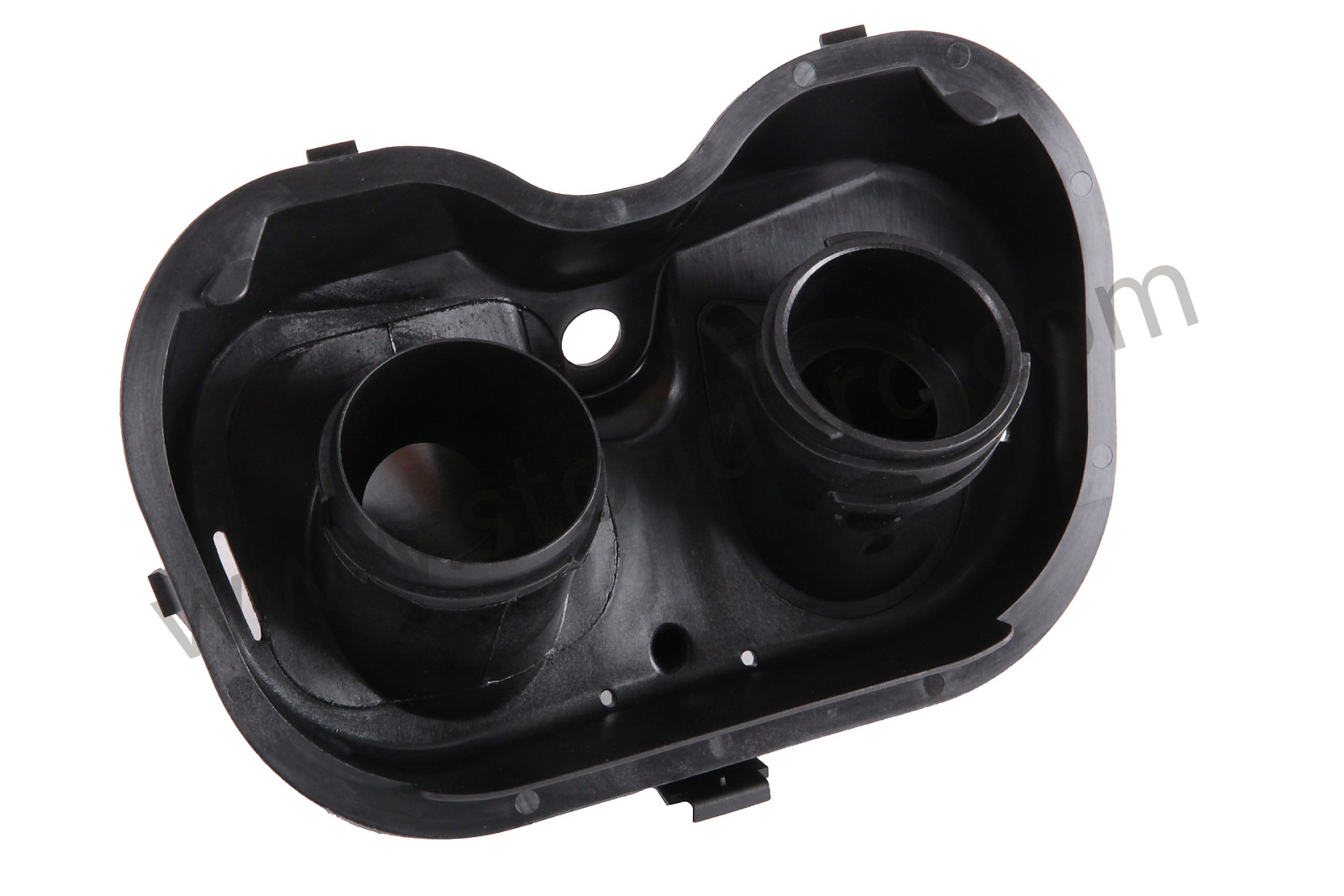

1
CUP
987 106 150 02 Genuine Usually ships in 4 business days

$130.75

Part details →
2
COVER
987 106 180 00 Genuine Usually ships in 4 business days

$23.01

Part details →
3
LID
987 107 035 01 Genuine Usually ships in 4 business days

$15.94

Part details →
4
GASKET
987 107 336 00 Genuine Usually ships in 4 business days

$15.44

Part details →
5
COVER
987 106 044 00 Genuine Usually ships in 4 business days

$46.16

Part details →
6
GASKET
987 106 170 00 Genuine Usually ships in 4 business days

$4.13

Part details →
7
HEXAGON NUT
999 076 071 02 Genuine Usually ships in 4 business days

$2.02

Part details →
