Left-hand drive
$97.40
Diagram « HEATING WITH EXTRA AIR CONDITIONING UNIT / ADDITIONAL HEATING / RETURN PIPE / HEAT EXCHANGER / HEATING HOSE » for Cayenne 955 03-06 • 2006 • Cayenne S V8 • Manual Gearbox, 6 Speed
Only for vehicles fitted with : ,,From the serial number 9p6la 41357
Available
Hovered
Not for this model
Selected
Scroll to zoom · drag to move · double-click a part to open it
24 parts
-
1

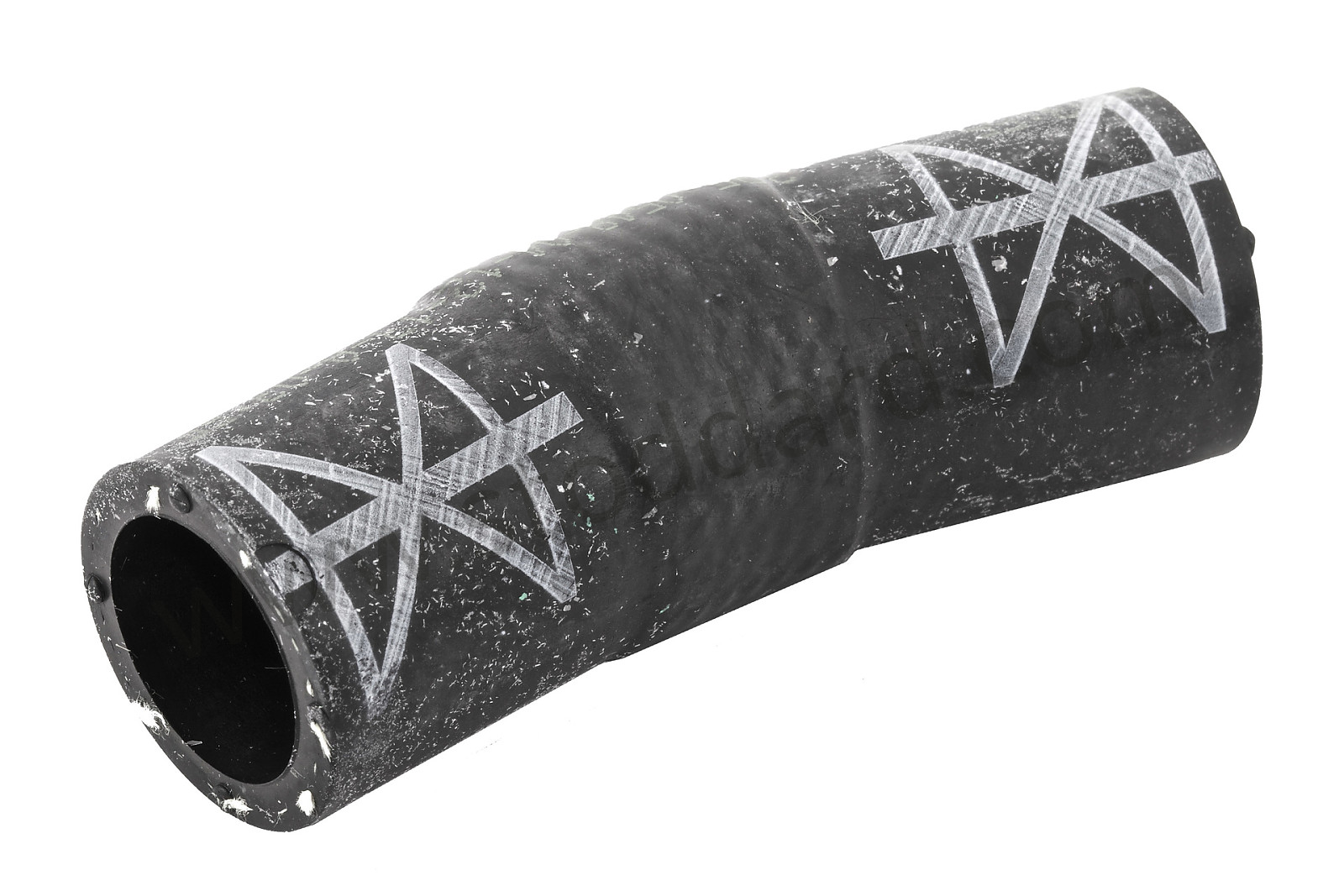

HEATER HOSE955 572 581 00
Genuine
Usually ships in 4 business days
$21.86
Left-hand drive / OPTION: AUXILIARY HEATER WITH INTEGRATED TIMER (Option code: I7VE), OPTION: 4 ZONE AIR CONDITIONING SYSTEM (Option code: I9AH) / From the serial number 9P6LA 41357 -
2
HEATER HOSE955 572 983 00Genuine
Usually ships in 4 business days
$30.41
Left-hand drive / OPTION: AUXILIARY HEATER WITH INTEGRATED TIMER (Option code: I7VE), OPTION: 4 ZONE AIR CONDITIONING SYSTEM (Option code: I9AH) / From the serial number 9P6LA 41357 -
3
23mm Hose Clamp Boxster 05-08 Cayenne 03-08 911 GT3 07-08999 512 658 09Genuine
Ship Tomorrow
$4.57
OPTION: AUXILIARY HEATER WITH INTEGRATED TIMER (Option code: I7VE), OPTION: 4 ZONE AIR CONDITIONING SYSTEM (Option code: I9AH) / From the serial number 9P6LA 41357Shown 20× on this diagram -
4
SEALING STRIP955 572 758 00Genuine
Usually ships in 4 business days
$9.55
OPTION: AUXILIARY HEATER WITH INTEGRATED TIMER (Option code: I7VE), OPTION: 4 ZONE AIR CONDITIONING SYSTEM (Option code: I9AH) / From the serial number 9P6LA 41357 -
5
HOT AIR DUCT955 572 682 02Genuine
Usually ships in 4 business days
$92.10
Left-hand drive / OPTION: AUXILIARY HEATER WITH INTEGRATED TIMER (Option code: I7VE), OPTION: 4 ZONE AIR CONDITIONING SYSTEM (Option code: I9AH) / From the serial number 9P6LA 41357 -
6
HOT AIR DUCT955 572 683 02Genuine
Usually ships in 4 business days
$132.09
Left-hand drive / OPTION: AUXILIARY HEATER WITH INTEGRATED TIMER (Option code: I7VE), OPTION: 4 ZONE AIR CONDITIONING SYSTEM (Option code: I9AH) / From the serial number 9P6LA 41357 -
7
GROMMET955 572 781 00Genuine
Usually ships in 4 business days
$18.86
OPTION: AUXILIARY HEATER WITH INTEGRATED TIMER (Option code: I7VE), OPTION: 4 ZONE AIR CONDITIONING SYSTEM (Option code: I9AH) / From the serial number 9P6LA 41357 -
8
HEATER HOSE955 572 785 01Genuine
Usually ships in 4 business days
$27.66
OPTION: AUXILIARY HEATER WITH INTEGRATED TIMER (Option code: I7VE), OPTION: 4 ZONE AIR CONDITIONING SYSTEM (Option code: I9AH) / From the serial number 9P6LA 41357 -
9
HEATER HOSE955 572 786 02Genuine
Usually ships in 4 business days
$27.66
OPTION: AUXILIARY HEATER WITH INTEGRATED TIMER (Option code: I7VE), OPTION: 4 ZONE AIR CONDITIONING SYSTEM (Option code: I9AH) / From the serial number 9P6LA 41357 -
10
HOT AIR DUCT955 572 690 01Genuine
Usually ships in 4 business days
$37.48
OPTION: AUXILIARY HEATER WITH INTEGRATED TIMER (Option code: I7VE), OPTION: 4 ZONE AIR CONDITIONING SYSTEM (Option code: I9AH) / From the serial number 9P6LA 41357 -
11
CLIP955 572 055 01Genuine
Usually ships in 4 business days
$9.56
OPTION: AUXILIARY HEATER WITH INTEGRATED TIMER (Option code: I7VE), OPTION: 4 ZONE AIR CONDITIONING SYSTEM (Option code: I9AH) / From the serial number 9P6LA 41357 -
12
PAN-HEAD SCREWN 106 209 01Genuine
Usually ships in 4 business days
$3.01
OPTION: AUXILIARY HEATER WITH INTEGRATED TIMER (Option code: I7VE), OPTION: 4 ZONE AIR CONDITIONING SYSTEM (Option code: I9AH) / From the serial number 9P6LA 41357 -
13
Rivet For Seat Support Cover Cayenne 2003-06N 906 432 01Genuine
Ship Tomorrow
$9.90
OPTION: AUXILIARY HEATER WITH INTEGRATED TIMER (Option code: I7VE), OPTION: 4 ZONE AIR CONDITIONING SYSTEM (Option code: I9AH) / From the serial number 9P6LA 41357Recommended quantity: 2 -
14
HEATER HOSE955 572 784 00Genuine
Usually ships in 4 business days
$24.15
OPTION: AUXILIARY HEATER WITH INTEGRATED TIMER (Option code: I7VE), OPTION: 4 ZONE AIR CONDITIONING SYSTEM (Option code: I9AH) / From the serial number 9P6LA 41357Recommended quantity: 2Shown 2× on this diagram -
15
HEATER HOSE955 572 371 00Genuine
Usually ships in 4 business days
$19.86
OPTION: AUXILIARY HEATER WITH INTEGRATED TIMER (Option code: I7VE), OPTION: 4 ZONE AIR CONDITIONING SYSTEM (Option code: I9AH) / From the serial number 9P6LA 41357 -
16
HEATER HOSE955 572 588 02Genuine
Usually ships in 4 business days
$17.70
OPTION: AUXILIARY HEATER WITH INTEGRATED TIMER (Option code: I7VE), OPTION: 4 ZONE AIR CONDITIONING SYSTEM (Option code: I9AH) / From the serial number 9P6LA 41357 -
17
HEATER HOSE955 572 587 02Genuine
Usually ships in 4 business days
$17.70
OPTION: AUXILIARY HEATER WITH INTEGRATED TIMER (Option code: I7VE), OPTION: 4 ZONE AIR CONDITIONING SYSTEM (Option code: I9AH) / From the serial number 9P6LA 41357 -
18
HEATER HOSE955 572 589 00Genuine
Usually ships in 4 business days
$19.69
OPTION: AUXILIARY HEATER WITH INTEGRATED TIMER (Option code: I7VE), OPTION: 4 ZONE AIR CONDITIONING SYSTEM (Option code: I9AH) / From the serial number 9P6LA 41357 -
19
HEXAGON-HEAD BOLT900 377 010 01Genuine
Usually ships in 4 business days
$1.27
6 MM / OPTION: AUXILIARY HEATER WITH INTEGRATED TIMER (Option code: I7VE), OPTION: 4 ZONE AIR CONDITIONING SYSTEM (Option code: I9AH)Shown 2× on this diagram -
20
LENS-HEAD SCREWN 104 514 04Genuine
Usually ships in 4 business days
$1.41
OPTION: AUXILIARY HEATER WITH INTEGRATED TIMER (Option code: I7VE), OPTION: 4 ZONE AIR CONDITIONING SYSTEM (Option code: I9AH) / From the serial number 9P6LA 41357Shown 2× on this diagram -
21
Blind Rivet Nut For Water Line Support Panamera 10-14999 500 109 01Genuine
Ship Tomorrow
$4.57
OPTION: AUXILIARY HEATER WITH INTEGRATED TIMER (Option code: I7VE), OPTION: 4 ZONE AIR CONDITIONING SYSTEM (Option code: I9AH) / From the serial number 9P6LA 41357 -
22
SUPPORT955 572 950 01Genuine
Usually ships in 4 business days
$24.02
OPTION: AUXILIARY HEATER WITH INTEGRATED TIMER (Option code: I7VE), OPTION: 4 ZONE AIR CONDITIONING SYSTEM (Option code: I9AH) / From the serial number 9P6LA 41357 -
23

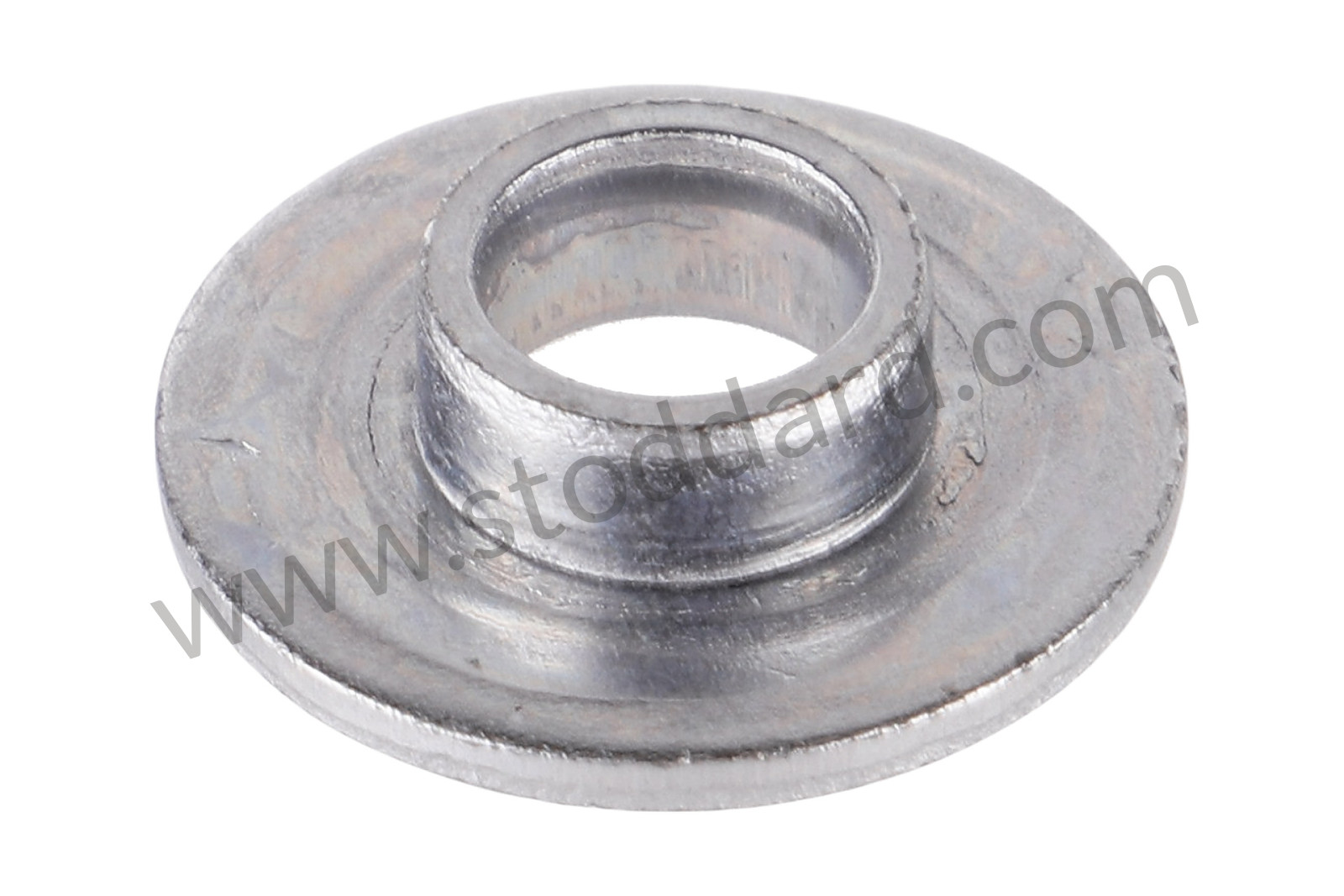

BUSH1T0 805 1 79AGenuine
Usually ships in 4 business days
$4.07
OPTION: AUXILIARY HEATER WITH INTEGRATED TIMER (Option code: I7VE), OPTION: 4 ZONE AIR CONDITIONING SYSTEM (Option code: I9AH) / From the serial number 9P6LA 41357Recommended quantity: 2Shown 2× on this diagram -
24
RUBBER SLEEVE955 572 095 00Genuine
Usually ships in 4 business days
$2.23
OPTION: AUXILIARY HEATER WITH INTEGRATED TIMER (Option code: I7VE), OPTION: 4 ZONE AIR CONDITIONING SYSTEM (Option code: I9AH) / From the serial number 9P6LA 41357Shown 2× on this diagram
