Left-hand drive
$8,097.14
Diagram « REAR AXLE / OUTPUT FLANGE / DRIVE FLANGE / SERVOMOTOR » for Cayenne 955 03-06 • 2003 • Cayenne V6 • Manual Gearbox, 6 Speed
Only for vehicles fitted with : Option: differential lock rear centre differential lock (option code: i1y1),Option: differential lock rear centre differential lock (option code: i1y1)
Available
Hovered
Not for this model
Selected
Scroll to zoom · drag to move · double-click a part to open it
24 parts
-
1
REAR AXLE DIFFERENTIAL955 332 020 21
Genuine
Usually ships in 4 business days
$5,422.44
New part / OPTION: DIFFERENTIAL LOCK REAR CENTRE DIFFERENTIAL LOCK (Option code: I1Y1) -
2
HEXAGON-HEAD BOLTN 102 112 02Genuine
Usually ships in 4 business days
$8.37
OPTION: DIFFERENTIAL LOCK REAR CENTRE DIFFERENTIAL LOCK (Option code: I1Y1)Recommended quantity: 3Shown 2× on this diagram -
3

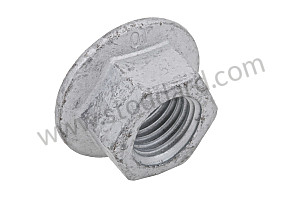

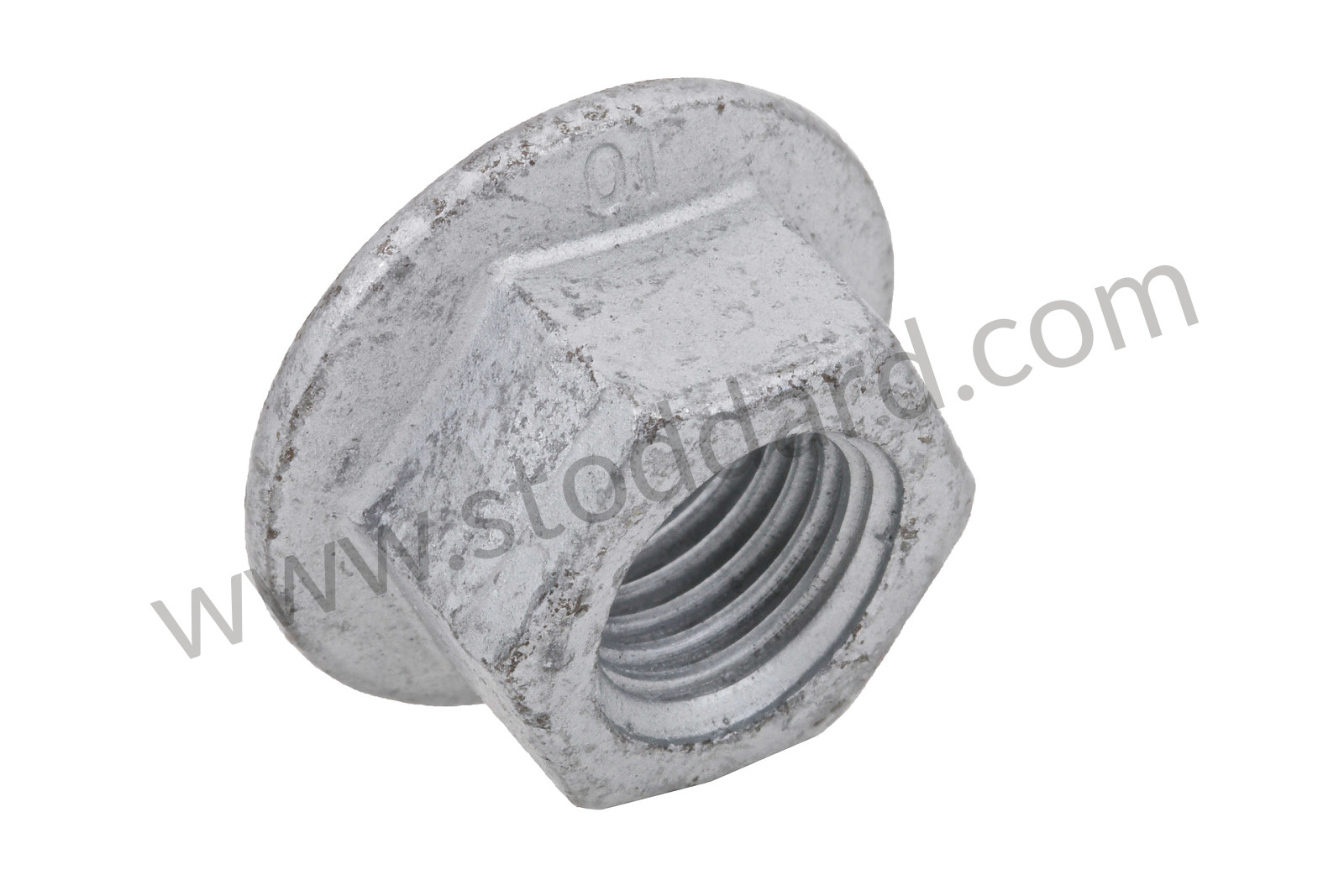

HEXAGON NUTPAF 104 029Genuine
Usually ships in 4 business days
$6.13
OPTION: DIFFERENTIAL LOCK REAR CENTRE DIFFERENTIAL LOCK (Option code: I1Y1)Recommended quantity: 3Shown 2× on this diagram -
4

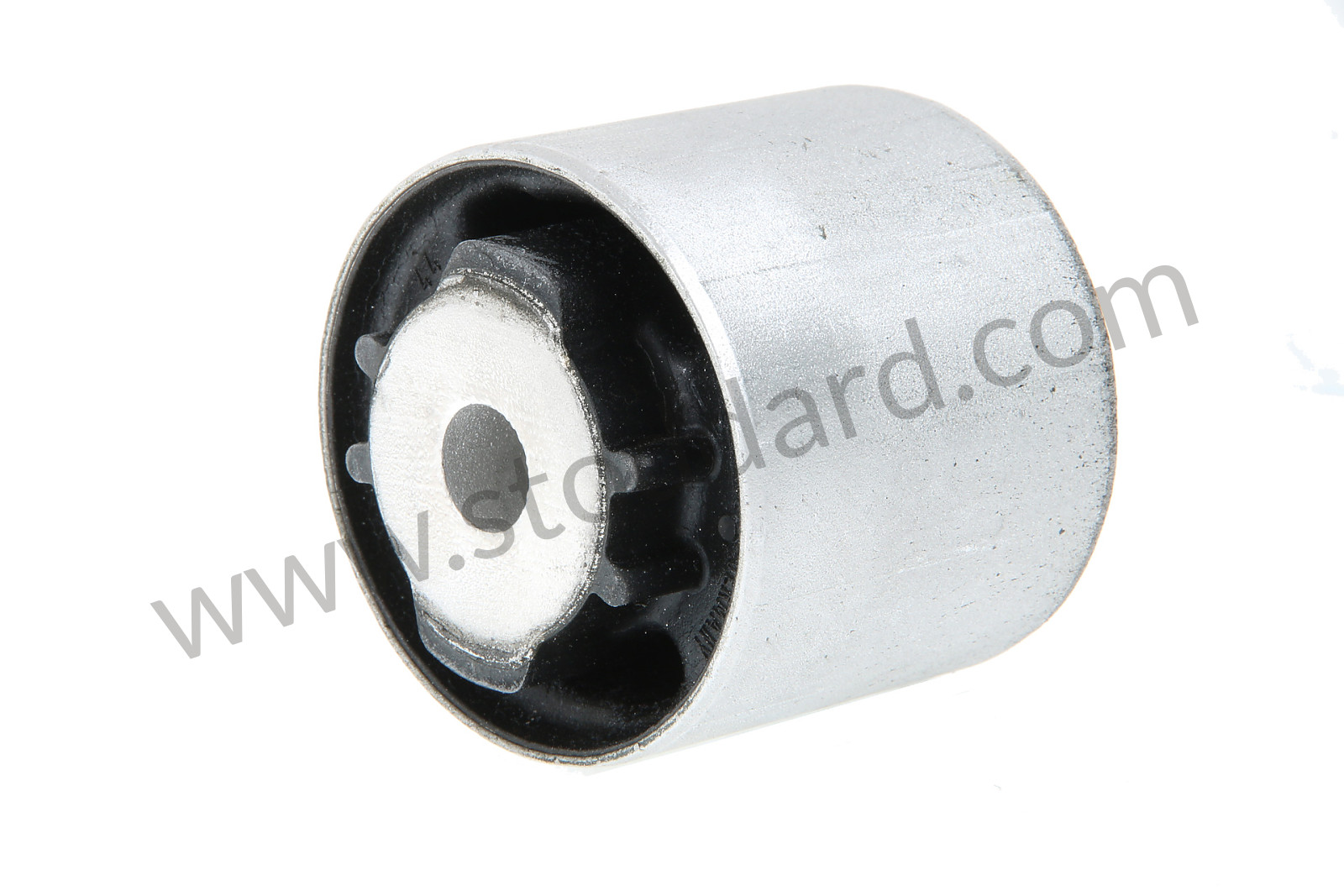

RUBBER MOUNTING955 332 337 00Genuine
Usually ships in 4 business days
$104.81
OPTION: DIFFERENTIAL LOCK REAR CENTRE DIFFERENTIAL LOCK (Option code: I1Y1)Recommended quantity: 3 -
5
CIRCLIP955 332 125 00Genuine
Usually ships in 4 business days
$3.14
OPTION: DIFFERENTIAL LOCK REAR CENTRE DIFFERENTIAL LOCK (Option code: I1Y1)Recommended quantity: 2Shown 2× on this diagram -
6
SHAFT SEAL955 332 596 30Genuine
Usually ships in 4 business days
$35.59
OPTION: DIFFERENTIAL LOCK REAR CENTRE DIFFERENTIAL LOCK (Option code: I1Y1) -
7
SHAFT SEALING RING955 332 596 00Genuine
Usually ships in 4 business days
$50.58
OPTION: DIFFERENTIAL LOCK REAR CENTRE DIFFERENTIAL LOCK (Option code: I1Y1) -
8
PROTECTIVE RING955 332 375 10Genuine
Usually ships in 4 business days
$10.47
OPTION: DIFFERENTIAL LOCK REAR CENTRE DIFFERENTIAL LOCK (Option code: I1Y1) -
9

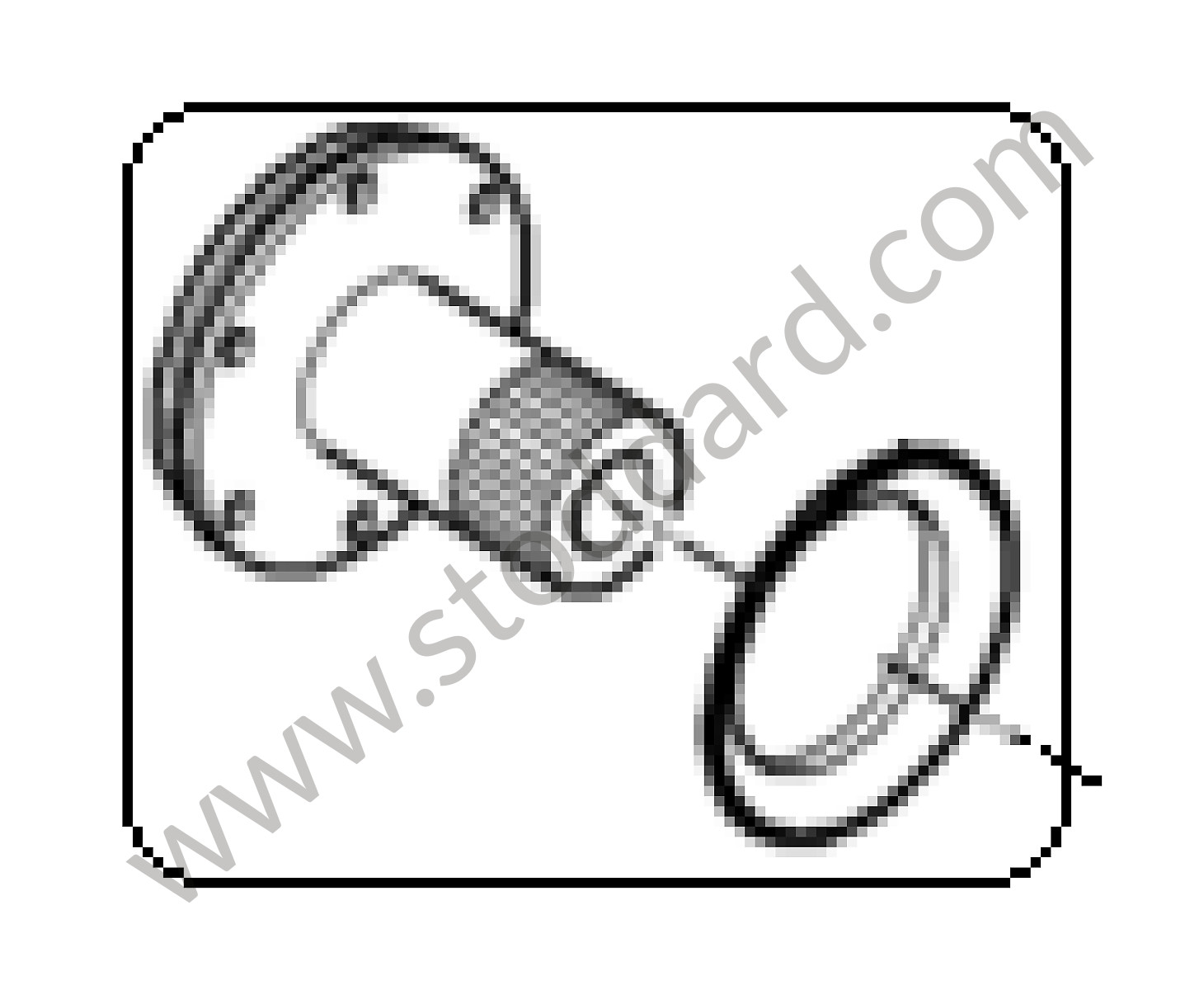

OUTPUT FLANGE955 332 284 30Genuine
Usually ships in 4 business days
$729.94
OPTION: DIFFERENTIAL LOCK REAR CENTRE DIFFERENTIAL LOCK (Option code: I1Y1) -
10
OUTPUT FLANGE955 332 283 30Genuine
Usually ships in 4 business days
$729.94
OPTION: DIFFERENTIAL LOCK REAR CENTRE DIFFERENTIAL LOCK (Option code: I1Y1) -
11

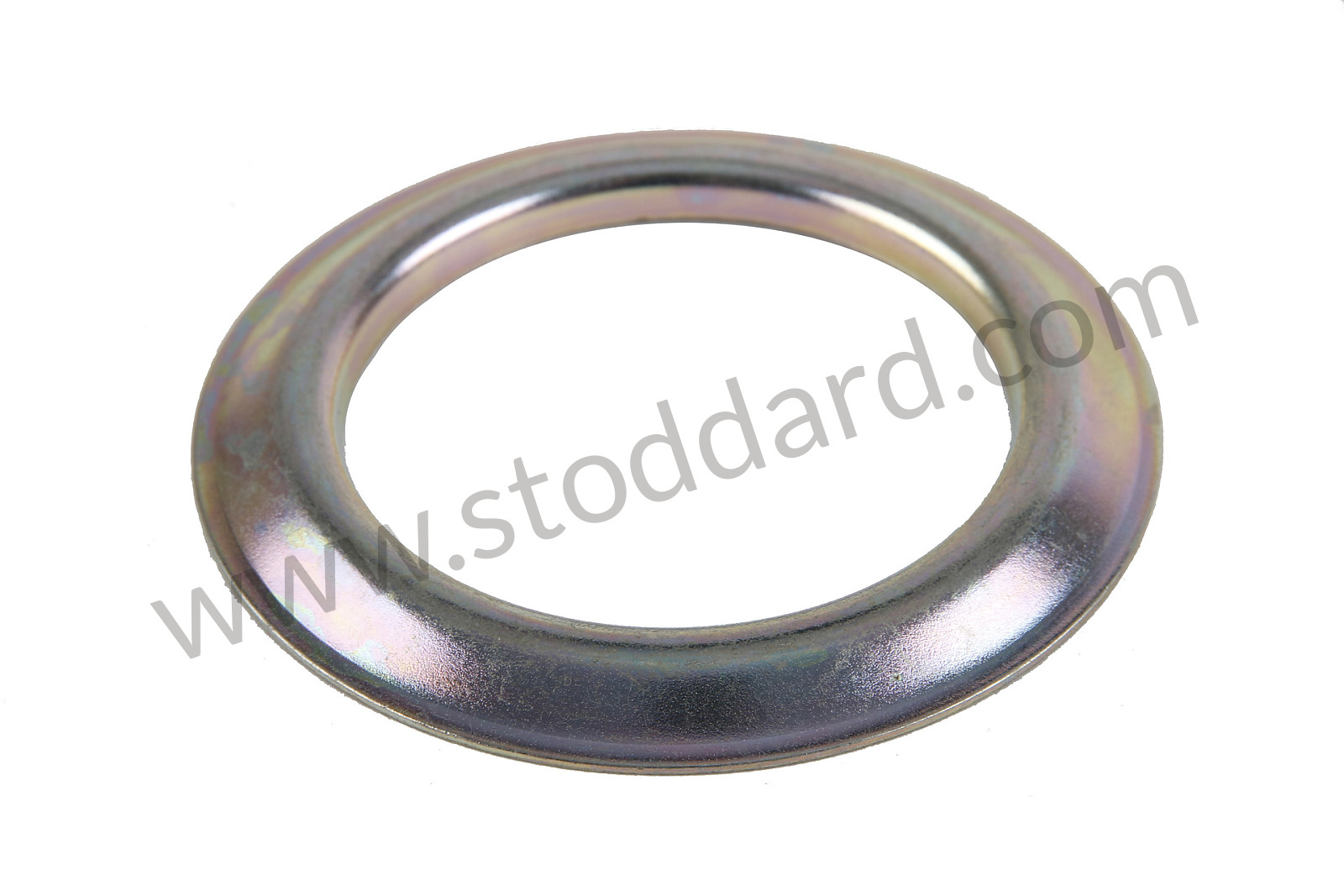

PROTECTIVE RING955 332 375 00Genuine
Usually ships in 4 business days
$9.31
OPTION: DIFFERENTIAL LOCK REAR CENTRE DIFFERENTIAL LOCK (Option code: I1Y1) -
12

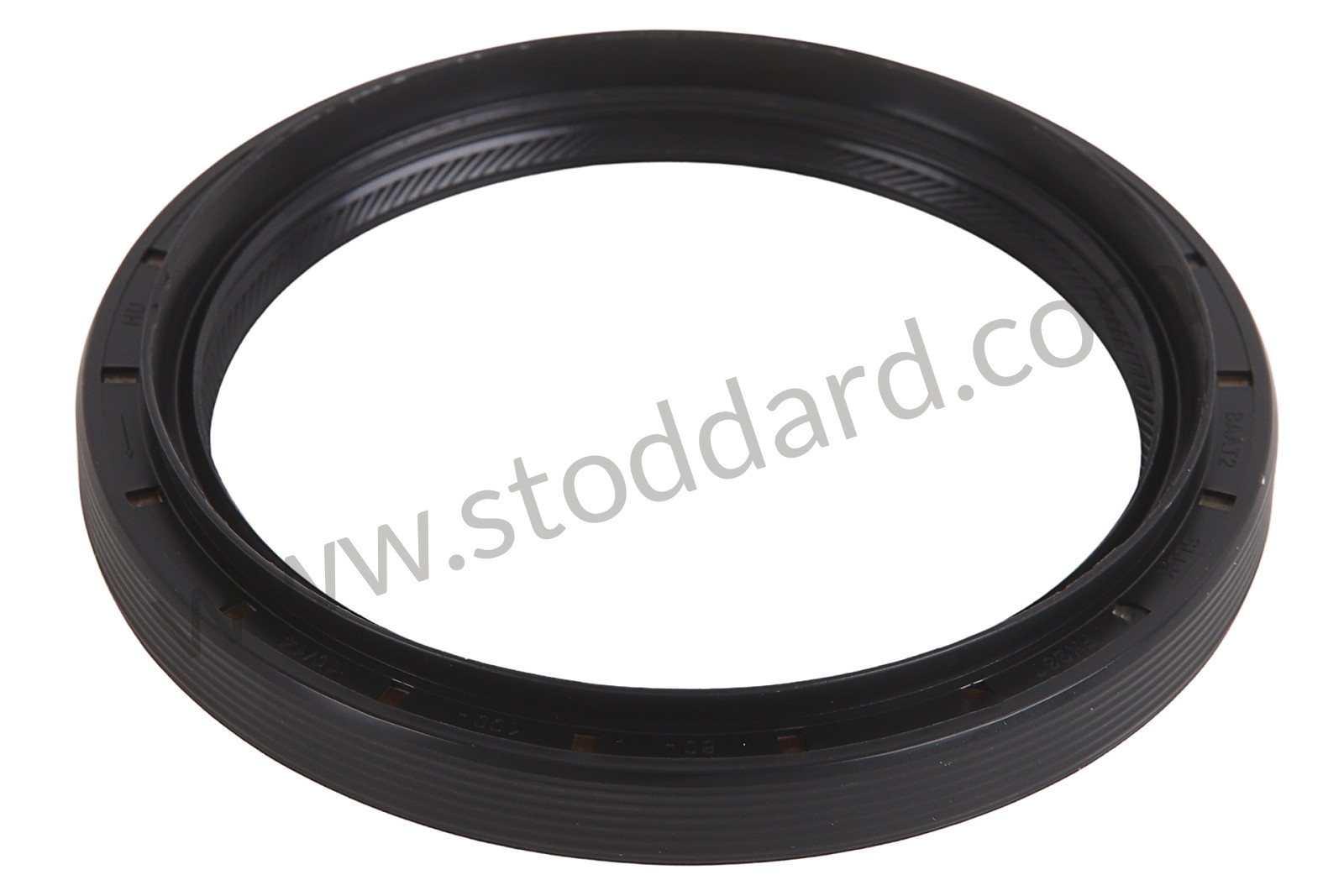

SHAFT SEAL955 332 596 20Genuine
Usually ships in 4 business days
$50.58
OPTION: DIFFERENTIAL LOCK REAR CENTRE DIFFERENTIAL LOCK (Option code: I1Y1) -
13

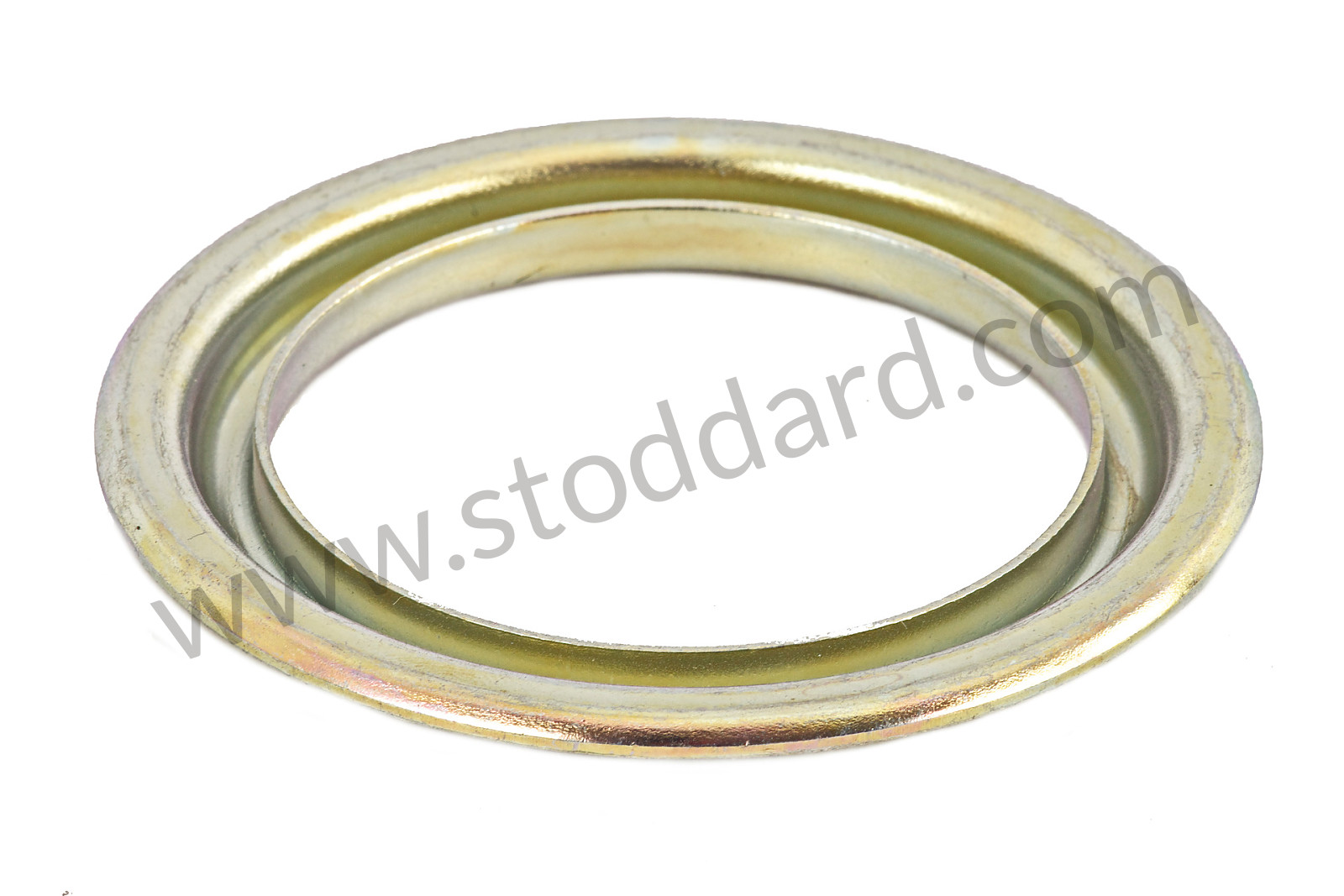

PROTECTIVE RING955 332 375 20Genuine
Usually ships in 4 business days
$8.58
OPTION: DIFFERENTIAL LOCK REAR CENTRE DIFFERENTIAL LOCK (Option code: I1Y1) -
14

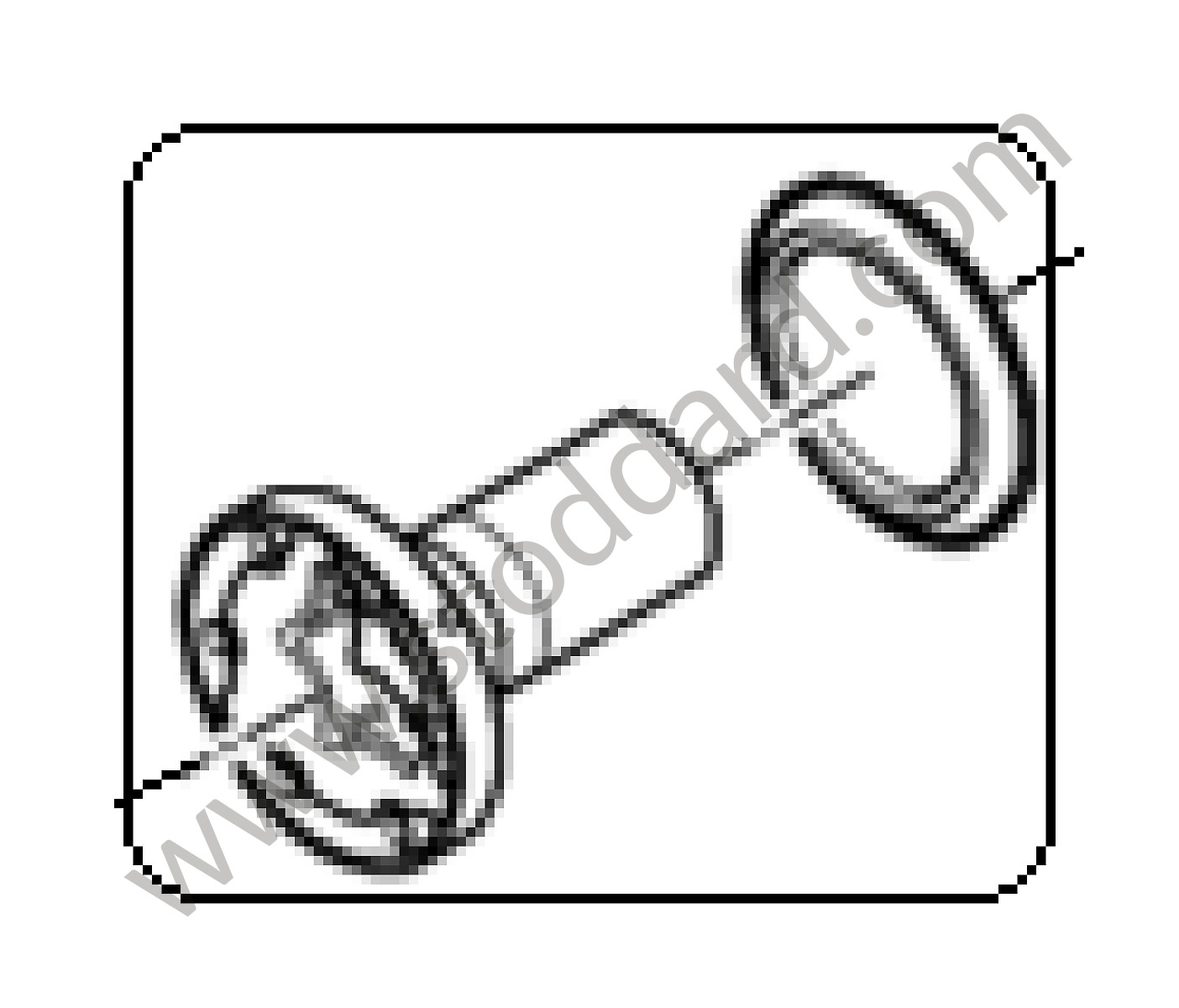

DRIVE FLANGE955 332 127 00Genuine
Usually ships in 4 business days
$544.24
OPTION: DIFFERENTIAL LOCK REAR CENTRE DIFFERENTIAL LOCK (Option code: I1Y1) -
15

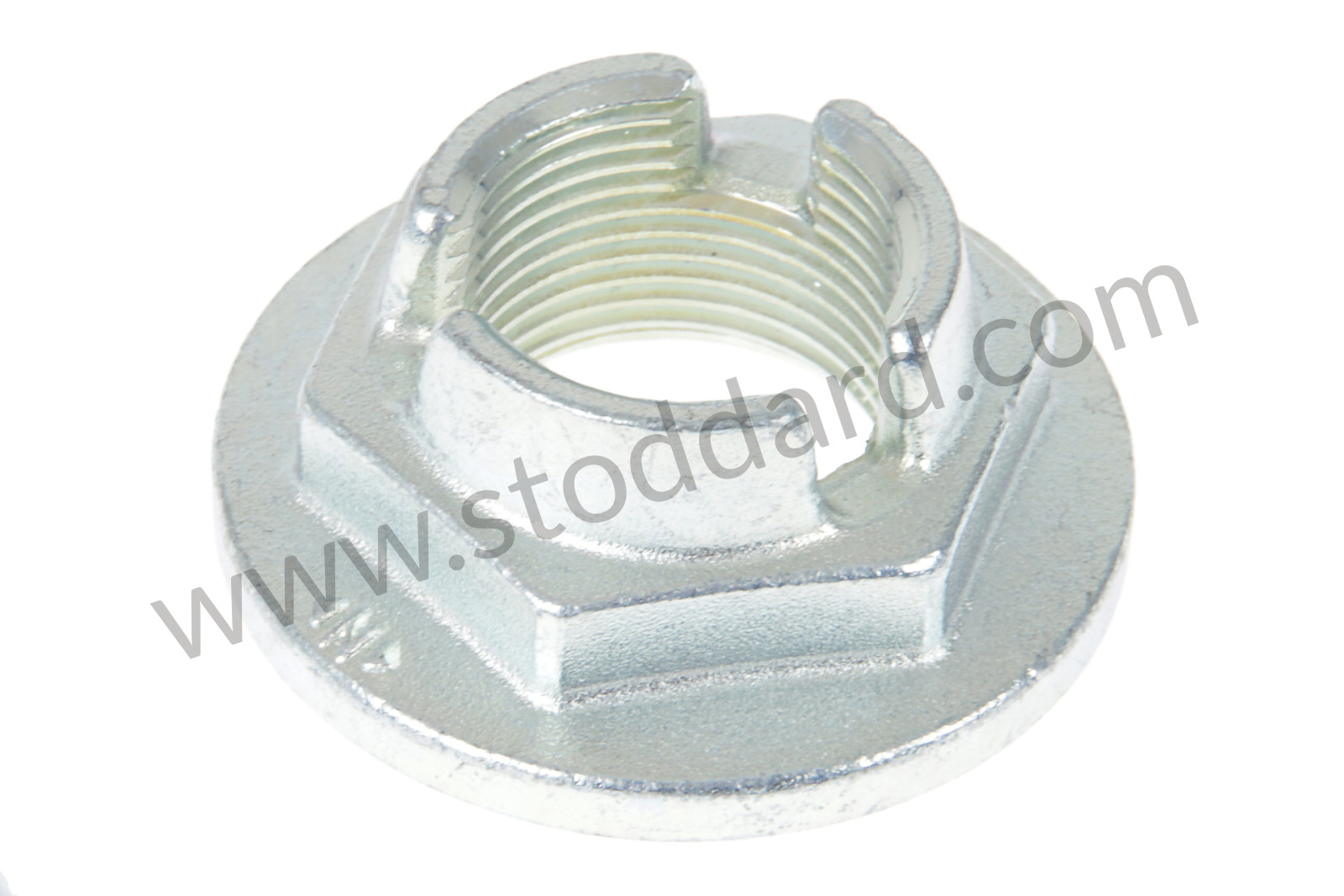

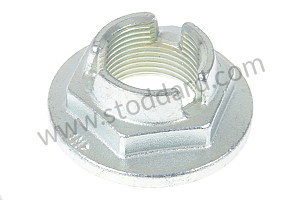

COLLAR NUT955 332 427 00Genuine
Usually ships in 4 business days
$23.19
OPTION: DIFFERENTIAL LOCK REAR CENTRE DIFFERENTIAL LOCK (Option code: I1Y1) -
16
SCREW PLUG955 332 057 00Genuine
Usually ships in 4 business days
$21.01
OPTION: DIFFERENTIAL LOCK REAR CENTRE DIFFERENTIAL LOCK (Option code: I1Y1)Recommended quantity: 2Shown 2× on this diagram -
17

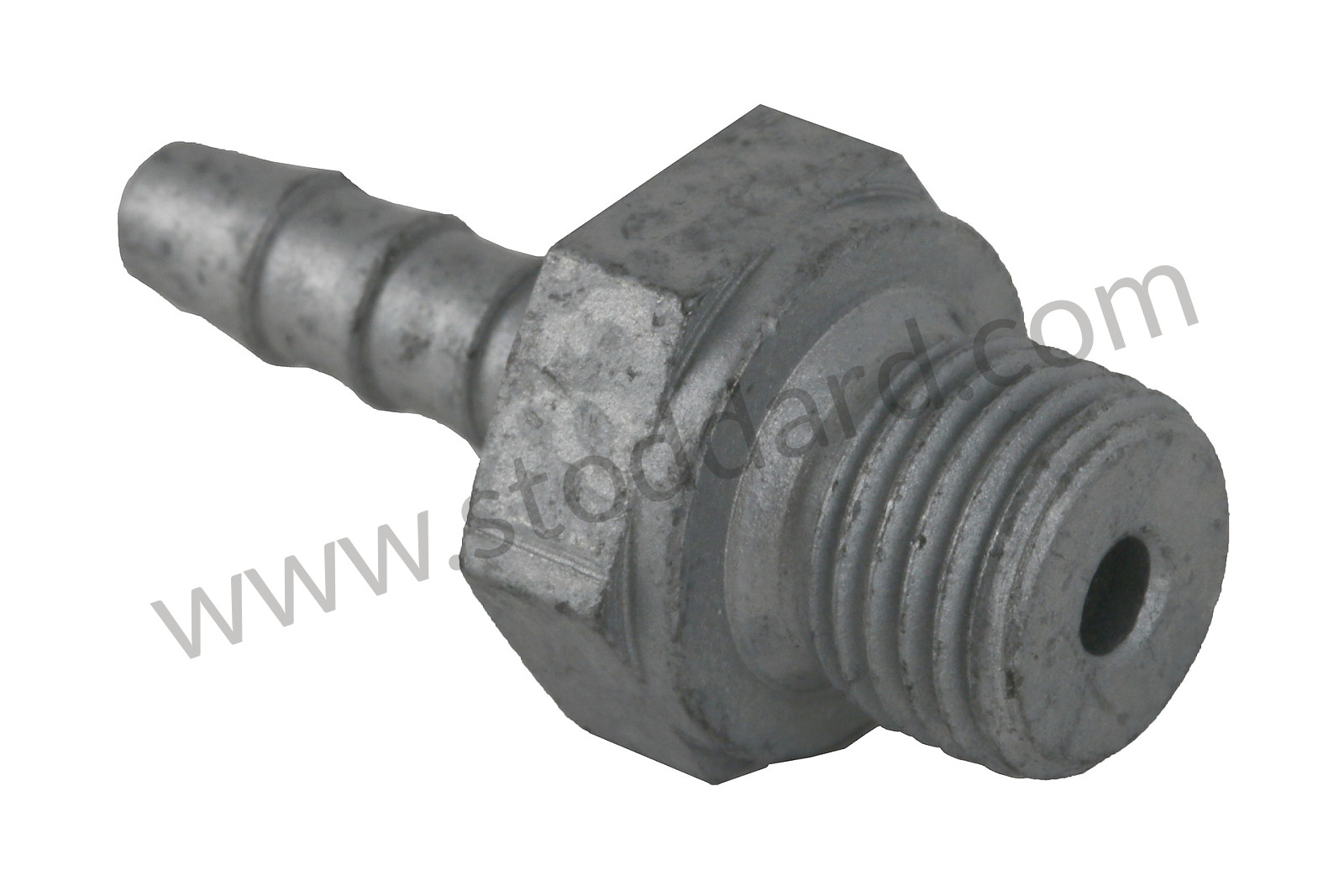

BREATHER ADAPTER955 332 065 20Genuine
Usually ships in 4 business days
$14.83
OPTION: DIFFERENTIAL LOCK REAR CENTRE DIFFERENTIAL LOCK (Option code: I1Y1) -
18

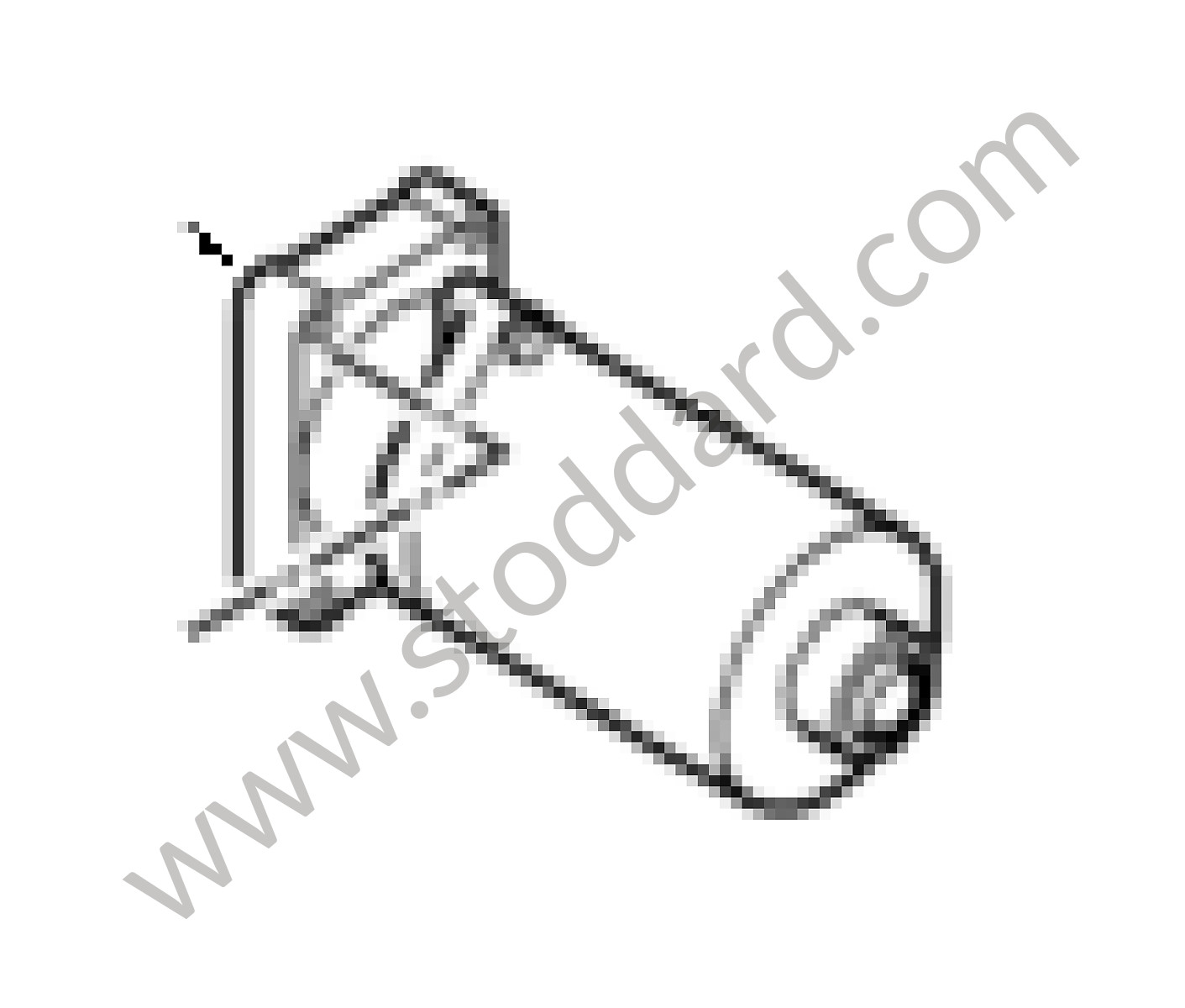

ELECTRIC MOTOR955 624 904 01Genuine
Usually ships in 4 business days
$1,743.49
OPTION: DIFFERENTIAL LOCK REAR CENTRE DIFFERENTIAL LOCK (Option code: I1Y1) -
19
O-RING955 332 649 00Genuine
Usually ships in 4 business days
$5.83
OPTION: DIFFERENTIAL LOCK REAR CENTRE DIFFERENTIAL LOCK (Option code: I1Y1) -
20

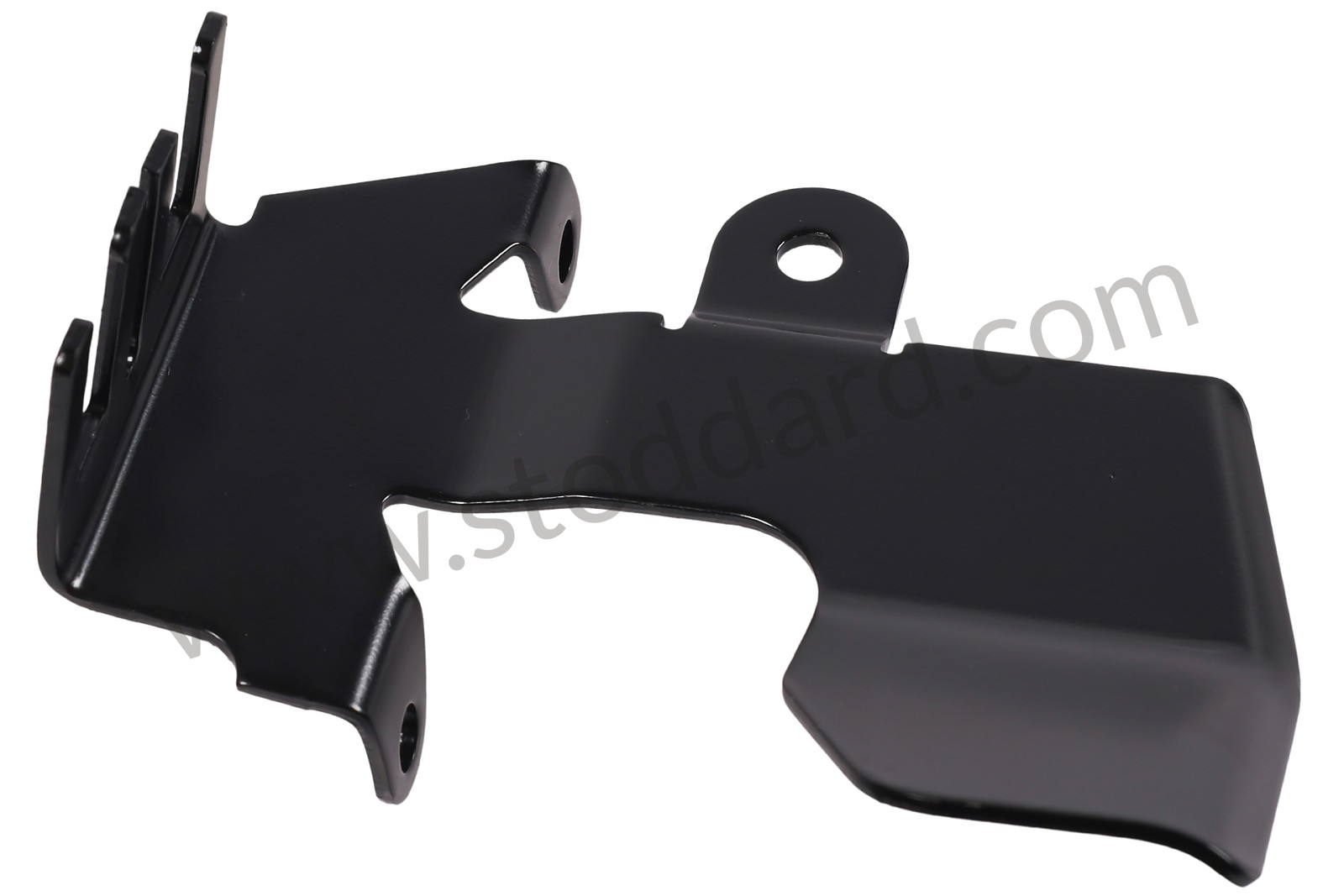

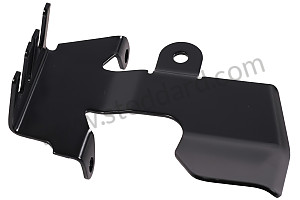

RETAINING BRACKET955 332 037 00Genuine
Usually ships in 4 business days
$25.45
OPTION: DIFFERENTIAL LOCK REAR CENTRE DIFFERENTIAL LOCK (Option code: I1Y1) -
21
PAN-HEAD SCREW955 332 147 00Genuine
Usually ships in 4 business days
$1.88
OPTION: DIFFERENTIAL LOCK REAR CENTRE DIFFERENTIAL LOCK (Option code: I1Y1)Recommended quantity: 2 -
22
DAMPER955 332 169 00Genuine
Usually ships in 4 business days
$306.29
OPTION: DIFFERENTIAL LOCK REAR CENTRE DIFFERENTIAL LOCK (Option code: I1Y1) -
23
BREATHER PIPE955 201 255 05Genuine
Usually ships in 4 business days
$48.61
OPTION: DIFFERENTIAL LOCK REAR CENTRE DIFFERENTIAL LOCK (Option code: I1Y1) -
24

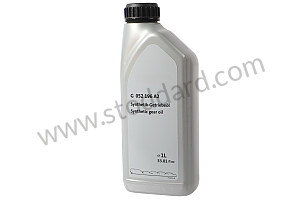

TRANSMISSION OIL000 043 305 03Genuine
Usually ships in 4 business days
$77.15
OPTION: DIFFERENTIAL LOCK REAR CENTRE DIFFERENTIAL LOCK (Option code: I1Y1)
