Diagram « REAR AXLE / OUTPUT FLANGE / DRAIN TUBE » for Cayenne 955 03-06 • 2003 • Cayenne S V8 • Manual Gearbox, 6 Speed
Available
Hovered
Not for this model
Selected
Scroll to zoom · drag to move · double-click a part to open it
16 parts
-
1
HEXAGON-HEAD BOLTN 102 112 02
Genuine
Usually ships in 4 business days
$8.37
Without OPTION: DIFFERENTIAL LOCK REAR CENTRE DIFFERENTIAL LOCK (Option code: I1Y1)Recommended quantity: 3Shown 2× on this diagram -
2

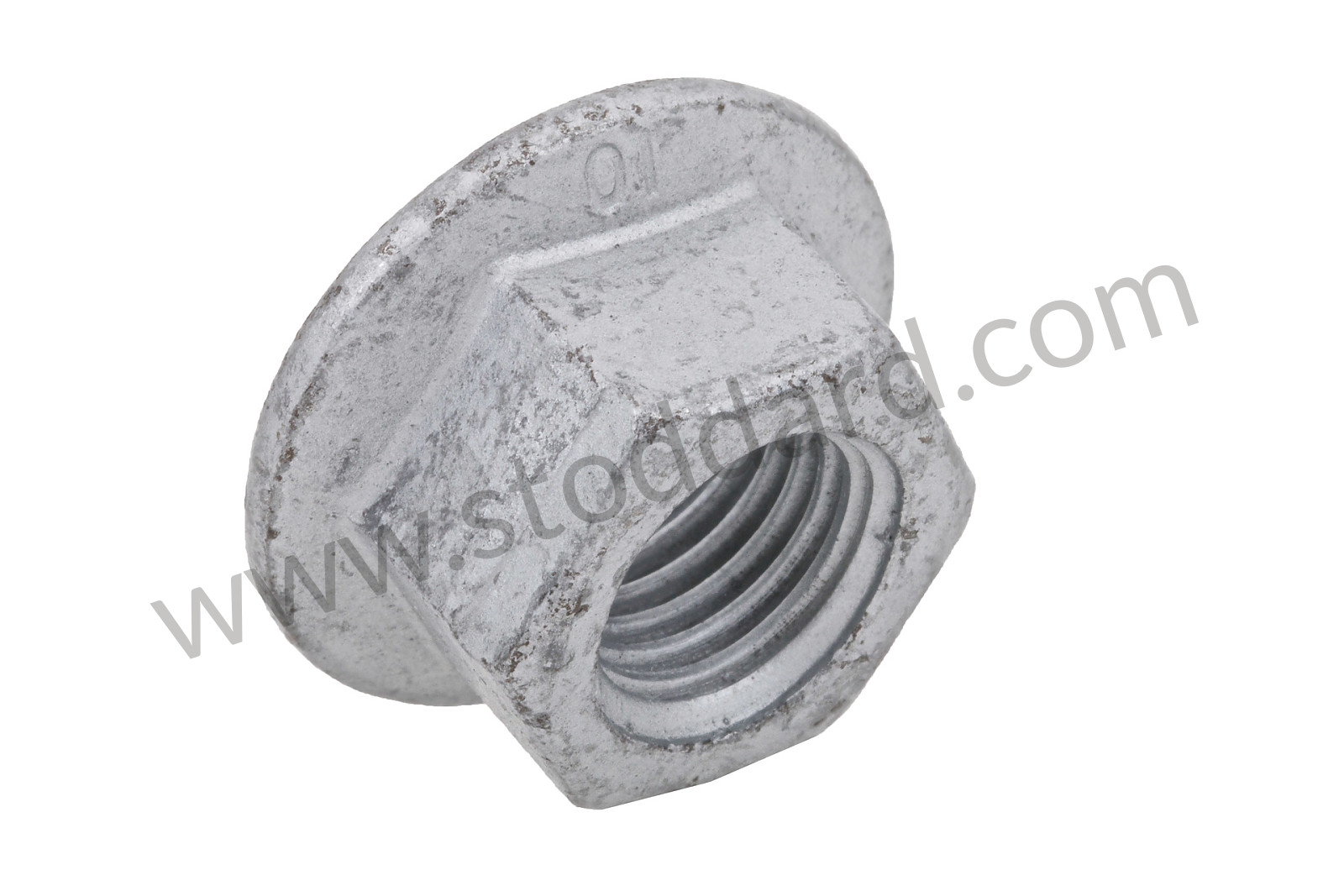

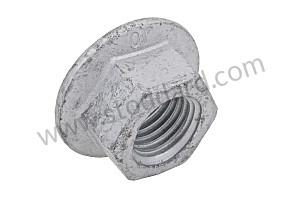

HEXAGON NUTPAF 104 029Genuine
Usually ships in 4 business days
$6.13
Without OPTION: DIFFERENTIAL LOCK REAR CENTRE DIFFERENTIAL LOCK (Option code: I1Y1)Recommended quantity: 3Shown 2× on this diagram -
3

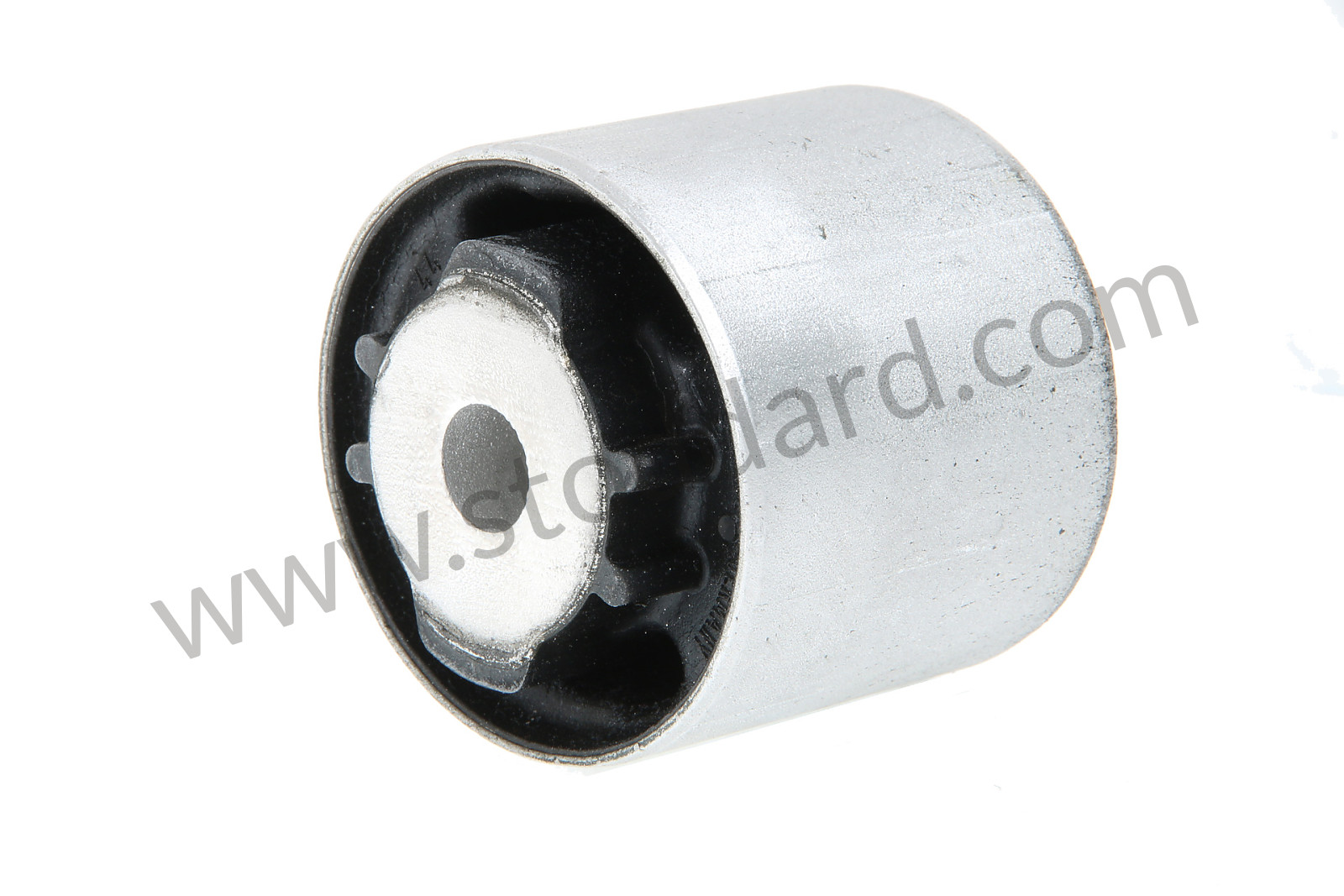

RUBBER MOUNTING955 332 337 00Genuine
Usually ships in 4 business days
$104.81
Without OPTION: DIFFERENTIAL LOCK REAR CENTRE DIFFERENTIAL LOCK (Option code: I1Y1)Recommended quantity: 3Shown 2× on this diagram -
4

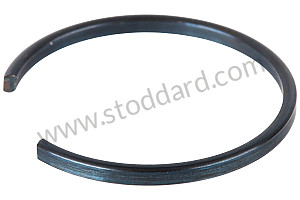

CIRCLIP955 332 125 00Genuine
Usually ships in 4 business days
$3.14
Without OPTION: DIFFERENTIAL LOCK REAR CENTRE DIFFERENTIAL LOCK (Option code: I1Y1)Recommended quantity: 2Shown 2× on this diagram -
5
SHAFT SEAL955 332 596 10Genuine
Usually ships in 4 business days
$45.33
Without OPTION: DIFFERENTIAL LOCK REAR CENTRE DIFFERENTIAL LOCK (Option code: I1Y1) -
6
SHAFT SEALING RING955 332 596 00Genuine
Usually ships in 4 business days
$50.58
Without OPTION: DIFFERENTIAL LOCK REAR CENTRE DIFFERENTIAL LOCK (Option code: I1Y1) -
7

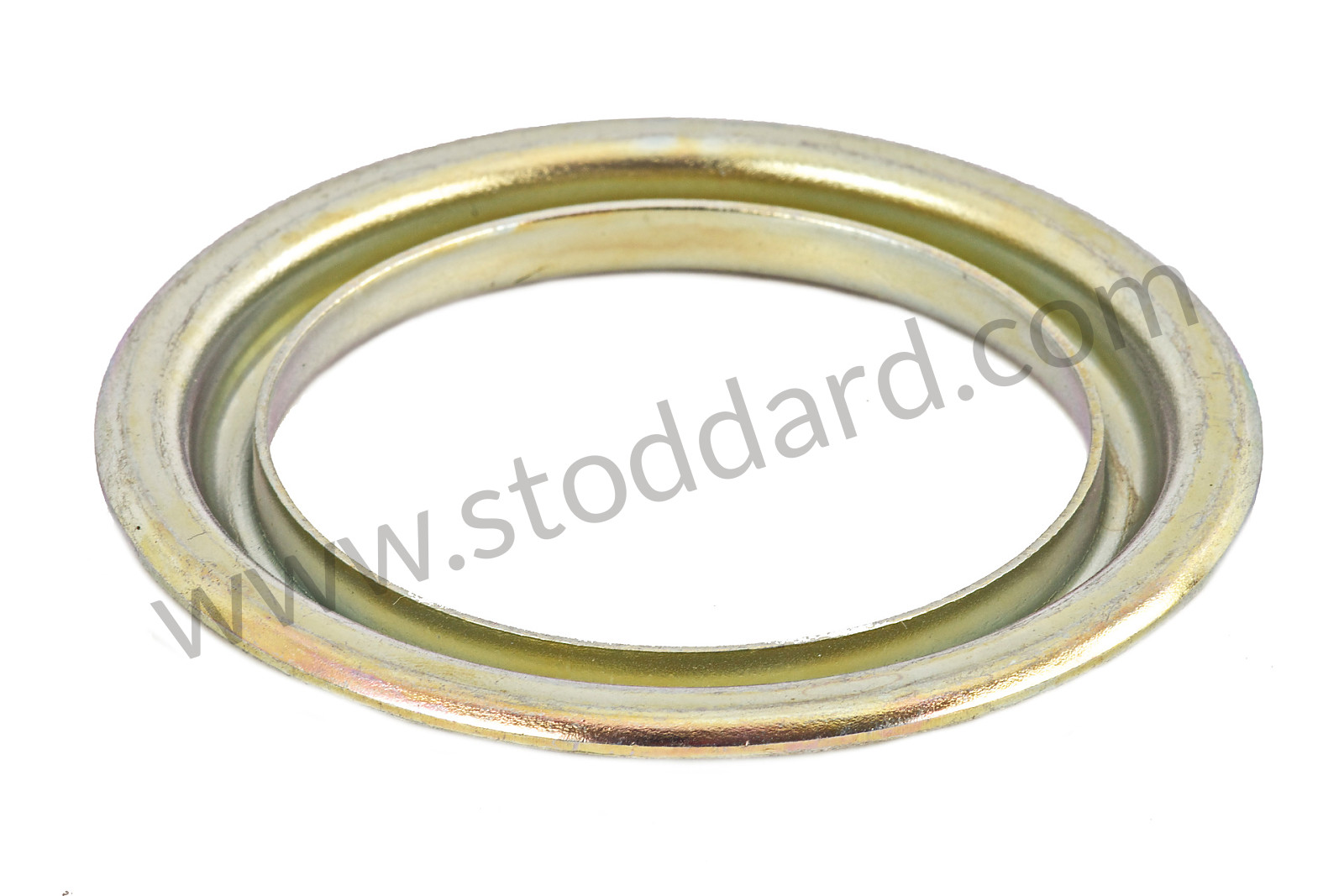

PROTECTIVE RING955 332 375 00Genuine
Usually ships in 4 business days
$9.31
Without OPTION: DIFFERENTIAL LOCK REAR CENTRE DIFFERENTIAL LOCK (Option code: I1Y1)Recommended quantity: 2Shown 2× on this diagram -
8
OUTPUT FLANGE955 332 283 20Genuine
Usually ships in 4 business days
$695.79
Without OPTION: DIFFERENTIAL LOCK REAR CENTRE DIFFERENTIAL LOCK (Option code: I1Y1)Shown 2× on this diagram -
9

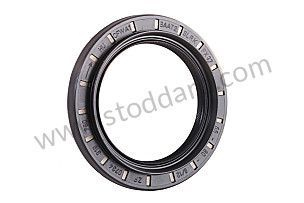

SHAFT SEAL955 332 596 20Genuine
Usually ships in 4 business days
$50.58
Without OPTION: DIFFERENTIAL LOCK REAR CENTRE DIFFERENTIAL LOCK (Option code: I1Y1) -
10
PROTECTIVE RING955 332 375 20Genuine
Usually ships in 4 business days
$8.58
Without OPTION: DIFFERENTIAL LOCK REAR CENTRE DIFFERENTIAL LOCK (Option code: I1Y1) -
11
DRIVE FLANGE955 332 127 00Genuine
Usually ships in 4 business days
$544.24
Without OPTION: DIFFERENTIAL LOCK REAR CENTRE DIFFERENTIAL LOCK (Option code: I1Y1) -
12

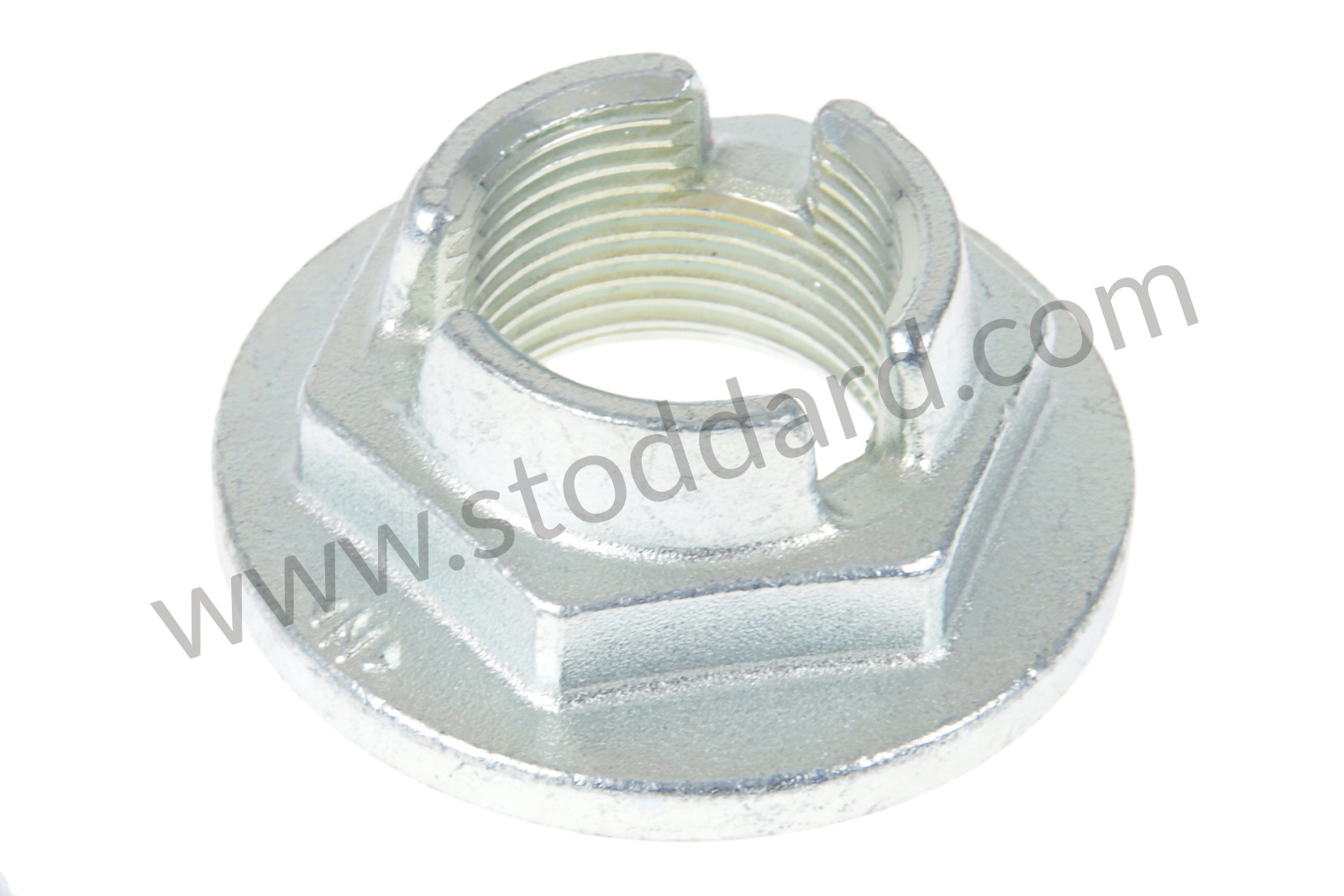

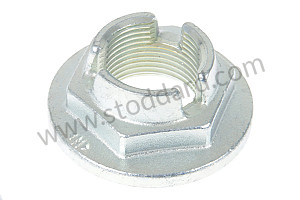

COLLAR NUT955 332 427 00Genuine
Usually ships in 4 business days
$23.19
Without OPTION: DIFFERENTIAL LOCK REAR CENTRE DIFFERENTIAL LOCK (Option code: I1Y1) -
13
SCREW PLUG955 332 057 00Genuine
Usually ships in 4 business days
$21.01
Without OPTION: DIFFERENTIAL LOCK REAR CENTRE DIFFERENTIAL LOCK (Option code: I1Y1)Recommended quantity: 2 -
14

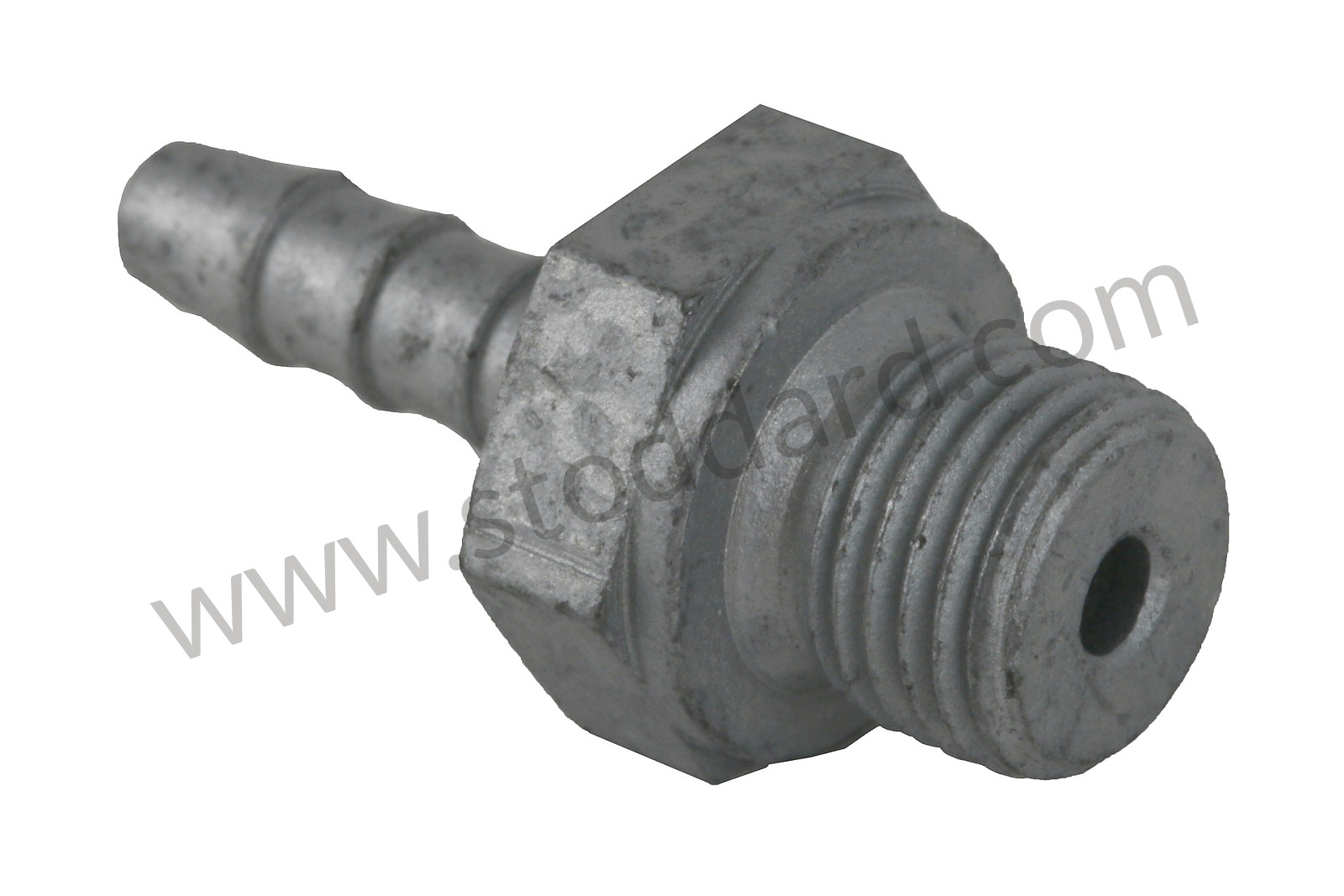

BREATHER ADAPTER955 332 065 20Genuine
Usually ships in 4 business days
$14.83
Without OPTION: DIFFERENTIAL LOCK REAR CENTRE DIFFERENTIAL LOCK (Option code: I1Y1) -
15
BREATHER PIPE955 201 255 05Genuine
Usually ships in 4 business days
$48.61
Without OPTION: DIFFERENTIAL LOCK REAR CENTRE DIFFERENTIAL LOCK (Option code: I1Y1) -
16
TRANSMISSION OIL000 043 305 04Genuine
Usually ships in 4 business days
$86.17
Without OPTION: DIFFERENTIAL LOCK REAR CENTRE DIFFERENTIAL LOCK (Option code: I1Y1)
