Diagram « AIR CLEANER/MASS AIR FLOW METER » for Boxster 986 97-04 • 2000 • Boxster 2.7 • Cabrio • Manual Gearbox, 5 Speed

15 parts

1

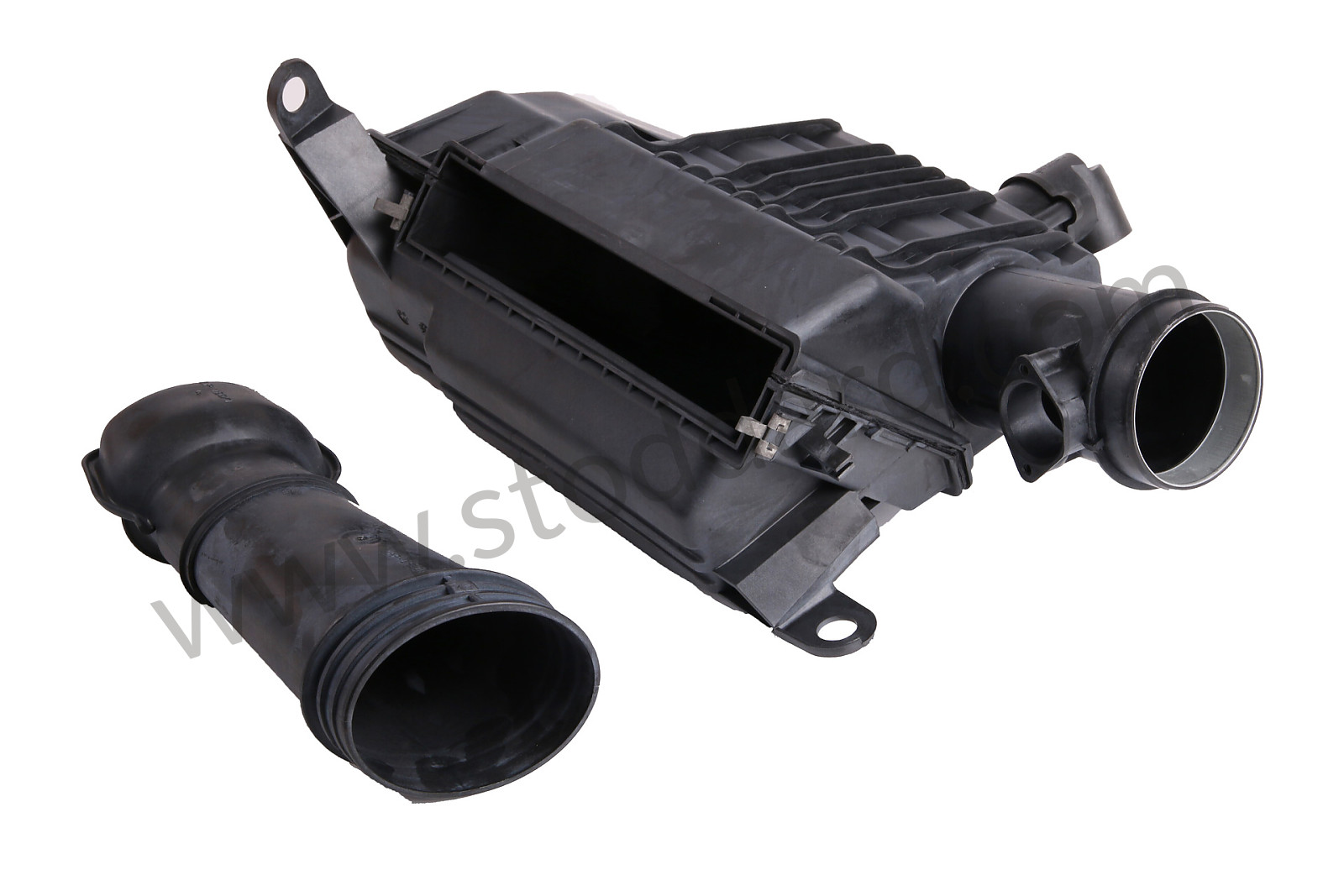

HOUSING
996 110 121 10 Genuine Usually ships in 4 business days

$805.53

Part details →
2

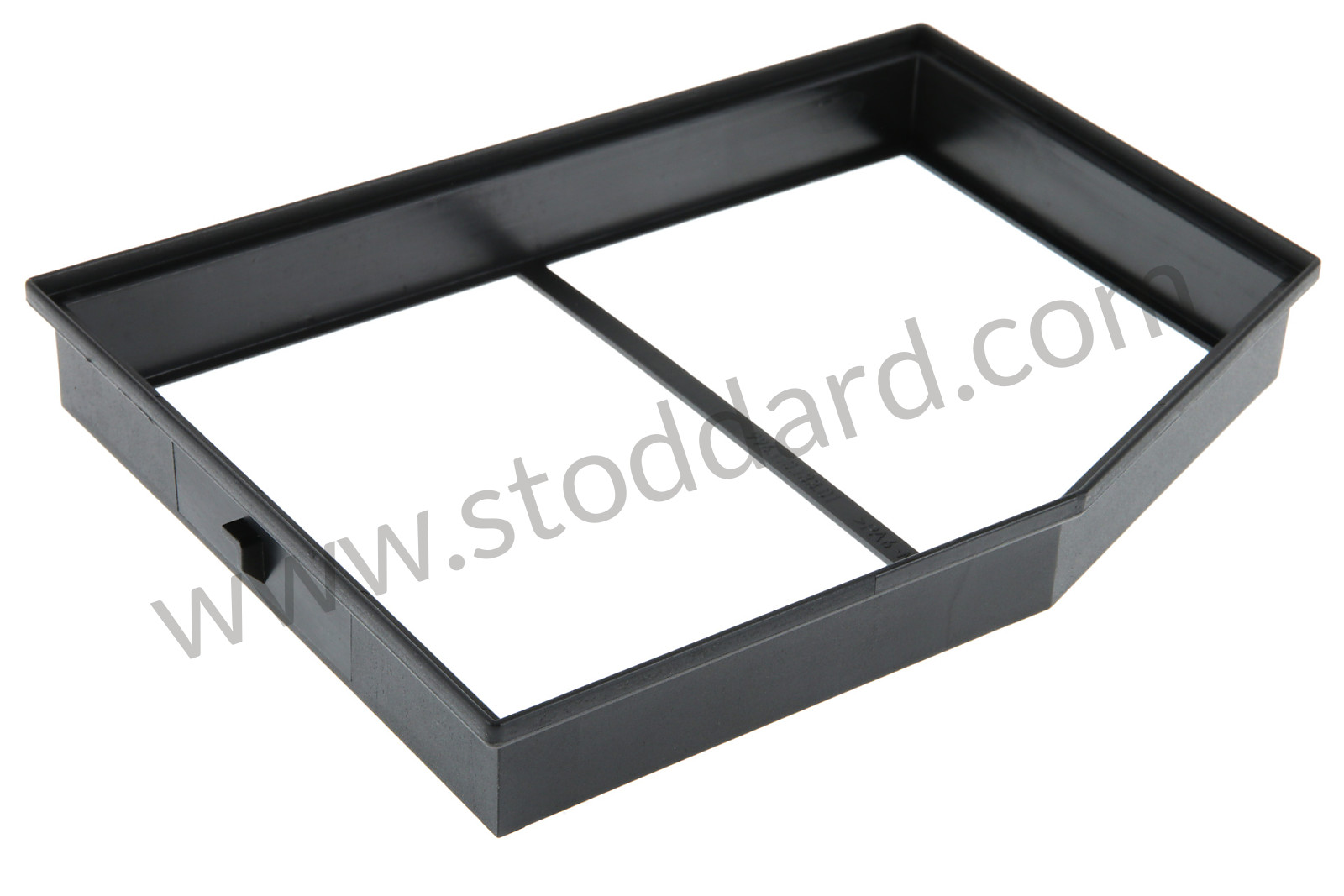

FRAME
996 110 133 01 Genuine Usually ships in 4 business days

$30.87

Part details →
3

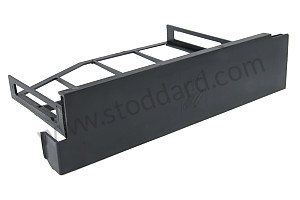

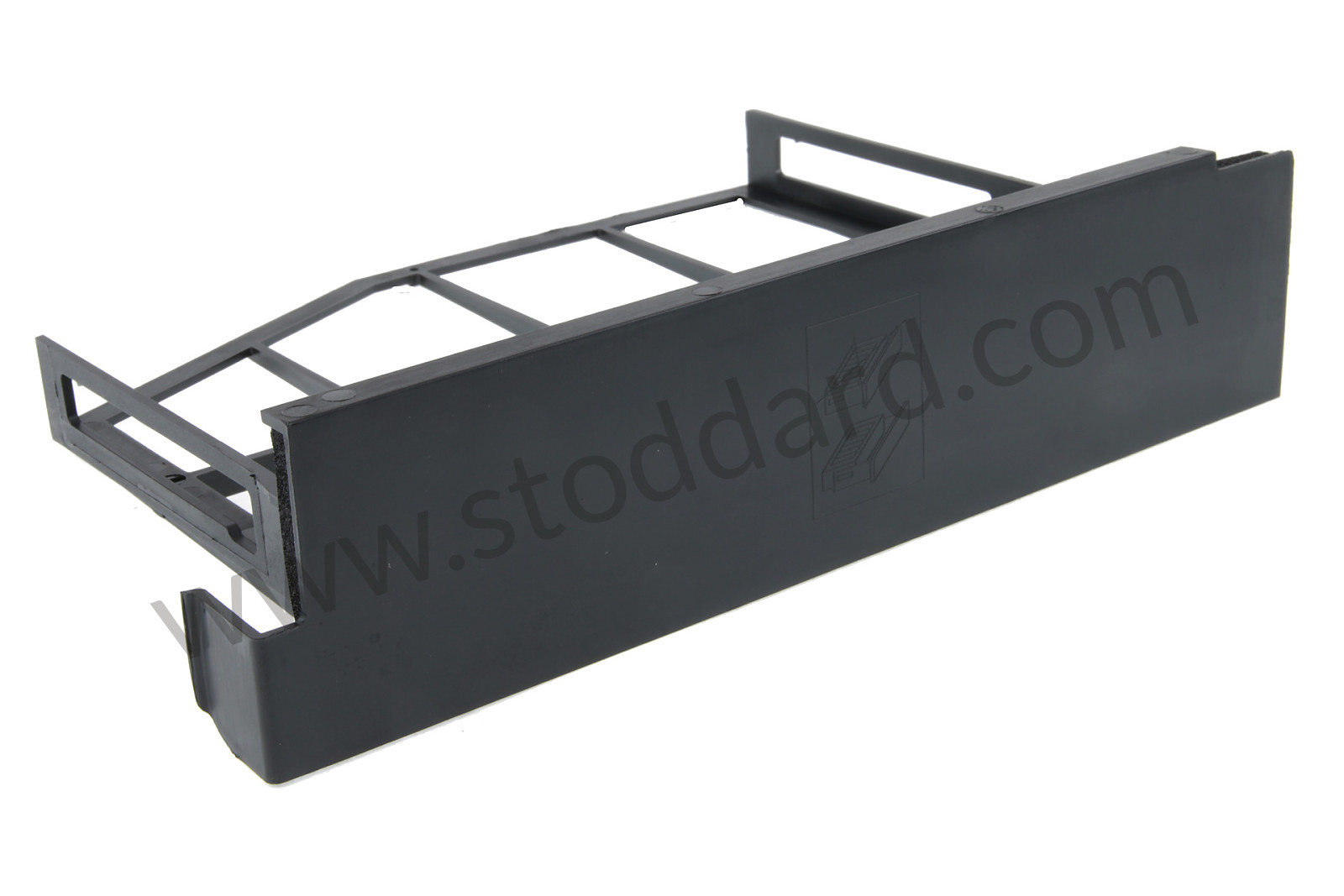

FRAME
996 110 123 02 Genuine Usually ships in 4 business days

$99.98

Part details →
4
Air Filter Cartridge For Boxster 1997-2004
2 versions Ship Tomorrow

From $30.95
Choose ›

2 Versions available for this part

Choose a version Part details →
5
Sleeve
900 095 099 02 Genuine Ship Tomorrow

$6.65

Recommended quantity: 3

Shown 3× on this diagram

Part details →
6
Rubber Grommet For Air Filter Housing 999.702.246.40
999 702 246 40 Genuine Ship Tomorrow

$4.57

Recommended quantity: 3

Shown 3× on this diagram

Part details →
7
Air Mass Flow Sensor For Boxster 986 996 997
986 606 125 01 Ship Tomorrow

$252.65

OPTION: E ACCELERATOR (Option code: M620)

Part details →
8
M6 X 25mm Bolt
900 075 333 01 Genuine Ship Tomorrow

$18.96

Recommended quantity: 2

Shown 2× on this diagram

Part details →
9
SCREW
900 075 482 09 Genuine Usually ships in 4 business days

$2.09

Part details →
10
O-RING
986 606 925 00 Genuine Usually ships in 4 business days

$6.42

Part details →
11
CUP
996 110 903 00 Genuine Usually ships in 4 business days

$123.01

Part details →
12

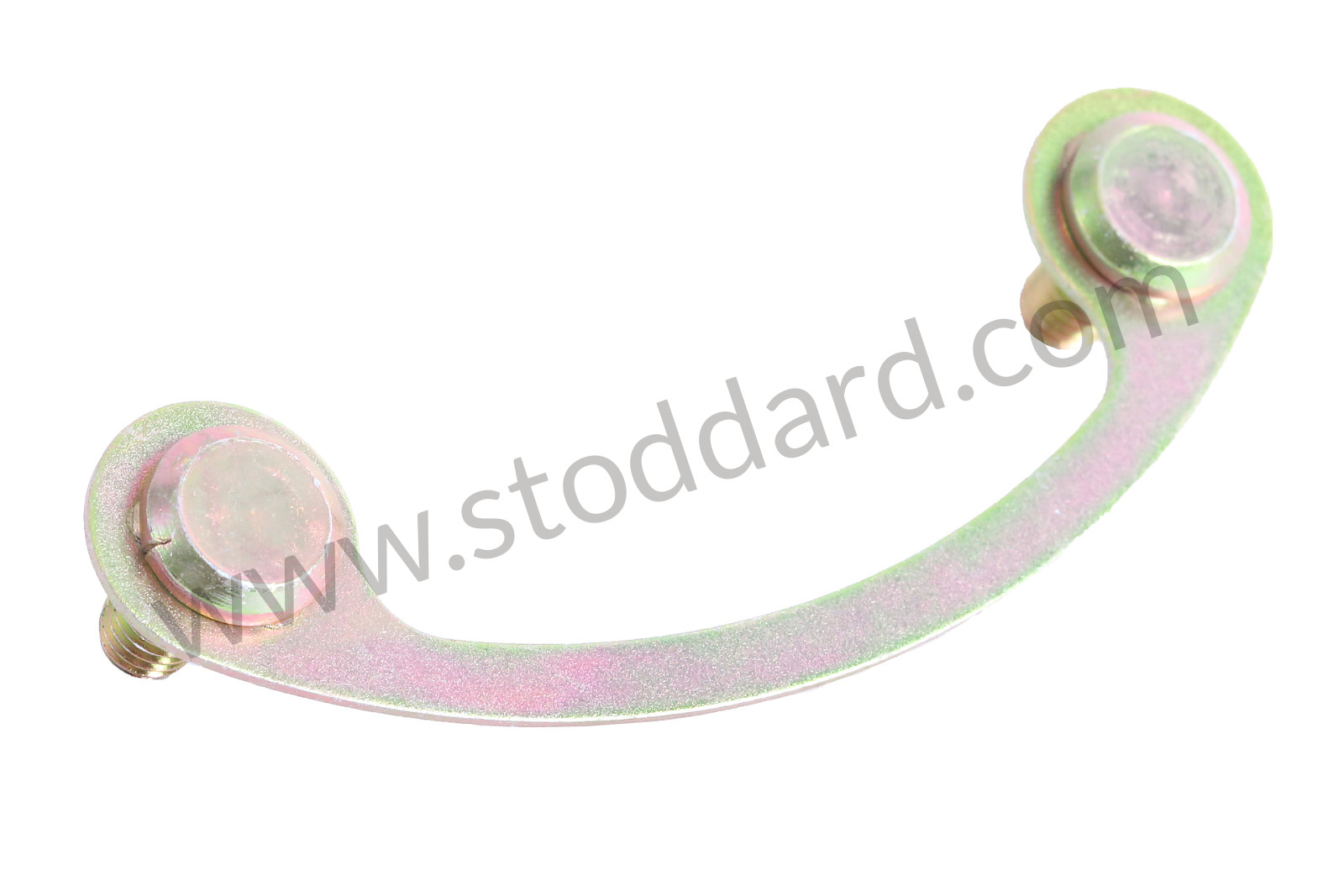

SUPPORT
996 110 907 00 Genuine Usually ships in 4 business days

$14.23

Part details →
13
HEXAGON-HEAD BOLT
900 377 010 01 Genuine Usually ships in 4 business days

$1.27

6 MM

Recommended quantity: 2

Part details →
14
WATER DRAIN TUBE
996 110 297 00 Genuine Usually ships in 4 business days

$47.40

Part details →
15
WASHER
996 110 295 00 Genuine Usually ships in 4 business days

$23.20

Part details →
