Back

Boxster 986 97-04

1997 • Boxster 2.5 • Cabrio • Manual Gearbox, 5 Speed

Left-hand drive

Choose another family of parts

Previous diagram

Next diagram

Diagram « FUEL TANK/FUEL PUMP/TANK GAUGE » for Boxster 986 97-04 • 1997 • Boxster 2.5 • Cabrio • Manual Gearbox, 5 Speed

23 parts

1

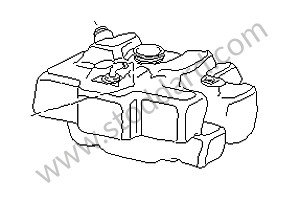

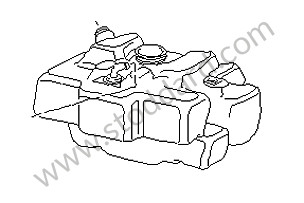

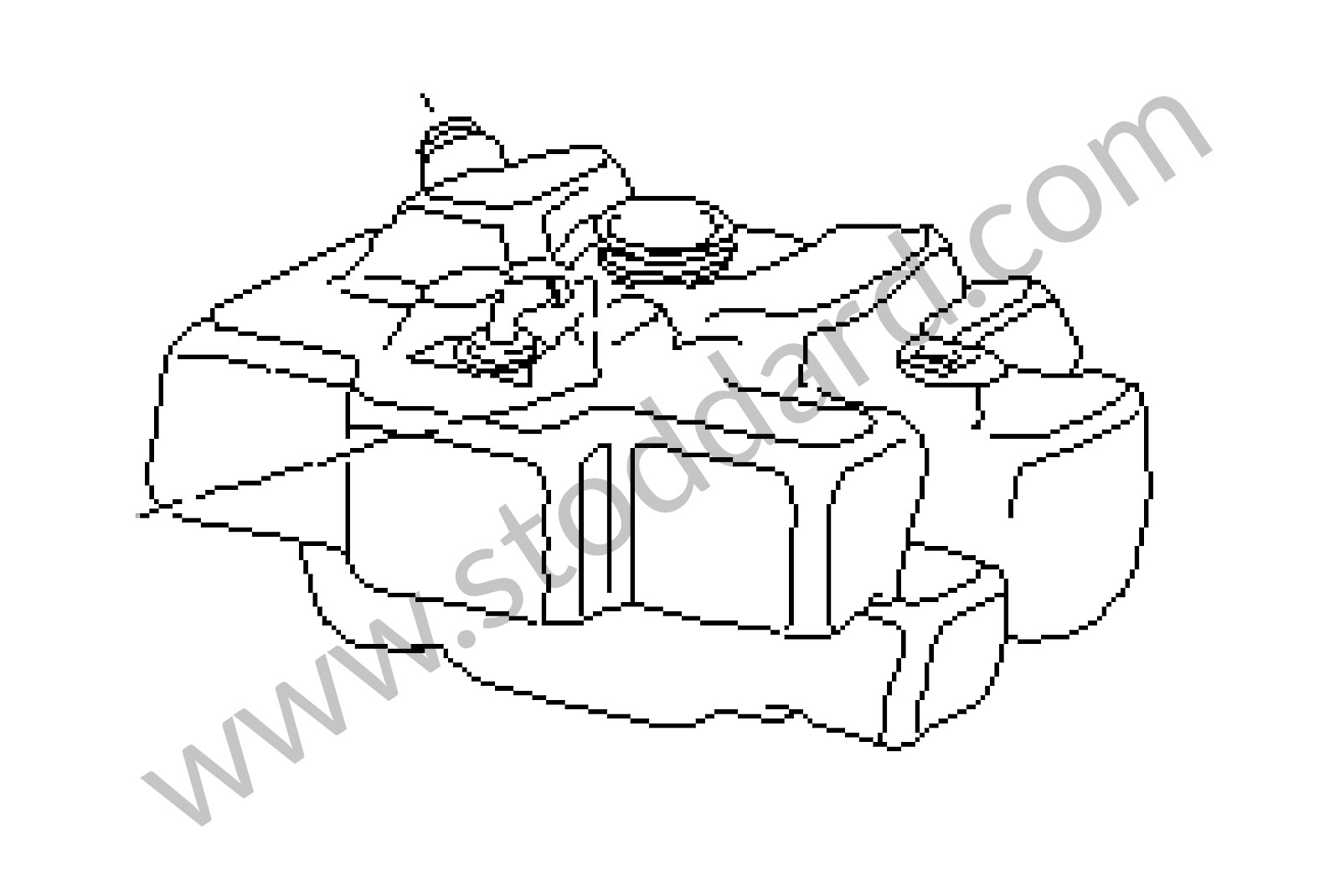

FUEL TANK
996 201 021 02 Genuine Usually ships in 4 business days

$1,663.76

Left-hand drive

Part details →
2
Plastic Union Nut Boxster 1997-04 996 1999-04 996.201.623.00
996 201 623 00 Genuine Usually ships in 4 business days

$5.98

Part details →
3
Seal Ring
2 versions Usually ships in 4 business days

From $27.55
Choose ›

2 Versions available for this part

Choose a version Part details →
4

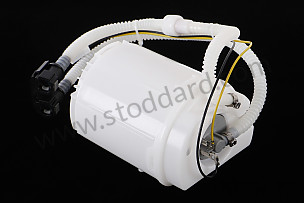

FUEL PUMP
A 996 620 102 00 Stoddard Usually ships in 6 business days

$611.55

Part details →
5
FUEL TANK GAUGE
996 620 808 00 Stoddard Ship Today (before 5:00pm)

$201.15

Part details →
6

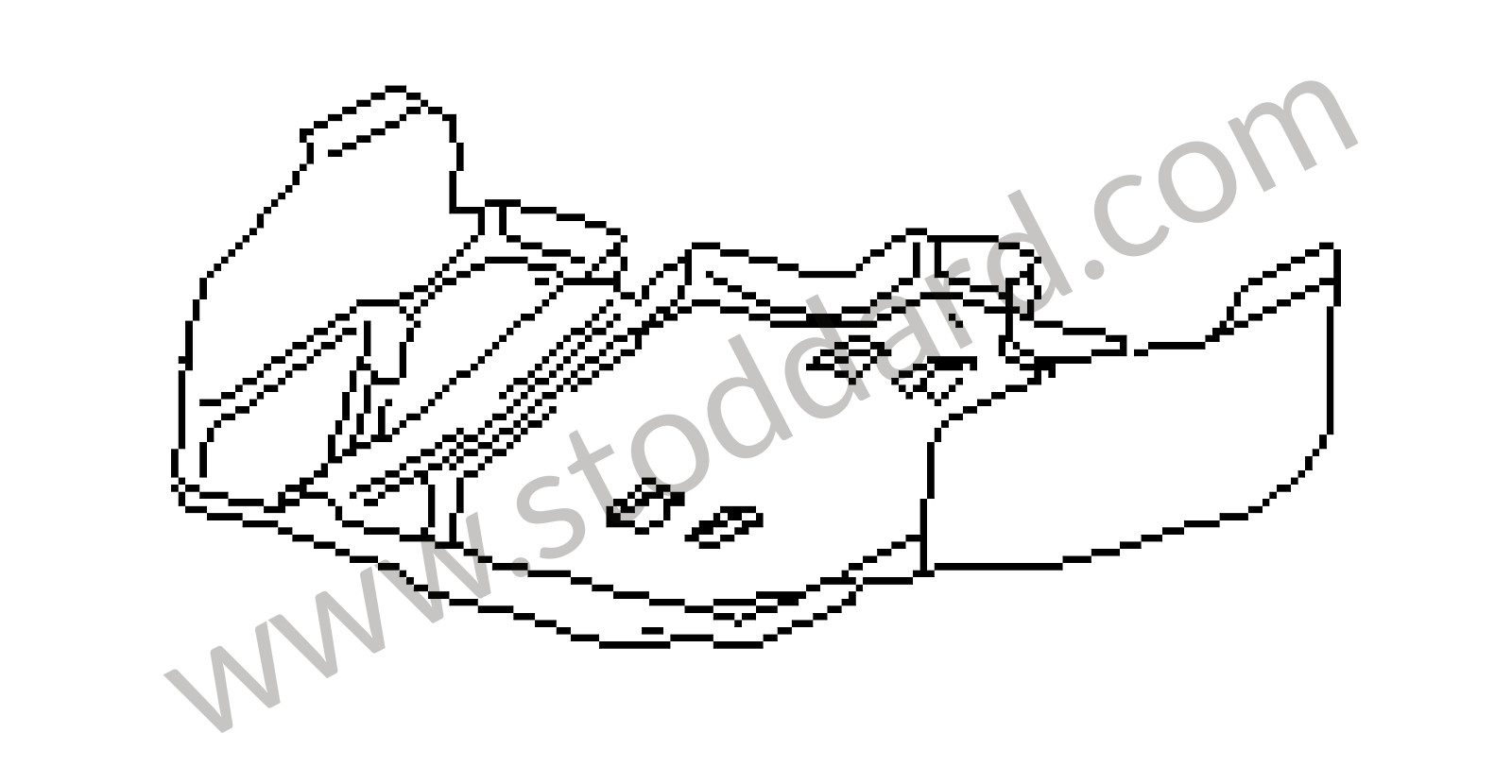

PROTECTIVE PLATE
996 201 331 00 Genuine Usually ships in 4 business days

$135.85

Left-hand drive

Part details →
7
RESTRAINING STRAP
997 201 105 01 Genuine Usually ships in 4 business days

$61.58

Part details →
8
RESTRAINING STRAP
997 201 106 01 Genuine Usually ships in 4 business days

$61.58

Part details →
9

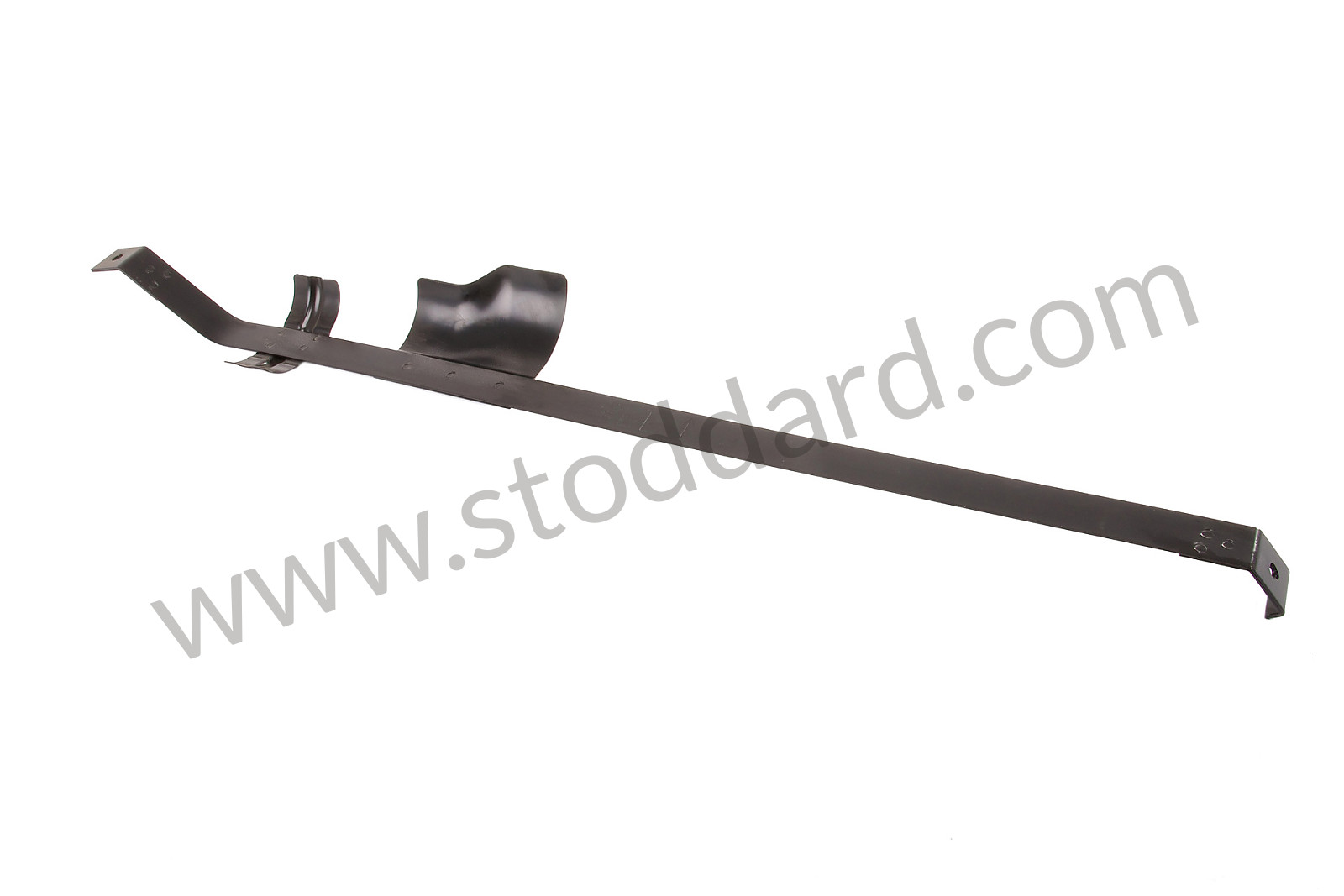

RESTRAINING STRAP
996 201 107 02 Genuine Usually ships in 4 business days

$58.24

Left-hand drive

Part details →
10
SCREW
900 075 479 01 Genuine Usually ships in 4 business days

$22.77

Recommended quantity: 4

Shown 3× on this diagram

Part details →
11
FILLER NECK
996 201 043 09 Genuine Usually ships in 4 business days

$457.94

Part details →
12
Fuel Vent
996 201 143 01 Genuine Usually ships in 4 business days

$276.75

Part details →
13
HEXAGON-HEAD BOLT
900 378 036 01 Genuine Usually ships in 4 business days

$1.34

M 6 X 16 MM

Recommended quantity: 3

Shown 2× on this diagram

Part details →
14
Fuel Tank Gas Cap For 996 997 Boxster Cayman 996.201.241.03
996 201 241 03 Stoddard Ship Today (before 5:00pm)

$22.75

Part details →
15
SUPPORT WASHER
996 201 755 00 Genuine Usually ships in 4 business days

$15.56

Part details →
16
GASKET
996 201 753 00 Genuine Usually ships in 4 business days

$15.56

Part details →
17
SUPPORT
996 201 751 00 Genuine Usually ships in 4 business days

$35.92

Part details →
18
HOSE CLAMP
999 512 587 09 Genuine Usually ships in 4 business days

$4.07

Part details →
19

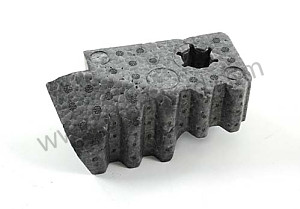

FOAM PART
996 201 583 00 Genuine Usually ships in 4 business days

$2.75

Part details →
20
VALVE
996 605 203 01 Genuine Usually ships in 4 business days

$511.80

Part details →
21
CLAMP
999 512 456 00 Genuine Usually ships in 4 business days

$6.83

Part details →
22

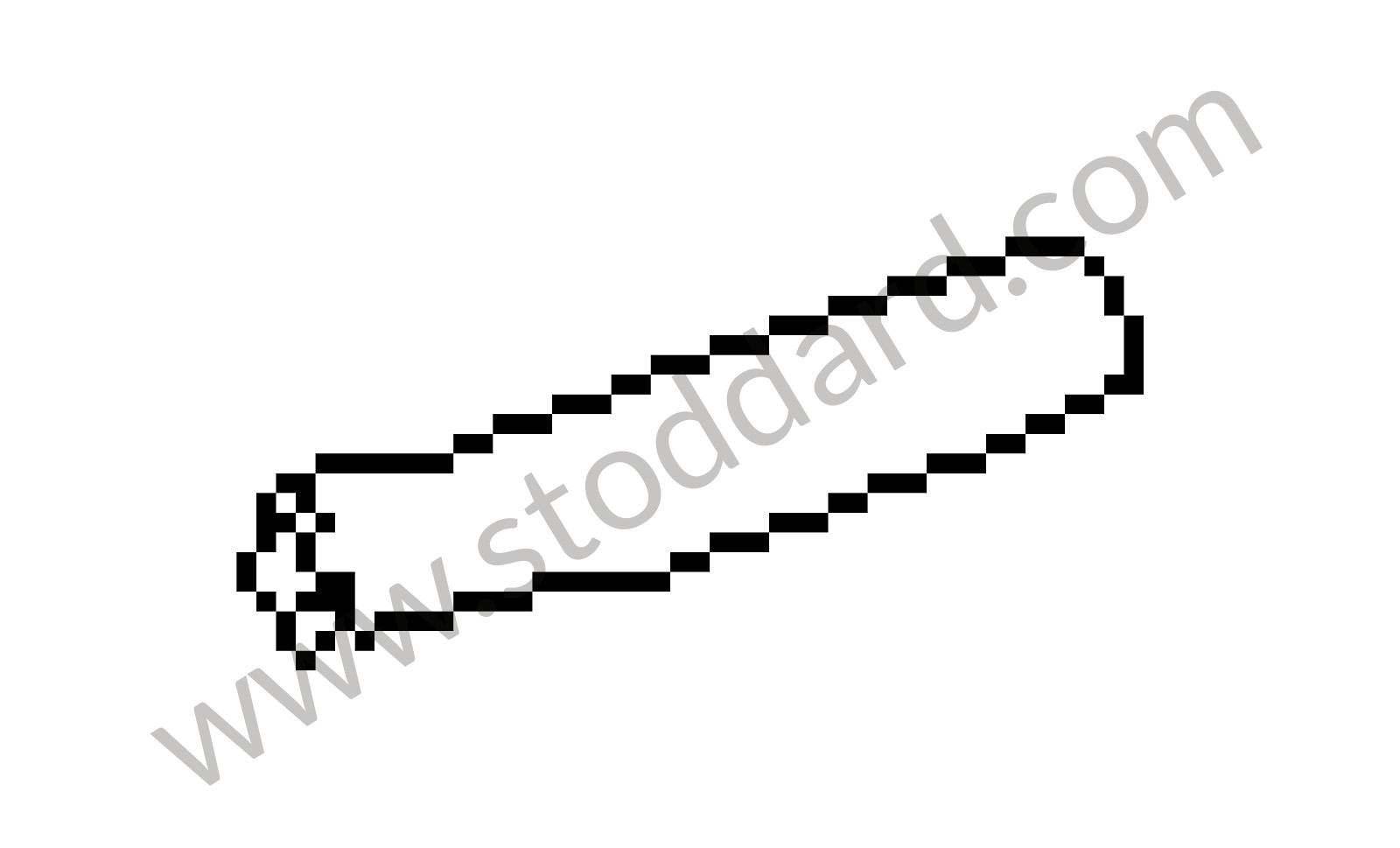

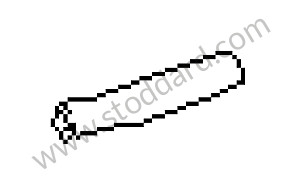

BREATHER HOSE
996 201 761 00 Genuine Usually ships in 4 business days

$217.87

Part details →
23
CLAMP
999 512 479 00 Genuine Usually ships in 4 business days

$3.95

Part details →
