Previous diagram

Next diagram

Diagram « INJECTOR / FUEL PRESSURE REGULATOR/ INJECTION HARNESS » for 996 Gt3 / Gt3-1 • 2004 • 996 Gt3 • Coupe • Manual Gearbox, 6 Speed

19 parts

1
FUEL COLLECTION PIPE
996 110 307 72 Genuine Usually ships in 4 business days

$249.16

Part details →
2
FUEL COLLECTION PIPE
996 110 308 91 Genuine Usually ships in 4 business days

$726.44

Part details →
3
FUEL HOSE
996 110 309 74 Genuine Usually ships in 4 business days

$559.51

Part details →
4
O-RING
999 707 276 40 Genuine Usually ships in 4 business days

$19.11

Part details →
5
O-RING
999 707 277 40 Genuine Usually ships in 4 business days

$19.11

Part details →
6
RETAINING CLIP
993 110 196 00 Genuine Usually ships in 4 business days

$8.06

Part details →
7
VALVE
993 110 217 00 Genuine Usually ships in 4 business days

$18.03

Part details →
8
CAP
997 110 218 00 Genuine Usually ships in 4 business days

$12.78

Part details →
9
RETAINING CLIP
996 110 113 53 Genuine Usually ships in 4 business days

$1.54

Recommended quantity: 6

Part details →
10
HEXAGON-HEAD BOLT
900 378 035 01 Genuine Usually ships in 4 business days

$1.95

M 6 X 16 MM

Recommended quantity: 6

Shown 4× on this diagram

Part details →
11
INJECTOR VALVE
996 606 132 00 Genuine Usually ships in 4 business days

$243.79

Recommended quantity: 6

Part details →
12
Rubber O-Ring For Injector Valve
944 110 901 01 Genuine Usually ships in 4 business days

$14.86

Recommended quantity: 12

Part details →
13
CLAMP
999 511 234 02 Genuine Usually ships in 4 business days

$3.89

Part details →
14
CLAMP
999 511 116 03 Genuine Usually ships in 4 business days

$9.46

Part details →
15
FEED LINE
996 110 315 76 Genuine Usually ships in 4 business days

$621.22

Part details →
16

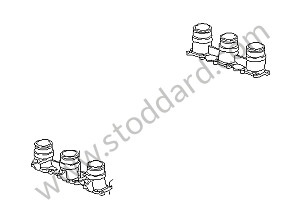

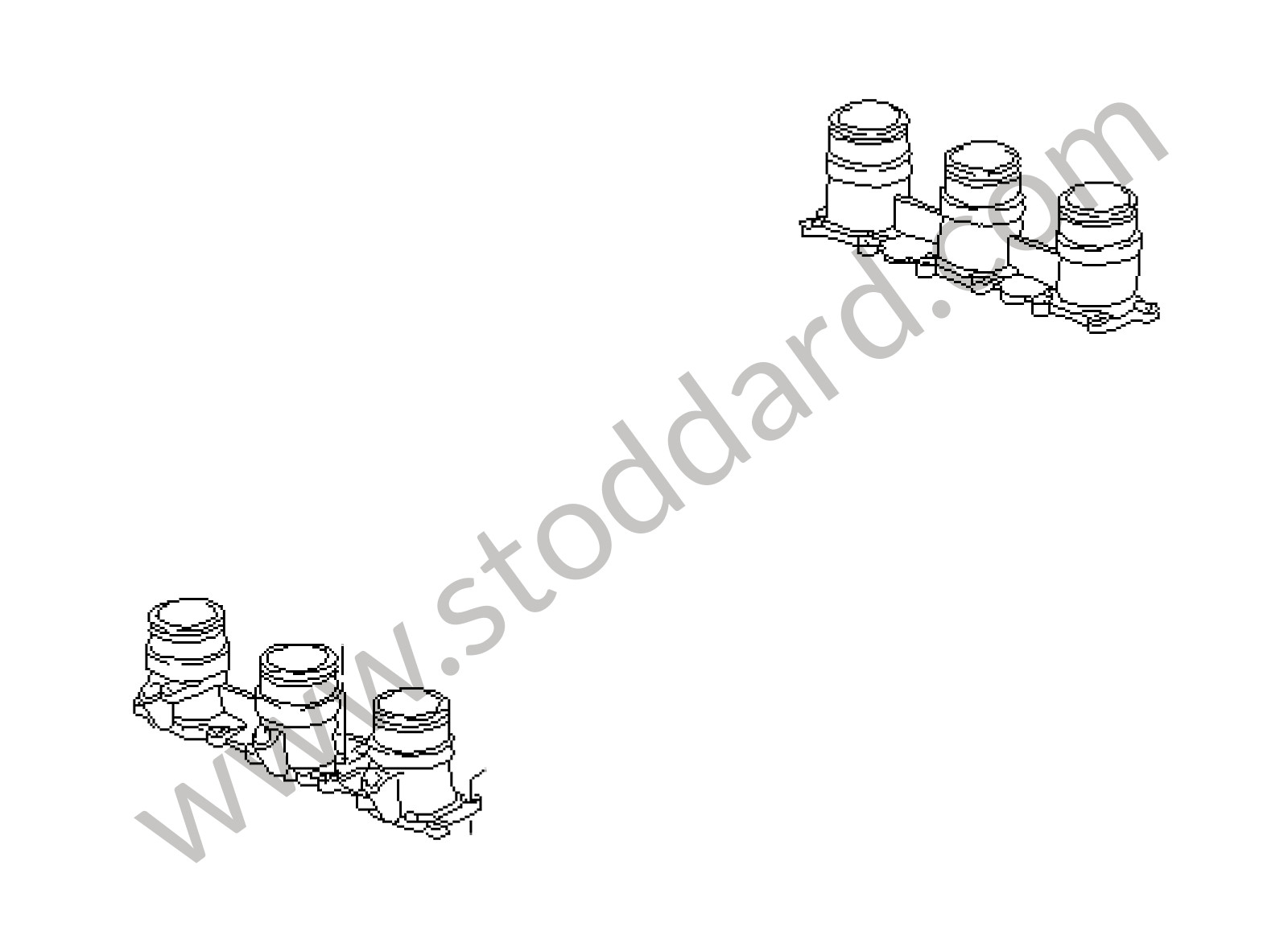

INTAKE MANIFOLD
996 110 101 93 Genuine Usually ships in 4 business days

$701.51

Shown 2× on this diagram

Part details →
17
GASKET
A 996 110 103 91 Stoddard Usually ships in 6 business days

$36.70

Recommended quantity: 2

Shown 2× on this diagram

Part details →
18
6x20 Hex Head Bolt 356 911 912
900 378 030 01 Genuine Ship Today (before 5:00pm)

$1.23

6 X 20 MM

Recommended quantity: 24

Part details →
19
Hose Clamp 50-70mm For Air Hoses 356 60-65 911 70-86
999 512 349 01 Genuine Ship Today (before 5:00pm)

$9.02

Recommended quantity: 12

Shown 2× on this diagram

Part details →
