Diagram « AIR COOLING » for 964 • 1992 • 964 Rs • Coupe • Manual Gearbox, 5 Speed

20 parts

1
6x30 Screw
900 067 012 03 Genuine Ship Today (before 5:00pm)

$5.37

Part details →
2
FAN HOUSING
964 106 667 03 Genuine Usually ships in 4 business days

$1,536.24

Part details →
3
Air Cooling Restraining Strap For 911 Carrera 1989-94
964 106 017 01 Genuine Usually ships in 4 business days

$329.33

Part details →
4
PAN-HEAD SCREW
900 067 290 03 Genuine Usually ships in 4 business days

$13.24

Part details →
5
PIN
964 106 273 02 Genuine Usually ships in 4 business days

$30.37

Recommended quantity: 2

Part details →
6

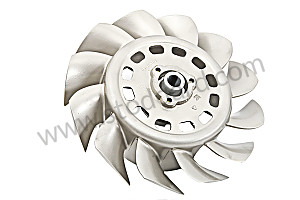

IMPELLER
964 106 015 40 Genuine Usually ships in 4 business days

$938.01

Part details →
7
PULLEY HALF
964 106 511 03 Genuine Usually ships in 4 business days

$59.53

Recommended quantity: 2

Part details →
8
Shim Washer For Alternator Belt
964 106 517 01 Genuine Ship Today (before 5:00pm)

$10.50

Recommended quantity: 6

Shown 2× on this diagram

Part details →
9
Lock Nut
999 084 094 01 Genuine Ship Today (before 5:00pm)

$3.42

Recommended quantity: 3

Part details →
10
NARROW V-BELT
2 versions Usually ships in 4 business days

From $6.13
Choose ›

2 Versions available for this part

Shown 2× on this diagram

Choose a version Part details →
11
SHIM
964 106 268 00 Genuine Usually ships in 4 business days

$13.59

Recommended quantity: 6

Shown 2× on this diagram

Part details →
12
SPACER SLEEVE
964 106 515 30 Genuine Usually ships in 4 business days

$43.33

Part details →
13
HUB EXTENSION
930 603 041 01 Genuine Usually ships in 4 business days

$91.38

Part details →
14
Washer 6mm Various Applications
2 versions Ship Today (before 5:00pm)

From $0.25
Choose ›

2 Versions available for this part

Choose a version Part details →
15
Nut
900 910 010 01 Genuine Ship Today (before 5:00pm)

$3.09

Recommended quantity: 4

Part details →
16
M16 X 1.5 Alternator Cooling Fan Hex Nut 911 964 993 996 997
900 034 013 01 Genuine Ship Today (before 5:00pm)

$9.70

Part details →
17
Fan Impeller
928 603 045 01 Genuine Usually ships in 4 business days

$109.11

Part details →
18
10mm Nut
900 034 003 02 Stoddard Ship Today (before 5:00pm)

$0.70

Part details →
19

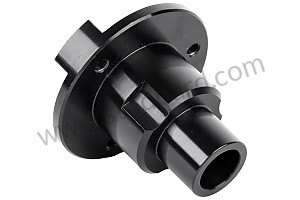

WHEEL HUB
993 106 051 80 Genuine Usually ships in 4 business days

$308.75

Part details →
20
PAN-HEAD SCREW
900 976 004 01 Genuine Usually ships in 4 business days

$2.99

Recommended quantity: 3

Part details →
