Diagram « AIR CONDITIONING UNIT FOR VEHICLE WITH ENHANCED AIR CONDITIONING » for 928 92-95 • 1993 • 928 Gts • Coupe • Manual Gearbox, 5 Speed
Only for vehicles fitted with : Option: air conditioner with improved efficiency (option code: m570)
Available
Hovered
Not for this model
Selected
Scroll to zoom · drag to move · double-click a part to open it
29 parts
-
1

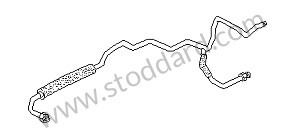

PRESSURE LINE928 570 093 04
Genuine
Usually ships in 4 business days
$870.04
Left-hand drive / OPTION: AIR CONDITIONER WITH IMPROVED EFFICIENCY (Option code: M570) -
2

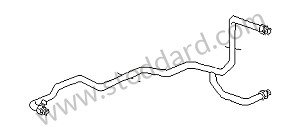

INTAKE PIPE928 570 091 04Genuine
Usually ships in 4 business days
$1,139.96
OPTION: AIR CONDITIONER WITH IMPROVED EFFICIENCY (Option code: M570) -
3
O-Ring For Pressure Line Boxster Cayman 911 05-12999 707 434 41Genuine
Ship Tomorrow
$11.92
OPTION: AIR CONDITIONER WITH IMPROVED EFFICIENCY (Option code: M570)Recommended quantity: 2Shown 4× on this diagram -
4
A/C O RING999 707 247 40Genuine
Usually ships in 4 business days
$5.18
OPTION: AIR CONDITIONER WITH IMPROVED EFFICIENCY (Option code: M570)Recommended quantity: 2Shown 3× on this diagram -
5
INTAKE PIPE928 570 101 03Genuine
Usually ships in 4 business days
$380.34
OPTION: AIR CONDITIONER WITH IMPROVED EFFICIENCY (Option code: M570) -
6

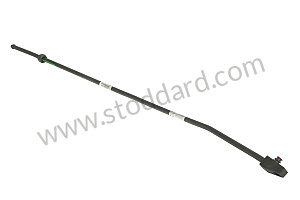

PRESSURE LINE928 570 103 03Genuine
Usually ships in 4 business days
$495.40
OPTION: AIR CONDITIONER WITH IMPROVED EFFICIENCY (Option code: M570) -
7
CLAMP999 591 863 40Genuine
Usually ships in 6 business days
$14.99
OPTION: AIR CONDITIONER WITH IMPROVED EFFICIENCY (Option code: M570) -

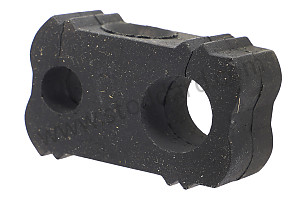

8
RUBBER MOUNTING999 591 864 40Genuine
Usually ships in 4 business days
$4.74
OPTION: AIR CONDITIONER WITH IMPROVED EFFICIENCY (Option code: M570) -
9
REFRIGERANT LINE928 570 105 03Genuine
Usually ships in 4 business days
$873.66
OPTION: AIR CONDITIONER WITH IMPROVED EFFICIENCY (Option code: M570) -
10
SOLENOID VALVE928 615 201 01Genuine
Usually ships in 4 business days
$217.57
OPTION: AIR CONDITIONER WITH IMPROVED EFFICIENCY (Option code: M570) -
11
Rubber O-Ring For Solenoid Valve 928 83-95999 707 284 40Genuine
Ship Tomorrow
$14.19
OPTION: AIR CONDITIONER WITH IMPROVED EFFICIENCY (Option code: M570)Recommended quantity: 2Shown 2× on this diagram -
12
REFRIGERANT LINE928 570 109 03Genuine
Usually ships in 4 business days
$332.39
OPTION: AIR CONDITIONER WITH IMPROVED EFFICIENCY (Option code: M570) -
13
RUBBER MOUNTING928 570 455 00Genuine
Usually ships in 4 business days
$41.98
OPTION: AIR CONDITIONER WITH IMPROVED EFFICIENCY (Option code: M570) -
14
$103.70
OPTION: AIR CONDITIONER WITH IMPROVED EFFICIENCY (Option code: M570) -
15
A\C O-Ring999 707 251 40Genuine
Ship Tomorrow
$6.53
OPTION: AIR CONDITIONER WITH IMPROVED EFFICIENCY (Option code: M570) -
16
EVAPORATOR928 570 211 01Genuine
Usually ships in 4 business days
$2,666.40
OPTION: AIR CONDITIONER WITH IMPROVED EFFICIENCY (Option code: M570) -

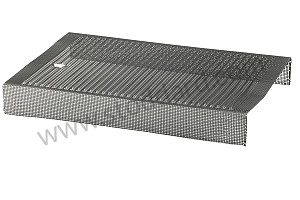

17
GRILLE928 570 291 00Genuine
Usually ships in 4 business days
$32.60
OPTION: AIR CONDITIONER WITH IMPROVED EFFICIENCY (Option code: M570) -
18
BUSH928 570 295 00Genuine
Usually ships in 4 business days
$14.76
OPTION: AIR CONDITIONER WITH IMPROVED EFFICIENCY (Option code: M570) -
19
BLOWER MOTOR928 624 117 00Genuine
Usually ships in 4 business days
$395.65
OPTION: AIR CONDITIONER WITH IMPROVED EFFICIENCY (Option code: M570) -
20
POTENTIOMETER928 613 153 00Genuine
Usually ships in 4 business days
$44.32
OPTION: AIR CONDITIONER WITH IMPROVED EFFICIENCY (Option code: M570) -
21
BLOWER SWITCH911 613 243 00Genuine
Usually ships in 4 business days
$127.10
OPTION: AIR CONDITIONER WITH IMPROVED EFFICIENCY (Option code: M570) -

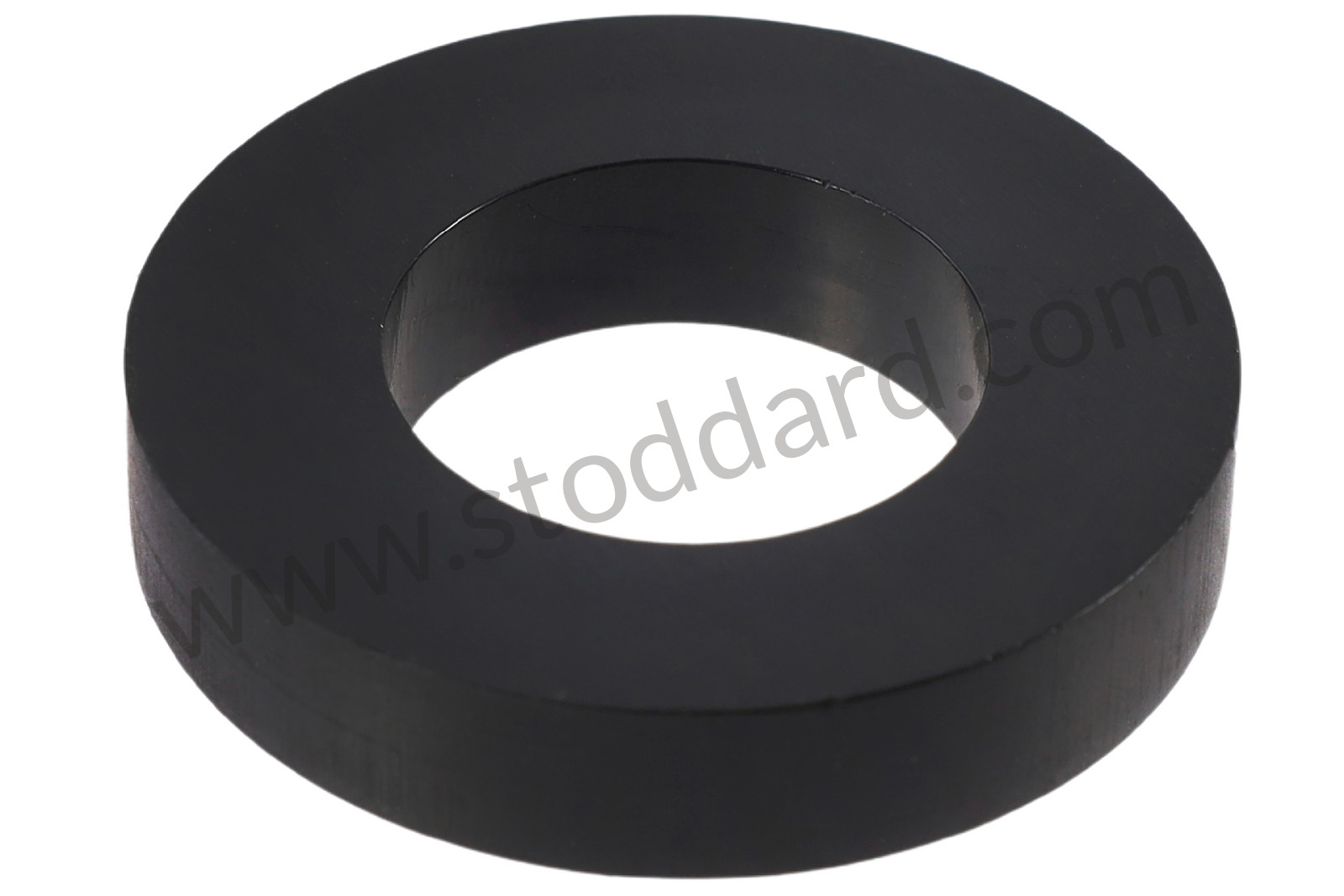

22
SPACER928 613 171 00Genuine
Usually ships in 4 business days
$2.11
OPTION: AIR CONDITIONER WITH IMPROVED EFFICIENCY (Option code: M570)Recommended quantity: 2Shown 2× on this diagram -
23
From $18.99Choose ›
2 Versions available for this part -
24
ROSE928 613 177 00Genuine
Usually ships in 4 business days
$6.56
LEFT / OPTION: AIR CONDITIONER WITH IMPROVED EFFICIENCY (Option code: M570) -
25
Fan Switch Nut / Cover For 911 1977-1989911 613 119 02Genuine
Usually ships in 4 business days
$16.69
OPTION: AIR CONDITIONER WITH IMPROVED EFFICIENCY (Option code: M570)Recommended quantity: 2Shown 2× on this diagram -
26

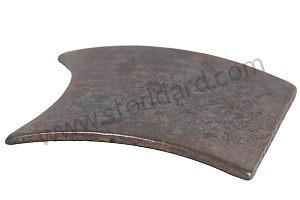

SPRING CLIP928 613 219 00Genuine
Usually ships in 4 business days
$1.05
OPTION: AIR CONDITIONER WITH IMPROVED EFFICIENCY (Option code: M570)Recommended quantity: 2Shown 2× on this diagram -
27
KNOB928 613 155 01Genuine
Usually ships in 4 business days
$10.91
LEFT / OPTION: AIR CONDITIONER WITH IMPROVED EFFICIENCY (Option code: M570) -
28
SERIES RESISTOR928 618 137 00Genuine
Usually ships in 4 business days
$630.74
OPTION: AIR CONDITIONER WITH IMPROVED EFFICIENCY (Option code: M570) -

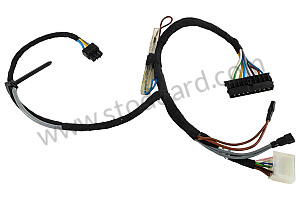

29
WIRING HARNESS928 612 222 01Genuine
Usually ships in 4 business days
$109.21
OPTION: AIR CONDITIONER WITH IMPROVED EFFICIENCY (Option code: M570)
