Left-hand drive
$170.57
Diagram « AIR CONDITIONING UNIT » for 924S • 1986 • 924S 2.5 • Coupe • Manual Gearbox, 5 Speed
Only for vehicles fitted with : Option: air conditioner (option code: m573)
Available
Hovered
Not for this model
Selected
Scroll to zoom · drag to move · double-click a part to open it
14 parts
-

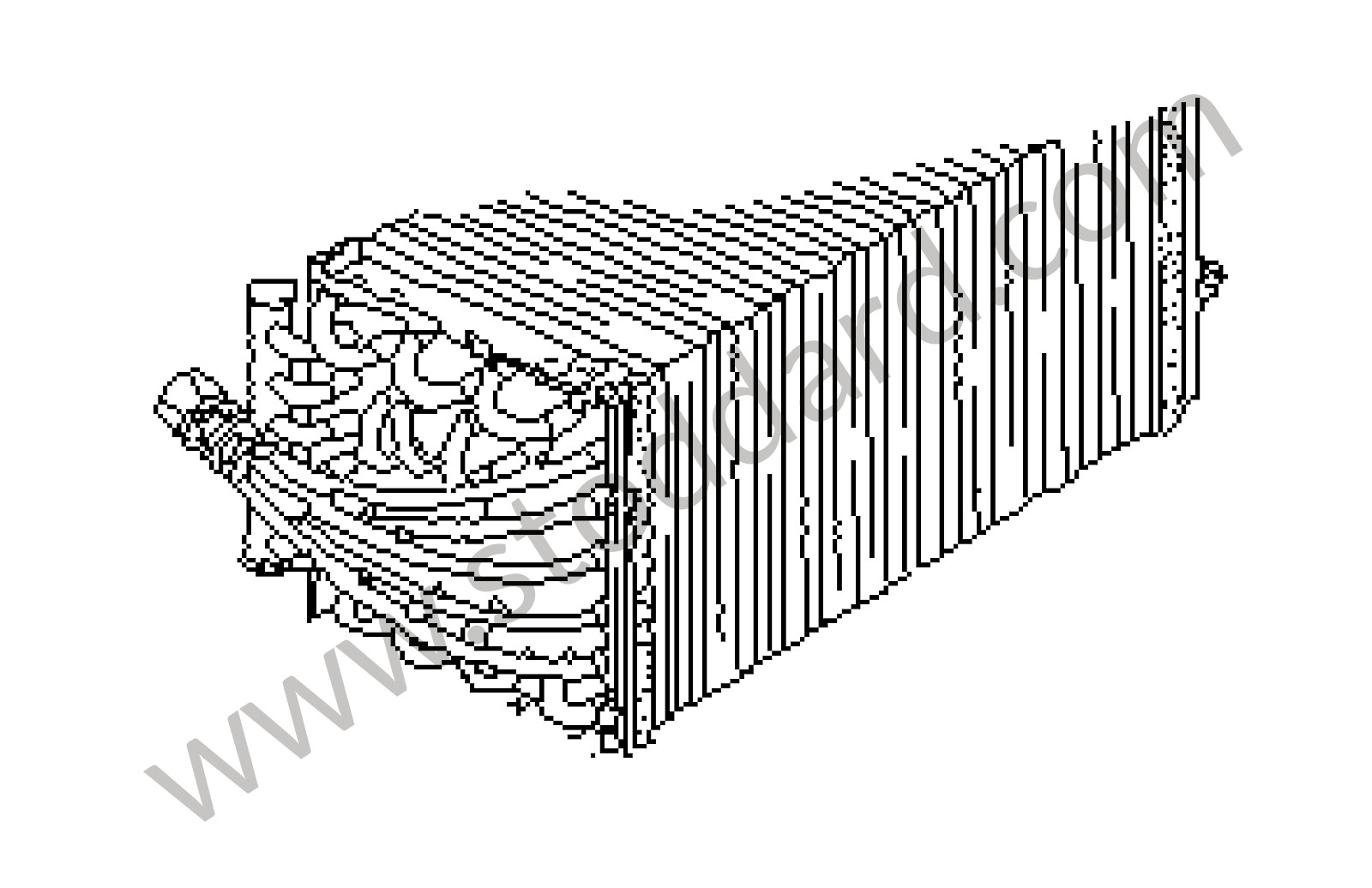

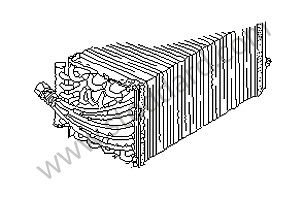

1
EVAPORATOR477 820 903
Genuine
Usually ships in 4 business days
$1,212.33
Left-hand drive / OPTION: AIR CONDITIONER (Option code: M573) -

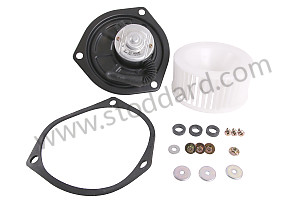

2
BLOWER477 820 905Genuine
Usually ships in 4 business days
$297.79
Left-hand drive / OPTION: AIR CONDITIONER (Option code: M573) -
3
CLAMP477 820 449Genuine
Usually ships in 4 business days
$1.23
Left-hand drive / OPTION: AIR CONDITIONER (Option code: M573)Recommended quantity: 11Shown 2× on this diagram -

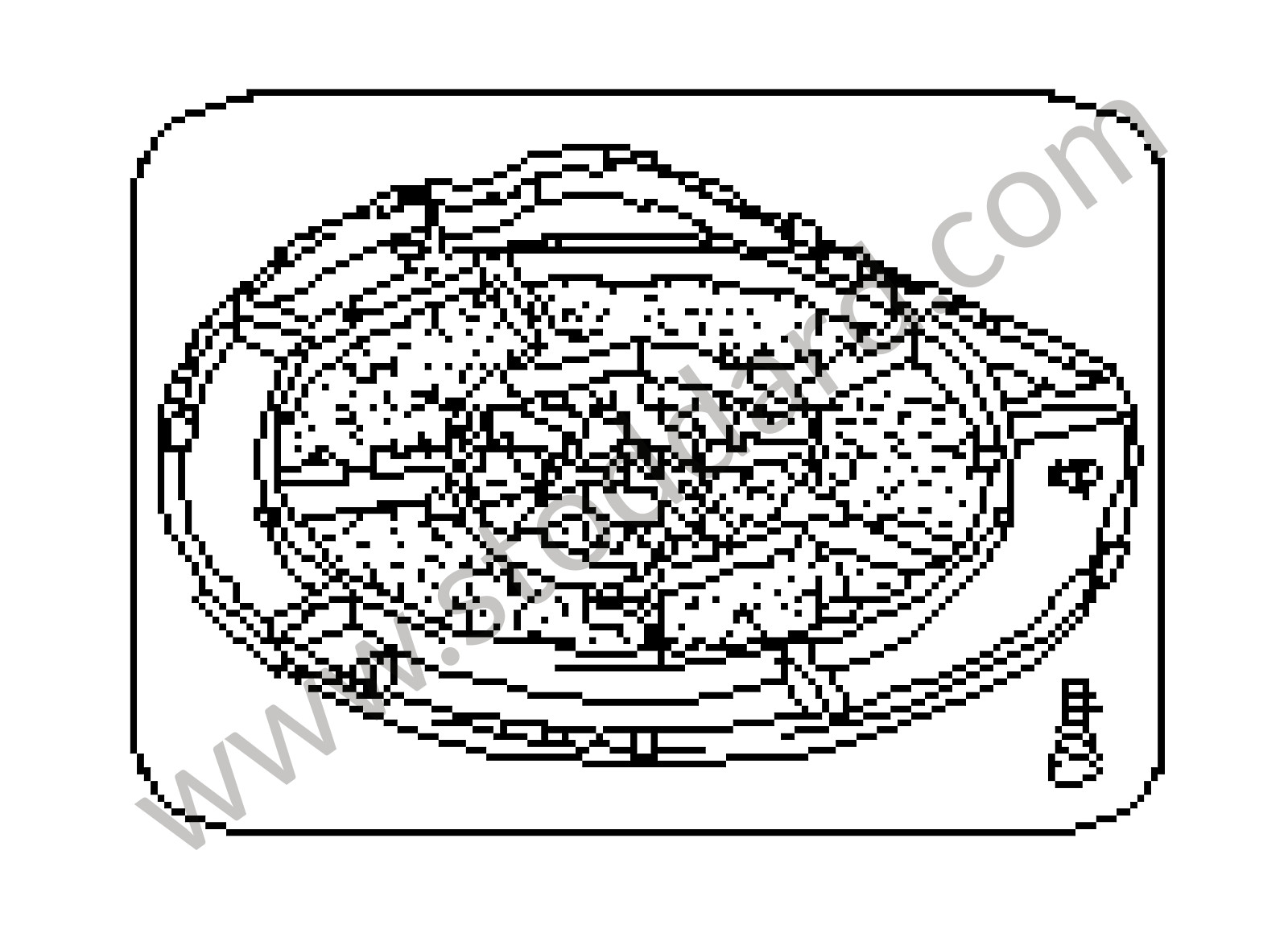

4
Air Filter477 820 907Genuine
Usually ships in 4 business days
$918.17
Left-hand drive / OPTION: AIR CONDITIONER (Option code: M573) -

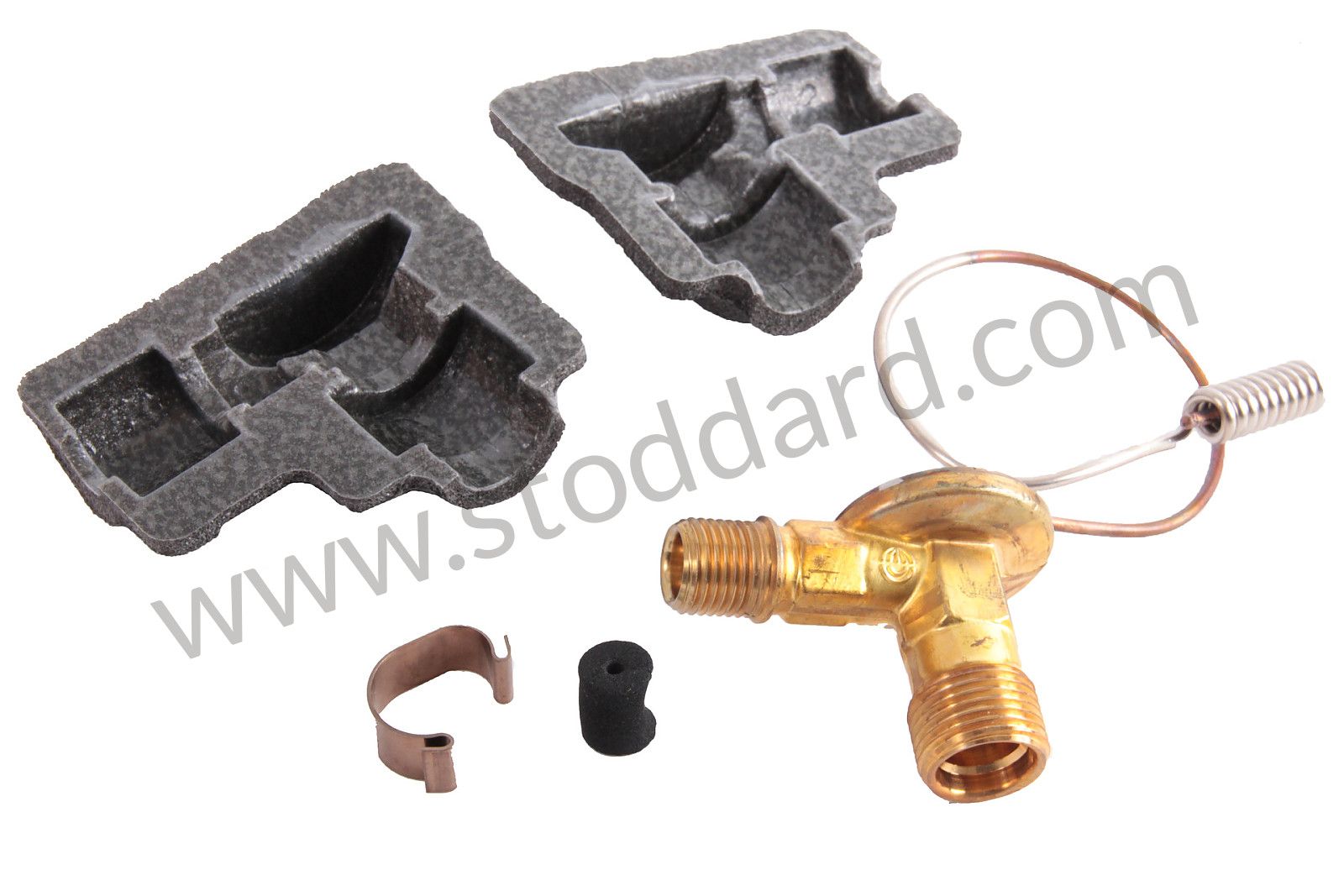

5
EXPANSION VALVE477 820 909Genuine
Usually ships in 4 business days
$343.21
Left-hand drive / OPTION: AIR CONDITIONER (Option code: M573) -
6
SET OF O-RINGS477 820 911Genuine
Usually ships in 4 business days
$4.61
Left-hand drive / OPTION: AIR CONDITIONER (Option code: M573) -
7
RESISTOR477 820 915Genuine
Usually ships in 4 business days
$108.70
Left-hand drive / OPTION: AIR CONDITIONER (Option code: M573) -
8
VACUUM LINE477 820 557Genuine
Usually ships in 4 business days
$30.30
Left-hand drive / OPTION: AIR CONDITIONER (Option code: M573) -

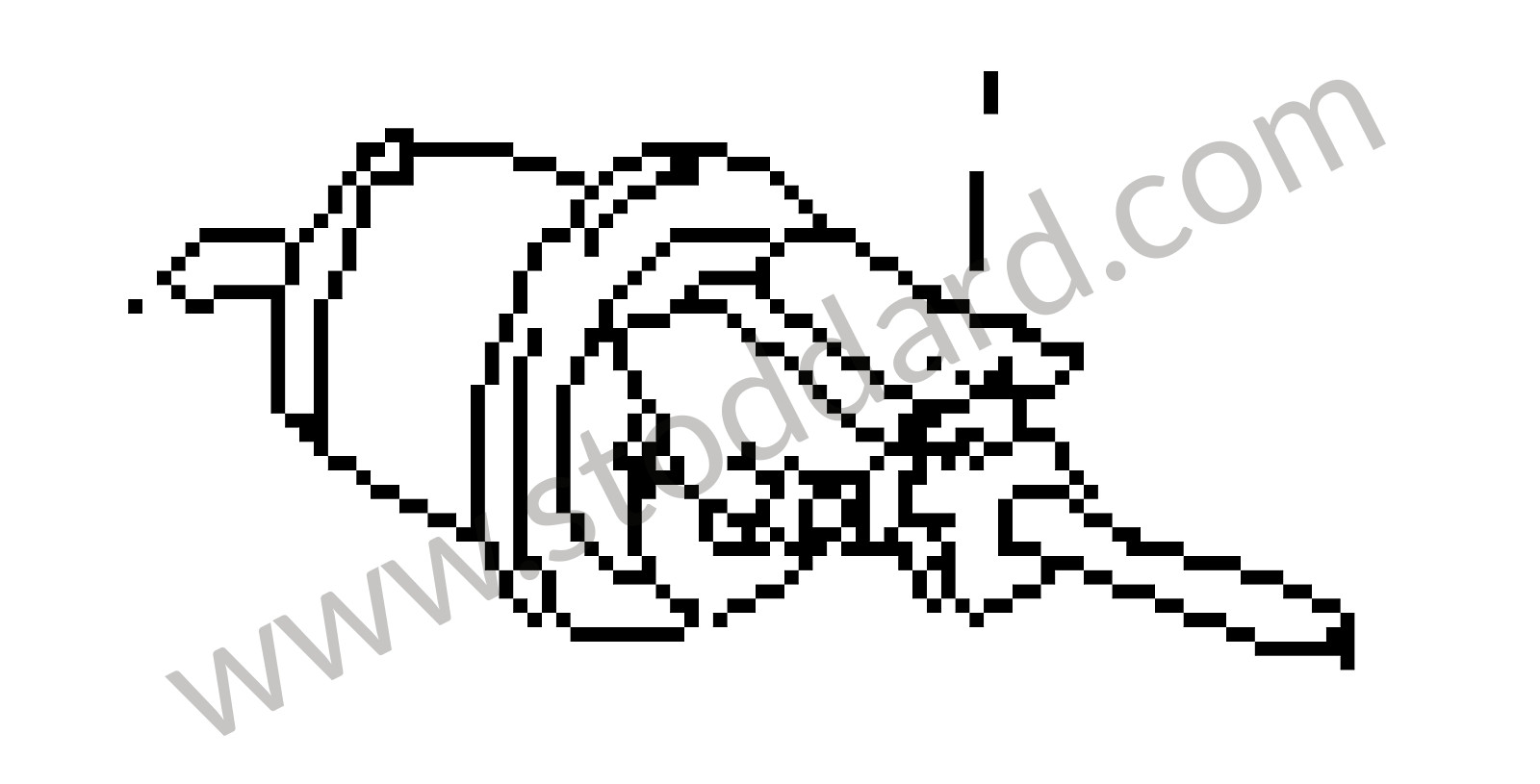

9
VACUUM UNIT477 820 545Genuine
Usually ships in 4 business days
$86.42
Left-hand drive / OPTION: AIR CONDITIONER (Option code: M573) -

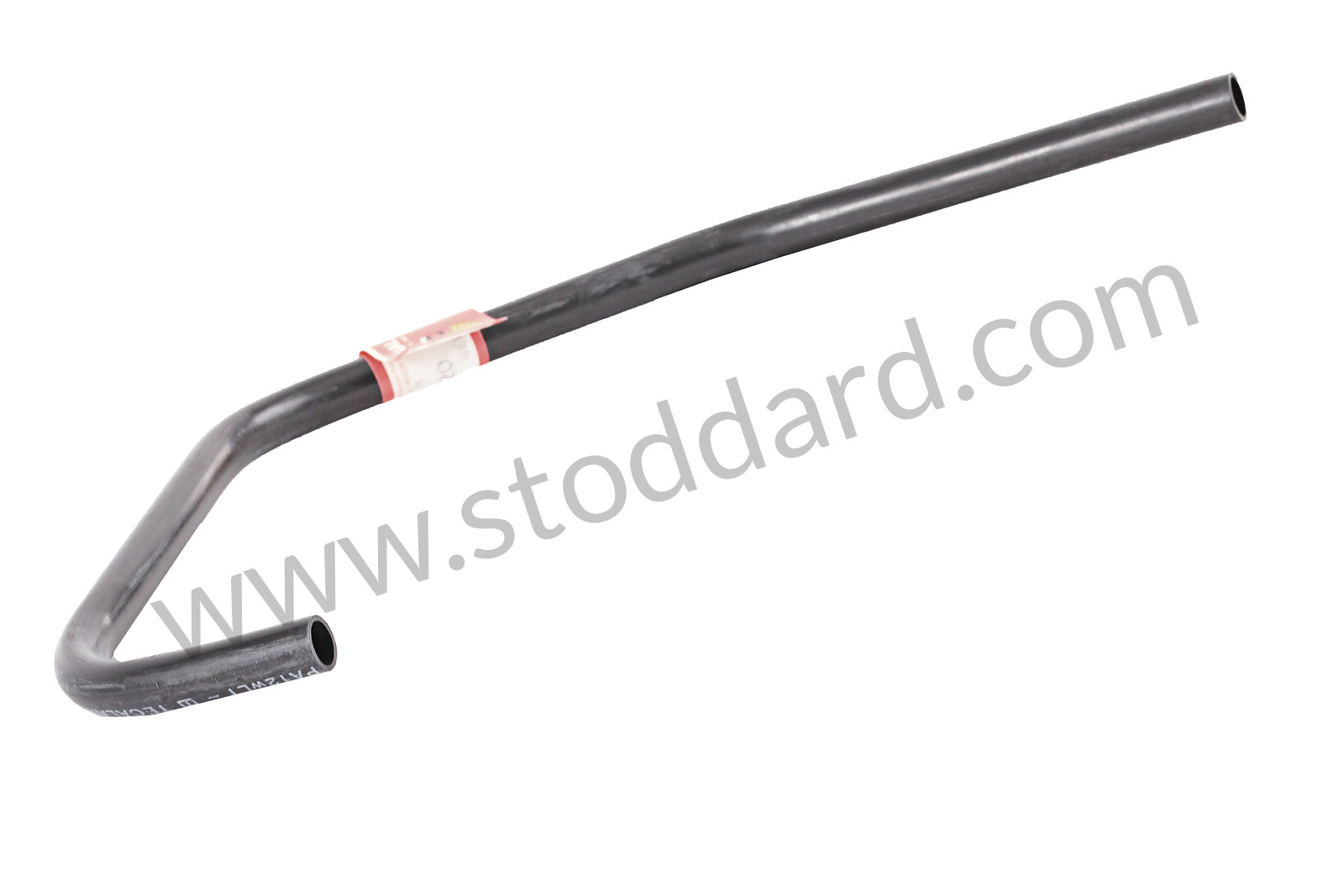

10
WATER DRAIN HOSE477 820 523Genuine
Usually ships in 4 business days
$14.09
Left-hand drive / OPTION: AIR CONDITIONER (Option code: M573) -
11
GASKET477 820 447Genuine
Usually ships in 4 business days
$4.82
Left-hand drive / OPTION: AIR CONDITIONER (Option code: M573)Recommended quantity: 2 -
12
HOUSING477 820 4 21AGenuine
Usually ships in 4 business days
$57.80
Left-hand drive / OPTION: AIR CONDITIONER (Option code: M573) -
13
HOUSING477 820 4 20AGenuine
Usually ships in 4 business days
$74.26
Left-hand drive / OPTION: AIR CONDITIONER (Option code: M573) -
14
RUBBER BOOT477 820 4 47AGenuine
Usually ships in 4 business days
$3.81
Left-hand drive / OPTION: AIR CONDITIONER (Option code: M573)
