Diagram « SELECTOR FORK AND SHAFTS FOR MANUAL GEARBOX » for 911 70-73 • 1972 • 2.4T-E • Coupe • Manual Gearbox, 4 Speed

20 parts

1
Hexagonal Head Bolt M8x28mm
900 075 136 03 Genuine Ship Today (before 5:00pm)

$8.06

8 x 28 MM

Shown 4× on this diagram

Part details →
2
B8 8mm Lock Washer for ring gear bolts and other parts, fits 911 1965-1989, 914 sway bar.
3 versions Ship Today (before 5:00pm)

From $0.25
Choose ›

3 Versions available for this part

Choose a version Part details →
3
6mm Nut 356 / 911 1965-89 912 914
900 076 010 02 Stoddard Ship Today (before 5:00pm)

$0.40

Recommended quantity: 3

Part details →
4
SHIFT FORK
915 303 115 10 Genuine Usually ships in 4 business days

$289.70

Part details →
5
SELECTOR FORK
915 303 112 11 Genuine Usually ships in 4 business days

$436.25

3RD GEAR AND 4TH GEAR

Part details →
6
GEAR SHIFT ROD
915 303 103 51 Genuine Usually ships in 4 business days

$183.45

3RD GEAR AND 4TH GEAR

Part details →
7
Lock Split Washer B 6 MM M6
N 012 006 4 Genuine Ship Today (before 5:00pm)

$1.24

Recommended quantity: 3

Part details →
8
FORK
915 303 129 10 Genuine Usually ships in 4 business days

$265.97

Part details →
9
8mm X 14mm Zinc Spring Washer For Fuel Pump
N 012 241 1 Genuine Ship Today (before 5:00pm)

$1.83

Recommended quantity: 3

Shown 3× on this diagram

Part details →
10
Paper Transmission Gasket 911 70-89
915 303 225 00 Genuine Ship Today (before 5:00pm)

$9.95

Part details →
11

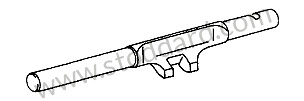

Detent
915 303 101 00 Genuine Not currently available

$8.06

1ST AND 2ND GEAR

Part details →
12
DRIVE SHAFT COVER
915 303 023 04 Genuine Usually ships in 4 business days

$266.14

Part details →
13
SHIFT FORK
915 303 111 21 Genuine Usually ships in 4 business days

$435.80

1ST AND 2ND GEAR

Part details →
14
Lever
915 303 133 00 Genuine Usually ships in 4 business days

$214.09

Part details →
15
8mm X 15mm Yellow Zinc Washer, Multiple Uses.
2 versions Ship Today (before 5:00pm)

From $0.45
Choose ›

2 Versions available for this part

Choose a version Part details →
16
SHIFT FORK
915 303 113 01 Genuine Usually ships in 4 business days

$486.38

5TH GEAR AND REVERSE

Part details →
17
CIRCLIP
N 012 415 1 Genuine Usually ships in 4 business days

$1.62

Part details →
18
Pin 4 X 26 For Transmission Gear 911 70-89
900 309 005 00 Genuine Ship Today (before 5:00pm)

$1.98

Part details →
19
GEAR SHIFT ROD
A 915 303 132 00 Usually ships in 6 business days

$311.05

Part details →
20
Selector Shaft
915 303 105 09 Genuine Usually ships in 4 business days

$214.01

5TH GEAR AND REVERSE

Part details →
