911-74-77

911 74-77 + 912E

1976 • 2.7S • Coupe • Manual Gearbox, 4 Speed

Left-hand drive

Choose another family of parts

Previous diagram

Diagram « AIR CONDITIONING BELT / AIR CONDITIONING COMPRESSOR BRACKET » for 911 74-77 + 912E • 1976 • 2.7S • Coupe • Manual Gearbox, 4 Speed

22 parts

1
Hex Nut, 8mm M8 Yellow Zinc Finish.
2 versions Ship Today (before 5:00pm)

From $1.27
Choose ›

2 Versions available for this part

Shown 2× on this diagram

Choose a version Part details →
2
#4 Bearing Set Screw Washer9mm X 14mm Zinc For 356 And 912.
2 versions Ship Today (before 5:00pm)

From $0.41
Choose ›

2 Versions available for this part

Shown 6× on this diagram

Choose a version Part details →
3
NARROW V-BELT
2 versions Usually ships in 4 business days

From $12.26
Choose ›

2 Versions available for this part

Choose a version Part details →
4
HEXAGON-HEAD BOLT
A 900 075 085 02 Stoddard Usually ships in 6 business days

$1.55

8 X 20 MM

Recommended quantity: 5

Shown 4× on this diagram

Part details →
5
8mm X 16mm Washer Black For Fuel Tank Clamps 911 1974-89 930 914
2 versions Ship Today (before 5:00pm)

From $0.35
Choose ›

2 Versions available for this part

Shown 5× on this diagram

Choose a version Part details →
6
Spring Washer (10x18mm)
N 012 242 3 Genuine Ship Today (before 5:00pm)

$1.73

Recommended quantity: 4

Shown 3× on this diagram

Part details →
7
SCREW
999 075 021 02 Genuine Usually ships in 4 business days

$19.35

Recommended quantity: 4

Part details →
8
6mm X 18mm Hex Bolt
900 075 014 03 Genuine Ship Today (before 5:00pm)

$3.70

Recommended quantity: 2

Part details →
9

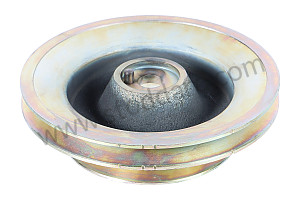

PULLEY
911 102 022 01 Genuine Usually ships in 4 business days

$400.82

Part details →
10
Dowel Pin At Crank Pulley 911 / 912 / 930 964 993 1965-98
N 101 09 00A Genuine Usually ships in 4 business days

$3.96

Part details →
11
ANGLE
930 126 116 00 Genuine Usually ships in 4 business days

$180.00

Part details →
12
6mm X 12mm Spring Washer For Cam Box Cover 911 964 993 1965-1998
2 versions Ship Today (before 5:00pm)

From $0.25
Choose ›

2 Versions available for this part

Choose a version Part details →
13
Crankshaft Pulley Bolt, 911, 914-6. 964 1965-1994
999 093 005 02 Genuine Ship Today (before 5:00pm)

$17.19

Part details →
14
BRACKET
A 911 115 014 03 Stoddard Usually ships in 6 business days

$377.09

Part details →
15
10mm X 19mm Zinc Washer 356 60-65 911 70-73
900 025 008 04 Genuine Ship Today (before 5:00pm)

$1.45

Recommended quantity: 4

Part details →
16
Strut Bracket Fit 911 65-83 And 912 65-69
911 126 124 01 Genuine Ship Today (before 5:00pm)

$24.01

Part details →
17
Bolt 10 X 18 For Muffler Bracket 911 65-74
900 156 006 02 Genuine Usually ships in 4 business days

$23.04

Recommended quantity: 2

Part details →
18
Hex Nut, 10mm
N 101 552 10 Genuine Ship Today (before 5:00pm)

$4.48

Recommended quantity: 2

Part details →
19
Bolt M10x20 356 / 911 1965-85 912 912 944
900 075 517 01 Genuine Ship Today (before 5:00pm)

$3.73

10 x 20 MM

Recommended quantity: 2

Part details →
20
13mm X 23mm SS Washer. 911, 964 914-6.
2 versions Ship Today (before 5:00pm)

From $0.90
Choose ›

2 Versions available for this part

Choose a version Part details →
21
A/C Air Nut 911 1965-94 912 930
964 126 125 20 Genuine Usually ships in 4 business days

$21.33

Part details →
22
BRACKET
911 126 101 03 Genuine Usually ships in 4 business days

$503.64

Part details →
