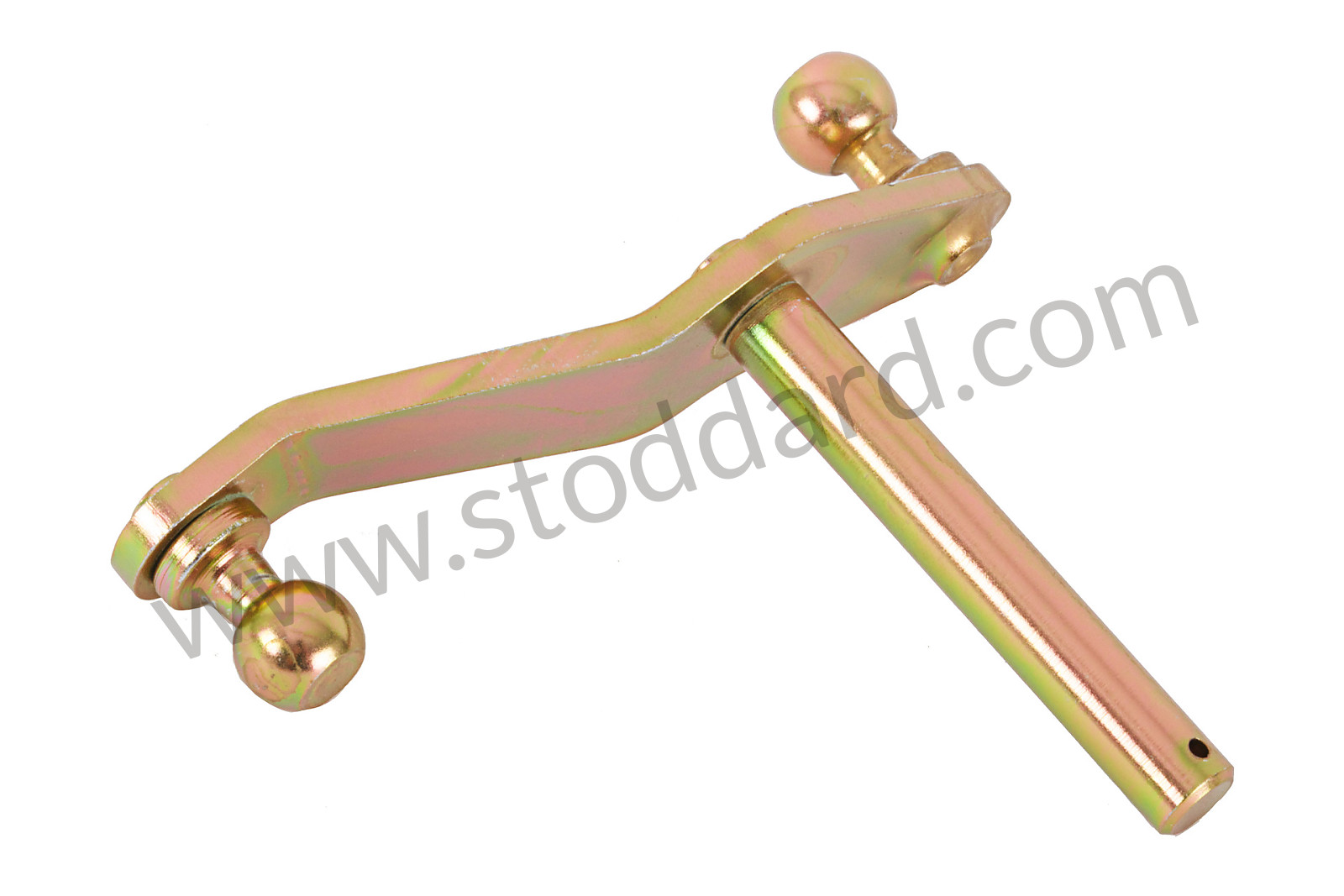

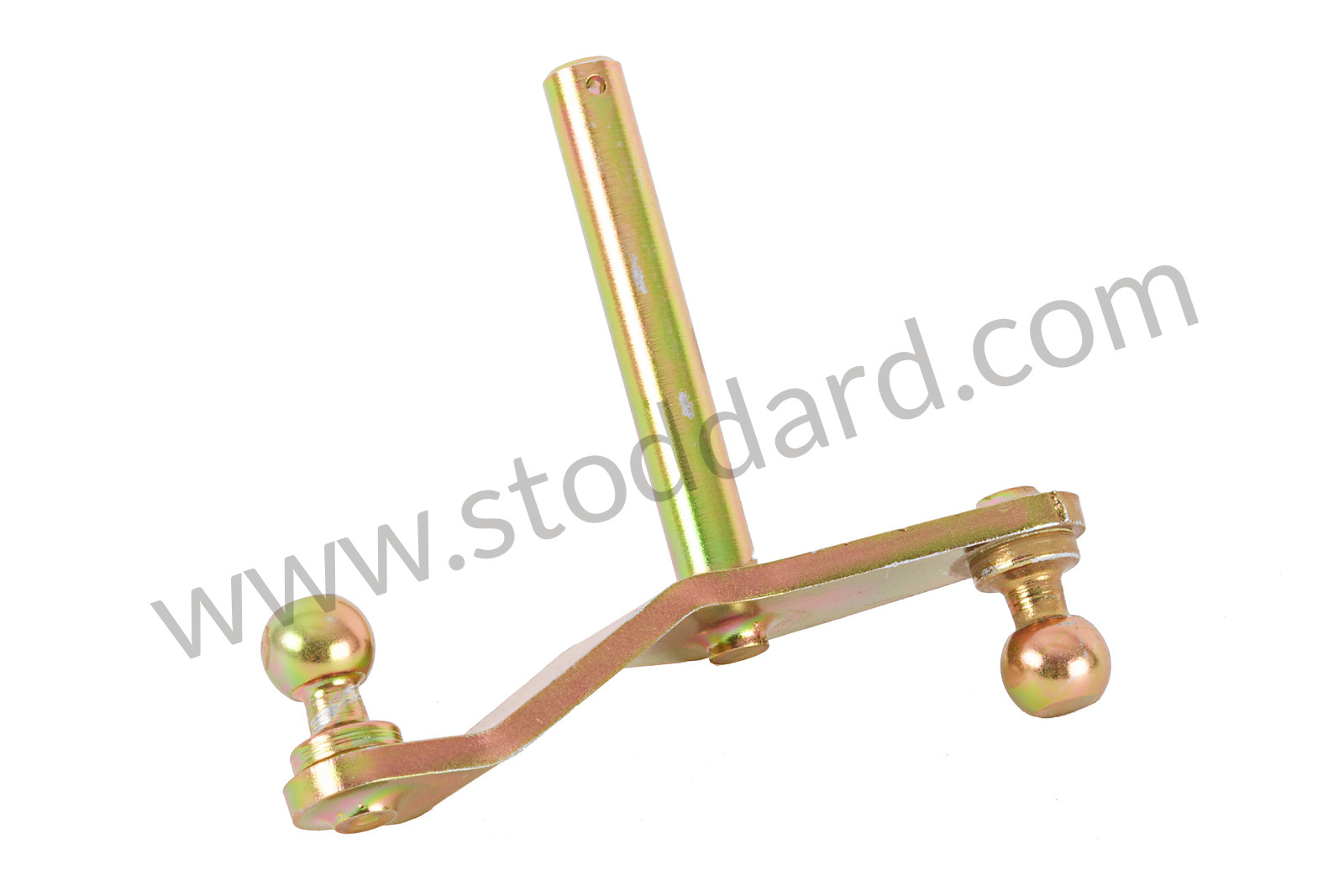

Fan Housing Bell Crank , Zenith 32ndix And Solex 40pii-4. for Porsche
Stoddard price list
$48.75
616 108 071 00
1
0.077 lbs
This bellcrank is on the back of the fan house of all engines, 356B thru 912 engines. The pull rod up from the transmission attaches to the long end; the rod up to the cross shaft is attached to the short end. See Workshop manual, page SF26 for adjustment instructions.
Length of arm for rod from transmission: 50 mm
Length of arm to carburetor cross shaft: 35 mm
Length of arm for rod from transmission: 50 mm
Length of arm to carburetor cross shaft: 35 mm
Quantity :
Availability : Not currently available
Compatible models
